— 30 —
18. Remove the front case assy.
Note: Be sure to attach the strap.
Note: Confirm the screws are not loose.

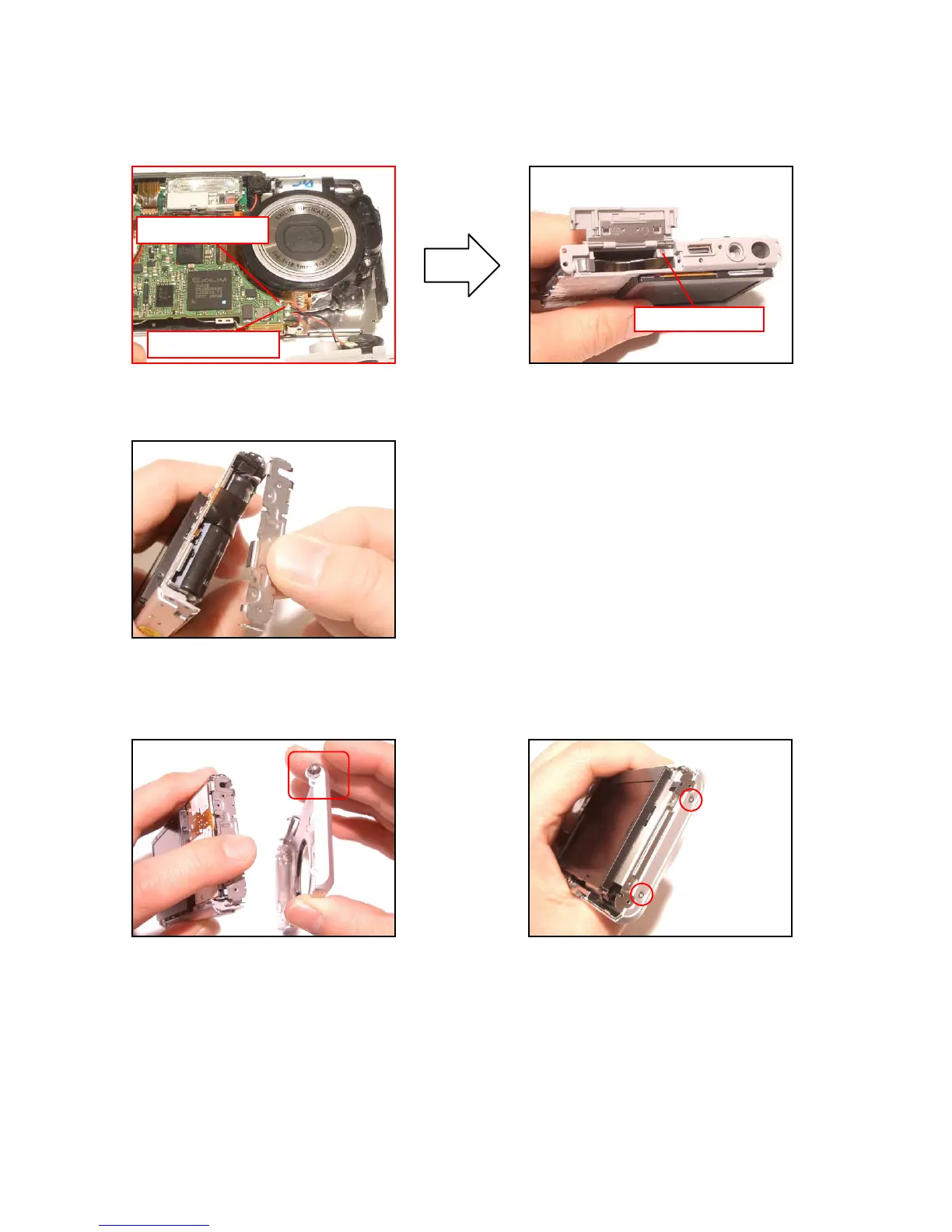

■ Assembling the battery case
15. Solder two lead wires.
16. Attach the battery case and fix it with a screw.
Screws (S4)
■ Assembling the rear case and the front case
17. Install the bracket.
lead wire (red)
lead wire (black)
To Next Page
