— 6 —
5.

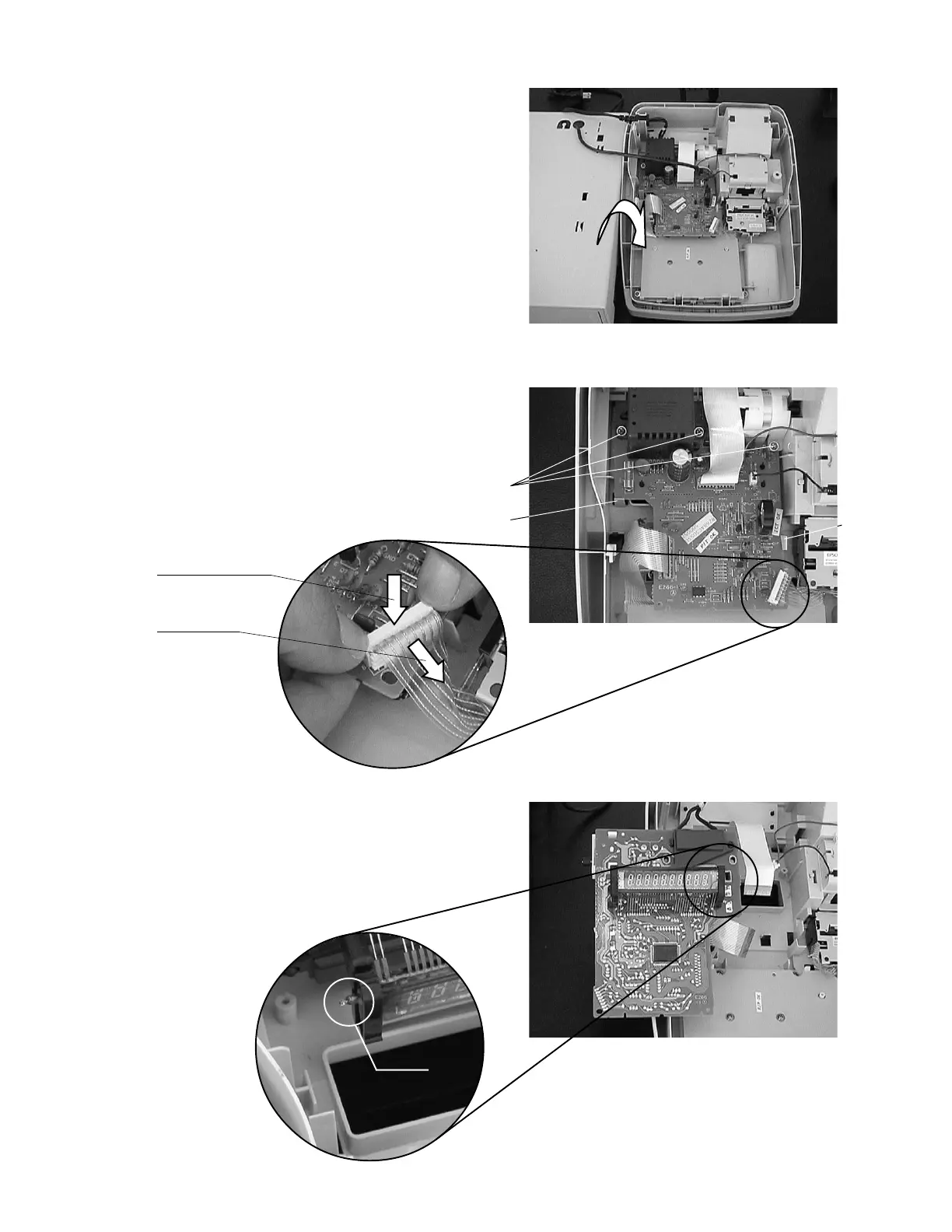

Open upper case by lifting it from the left side.
6.
Remove all the cables on Main PCB and remove 3
screws.
Remove 3 screws.
Hook
Hook
Push the connector
.
Pull the wires.
7.
Lift up the Main PCB to the right side to avoid the
destruction of Display tube.
Be careful not to damage the point A.
Point A
