— 16 —
2.
Switch status test

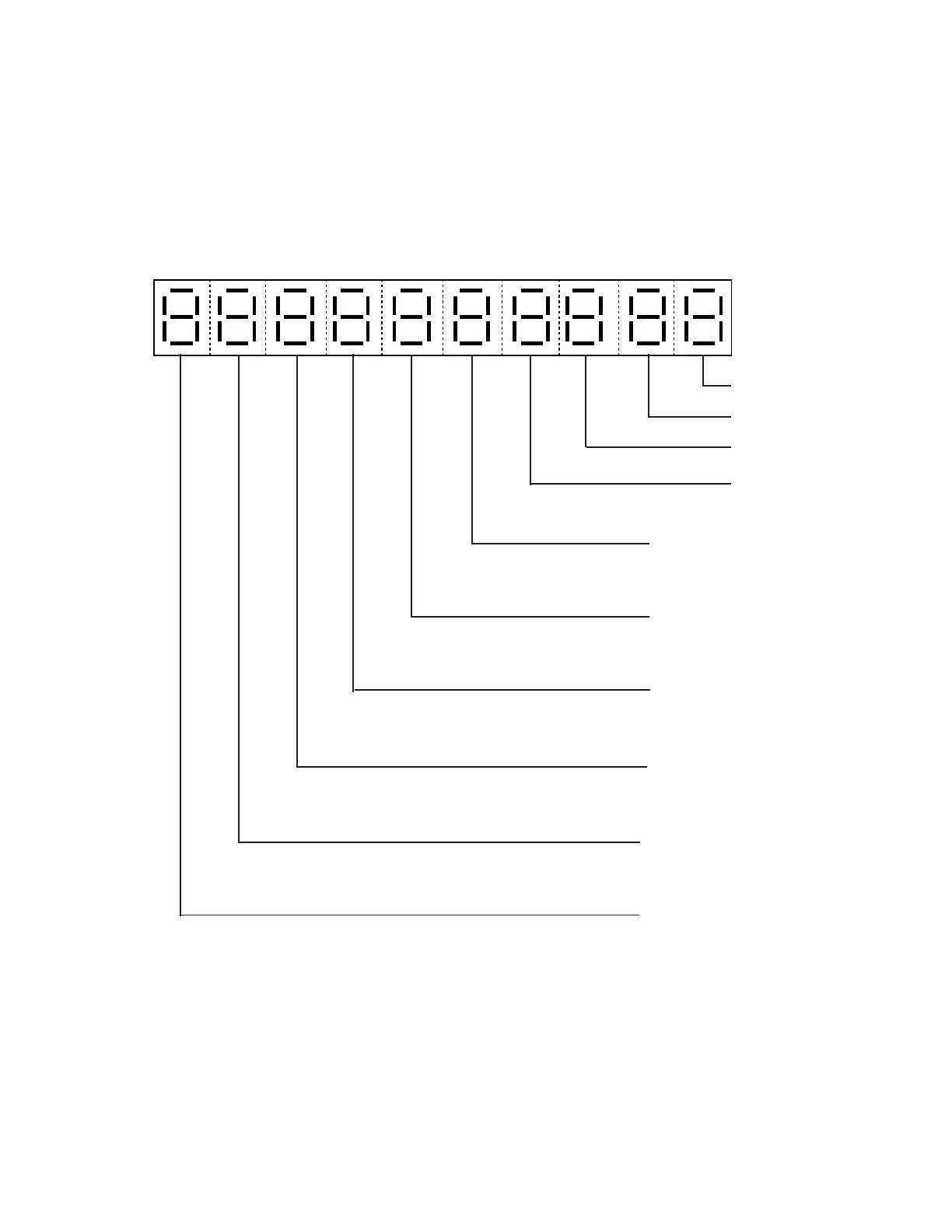

Press “C” button, the switch status is appeared on the display.
No display
No display
[DISPLA
Y]
No display
No display
Low battery
L:
Low battery
Nil:
Battery OK
PAD2 status
1: Short
0: Open
PAD1 status
1: Short
0: Open
Always: 1
Drawer sensor
1: Close
0: Open
Mode switch status
1: PGM
2: RF
3: REG
4: CAL
5: X
6: Z
No display: OFF
17
19
Table of Contents
Service Manual
2
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 Initialize (Mac) Operation
4
3 Block Diagram
5
Pcb Connection
5
Block Diagram
6
4 Disassembly
7
5 Circuit Explanation
9
Power Supply Circuit
9
CPU (Upd78052Gc-159-3B9)
10
Display Controller (Upd16312Gb-3B4)
12
Initilize IC (Reset Circuit)
13
Power down Detection Circuit (PWD)
13
Address Latch Circuit
13
RAM / ROM Bank Selection Circuit
14
Head Drive Circuit for Printer
15
Power Supply Circuit for Display
16
6 Diagnostic Operation
17
To Start the Diagnostic Program
17
Check Item
17
Operation of each Test
17
To Exit the Diagnostic Test
22
7 Error Code List
23
Operation Error Code
23
System Lock Code
24
8 IC Data
25
9 Pcb Layout
28
10 Circuit Diagram
29
Model : Pcr-365A
44
11 Parts List
44
Exploded View
45
Main PCB Block E248-1 Ass'y
47
Button Block
48
Customer Display Block E248-E2-2
48
Main Display Block E248-E2-1
48
Power Supply Block
49
Lower Case Block
50
Others
50
Printer Block
50
Upper Case Block
50
Cash Drawer (DL-1324)
51
Printer (M-190G)
53
