Connecting an audio or
musical instrument amplifier
Connecting to an audio or musical instrument
amplifier provides even clearer, more powerful sound
through external speakers.
Playing Output from External
Equipment through the Piano’s
Speakers 1
R jack input sounds through the piano’s right speaker,
while L/MONO jack input sounds through the left
speaker. Connecting to the L/MONO jack only causes
the same output to be produced from both speakers.
It is up to you to purchase connecting cables that are
compatible with the equipment you are connecting.
Connecting to Audio Equipment 2
Use commercially available cables to connect the
external audio equipment to the piano’s LINE OUT
jacks as shown in Figure 2. R jack output is right
channel sound, while L/MONO jack output is left
channel sound. It is up to you to purchase connecting
cables like the ones shown in the illustration for
connection of audio equipment. Normally in this
configuration you must set the audio equipment’s
input selector to the setting that specifies the terminal
(such as AUX IN) to which the piano is connected.
Use the piano’s VOLUME knob to adjust the volume
level.
Connecting to a Musical Instrument
Amplifier 3
Use commercially available cables to connect the
amplifier to the piano’s LINE OUT jacks as shown in
Figure 3. R jack output is right channel sound, while
L/MONO jack output is left channel sound.
Connecting to the L/MONO jack only outputs a
mixture of both channels. It is up to you to purchase
connecting cable like the one shown in the illustration
for connection of the amplifier. Use the piano’s
VOLUME knob to adjust the volume level.
Accessories and Options
Use only the accessories and options specified for this
digital piano. Use of non-authorized items creates the
danger of fire, electric shock, and personal injury.

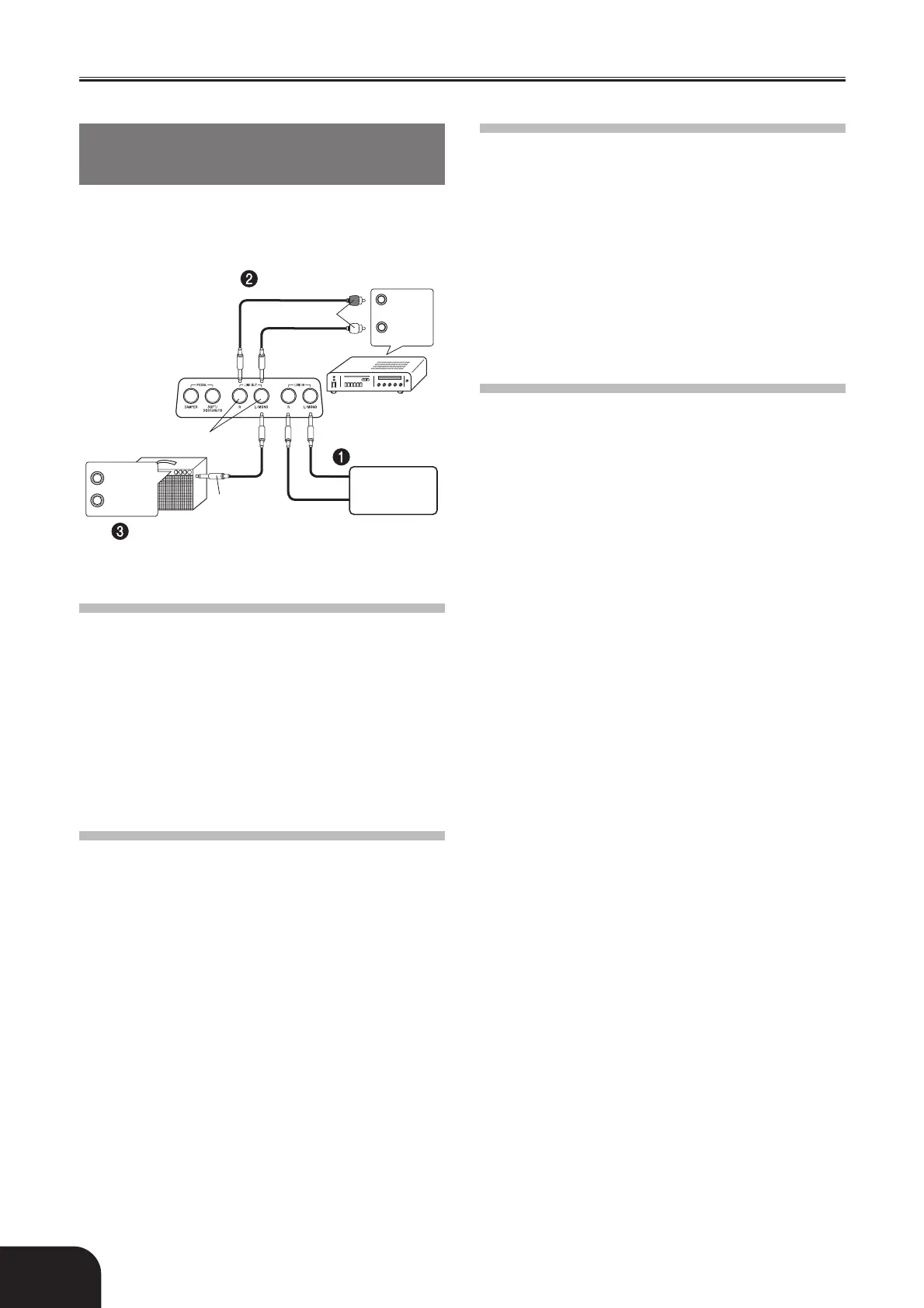

Audio amplifier AUX IN, etc.
PIN plugs
RIGHT
(Red)
LEFT
(White)
Guitar amplifier,
keyboard amplifier, etc.
INPUT 1
INPUT 2
Standard jacks
Standard plug
Tape recorder,
MIDI sound
source
Connections
