Casio PX-330BK - Disassembly Procedures; Main Panel and Wiring Access

– 13 –
DISASSEMBLY
The photos show a prototype. The appearance of the instrument, such as color, may
differ from the actual model.

Removing the main panel

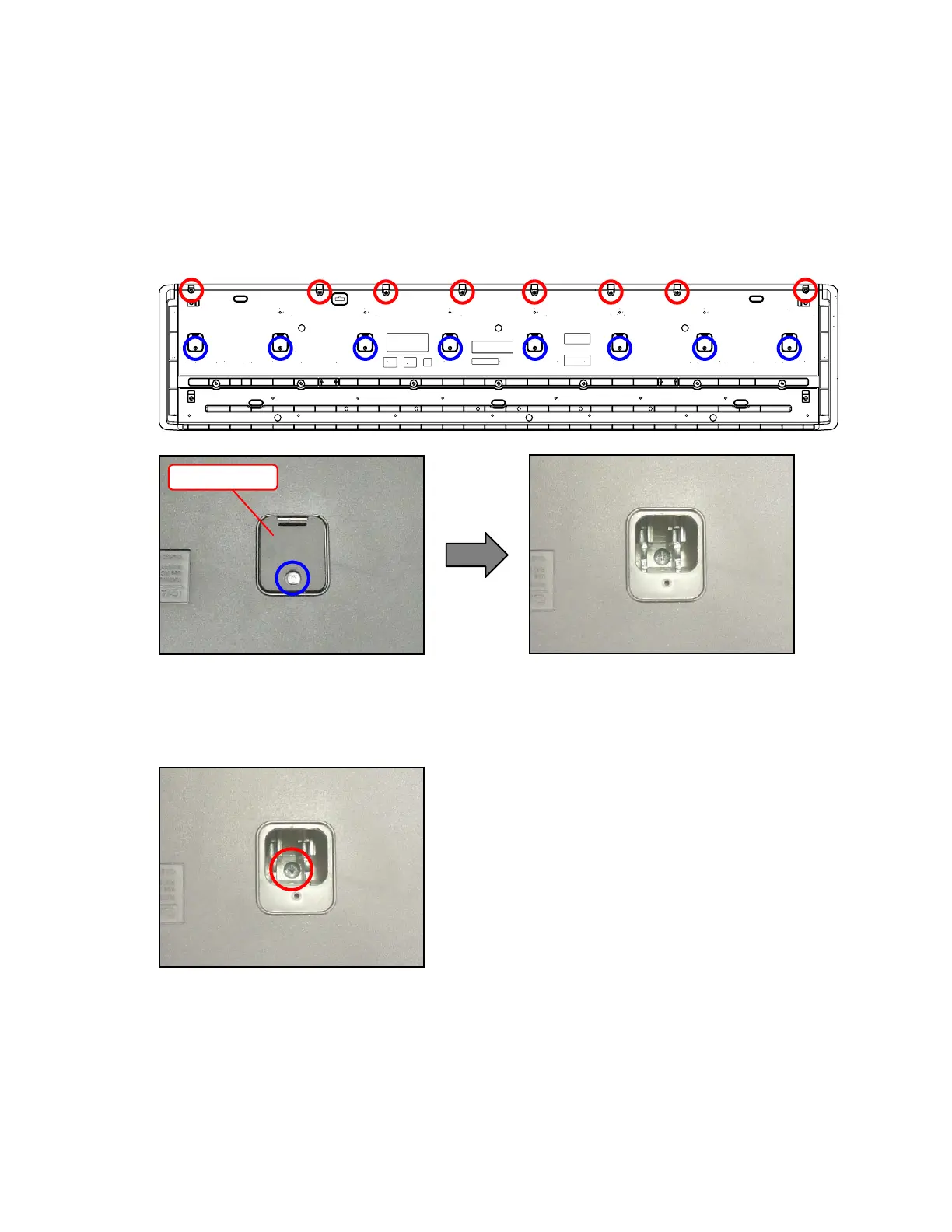

1. Undo 16 screws and remove eight L-COVERs on the bottom surface of the main unit.
2. You will see a screw inside when you remove an L-COVER. Undo and remove the screw through each
opening (eight screws in total).
NOTE: Do not drop the screws inside the main unit.
NOTE: Do not touch the hammer with the screwdriver while loosening the screws.
L-COVER
