Casio PX-330BK - Page 65

– 63 –

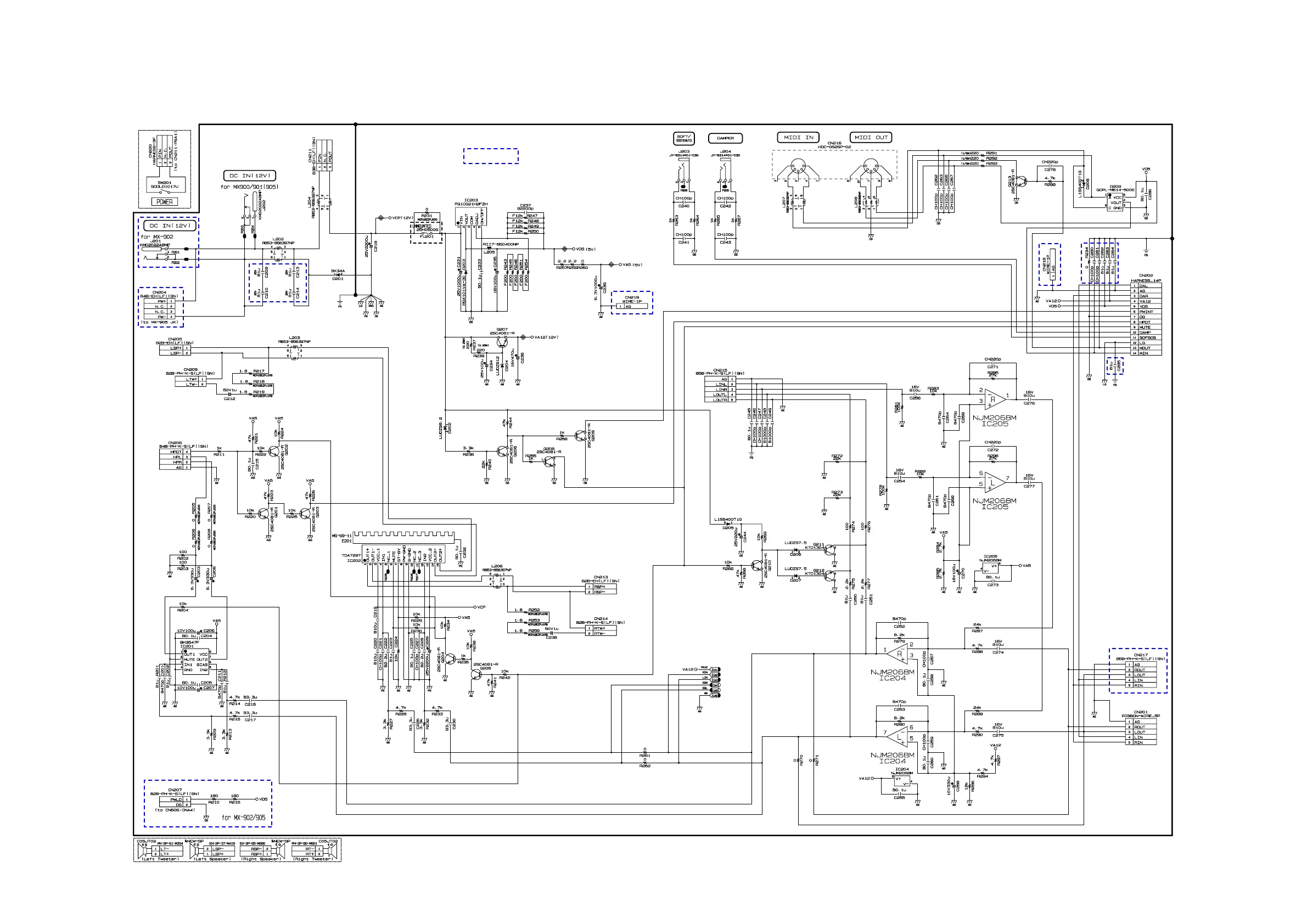

Sub PCB M900-PSA1 (1/2)
(to POWER SWITCH)
PEDAL
MIDI
(to MDA1/
CN3)
(to CNA3/CN3)
(to JKA1/CN501)
(to RIGHT SPEAKER)
(to RIGHT TWEETER)
(to LEFT SPEAKER)
(to LEFT TWEETER)
(to HPA1/CN601)
: Not used
