— 8 —
DISASSEMBL
Y

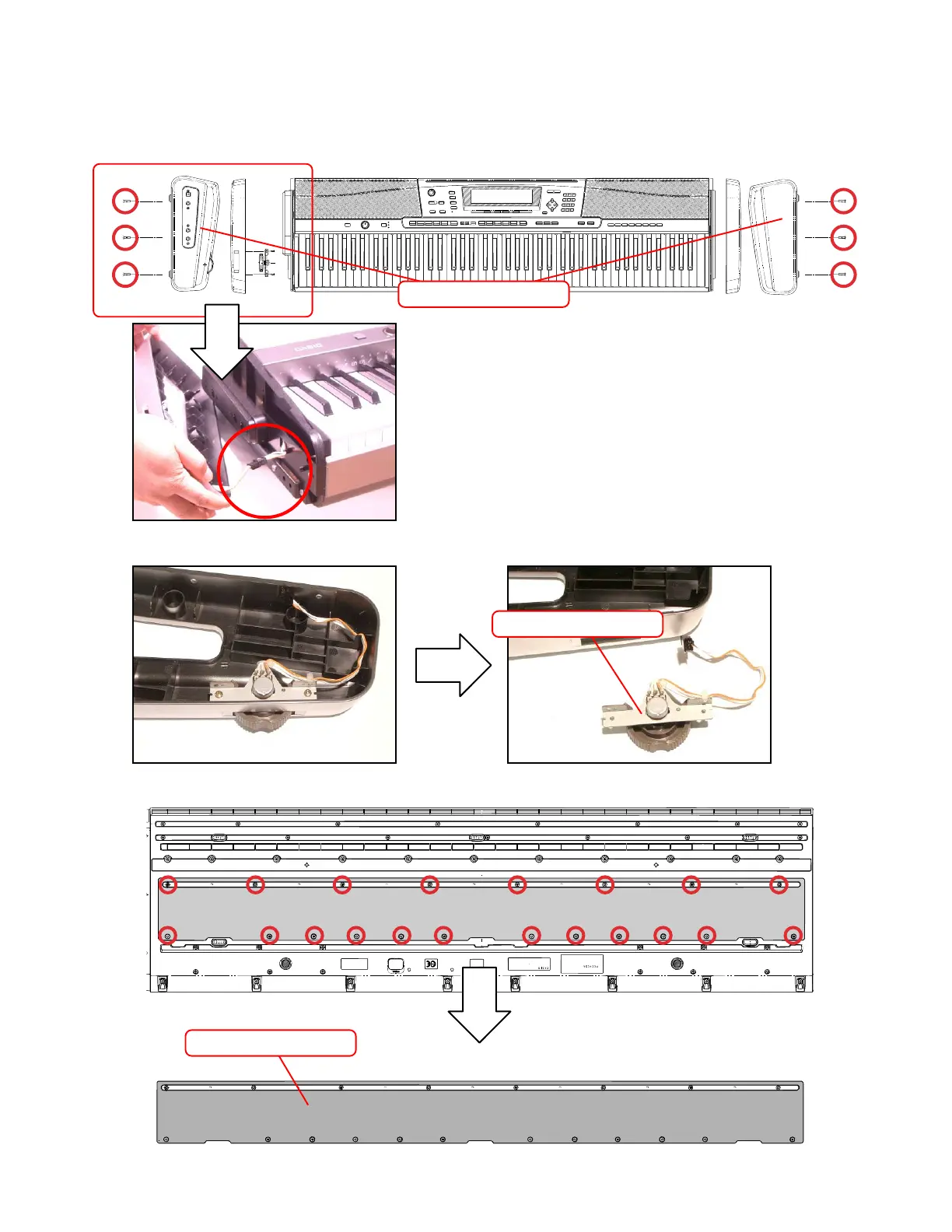

1.
Remove the 6 screws and take of
f the left and right outer side covers.
2.
Remove 2 screws and the BEND wheel.
3.
Remove 20 screws and the Lower cover
.
BEND wheel
* The left side cover is connected by a cable.
Side covers
Lower cover
9
11
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
5
Circuit Description
6
Printed Circuit Board
8
Disassembly
10
Diagnostic Program
19
Exploded View
22
Parts List
23
Schematic Diagrams
27
