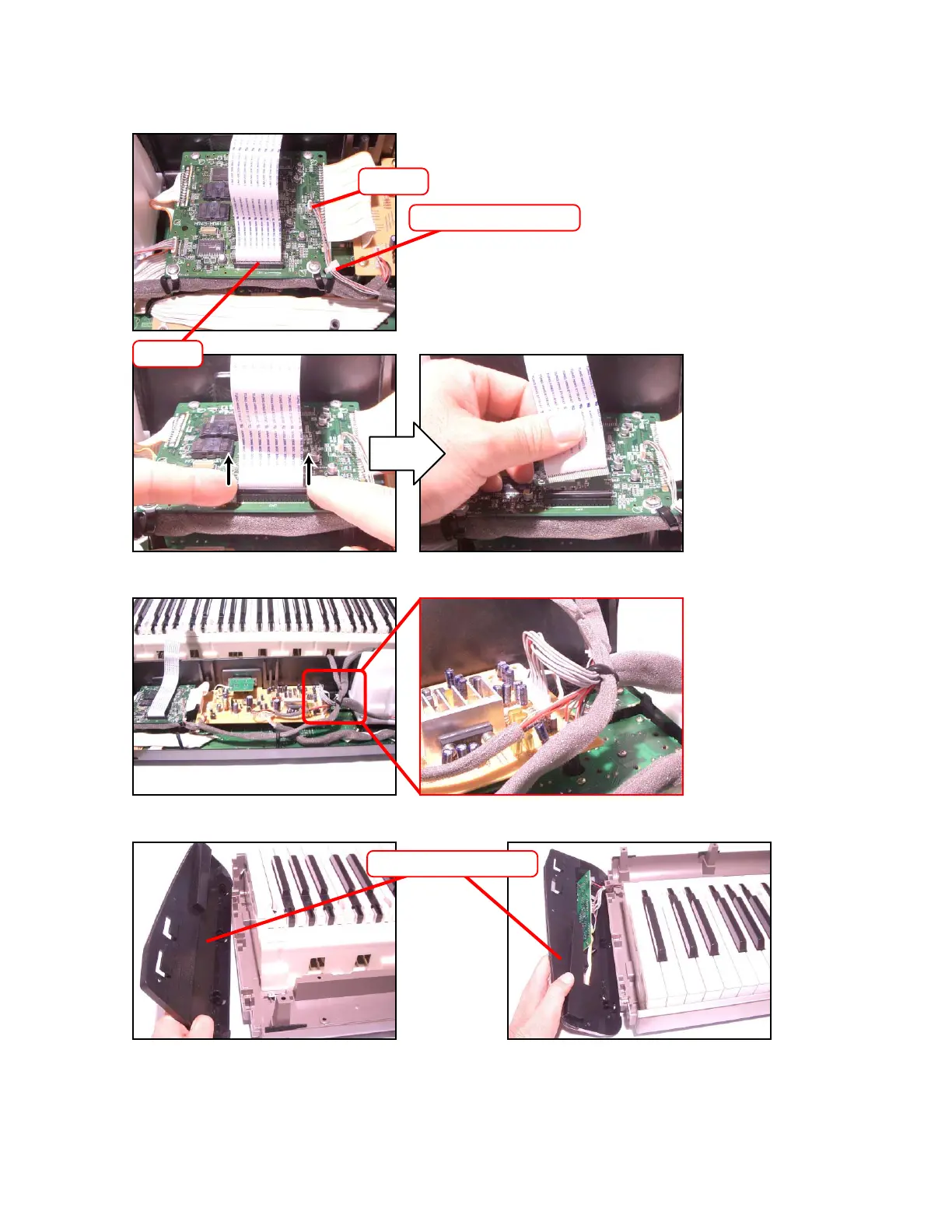

— 10 —
CN7
CN3
*
Attach a new retaining band when assembling.
Retaining band
*
Bundle the wires when assembling.
10.
Remove the inside side cases.
Side cases
8.
Cut the retaining band and remove the cable on the M421-MDA1 PWB.
9.
Unlock connector CN7 on the M421-MDA1 PWB and disconnect the FPC.
11
13
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
5
Circuit Description
6
Printed Circuit Board
8
Disassembly
10
Diagnostic Program
19
Exploded View
22
Parts List
23
Schematic Diagrams
27
5
Based on 1 rating
