Casio PX-700

— 8 —

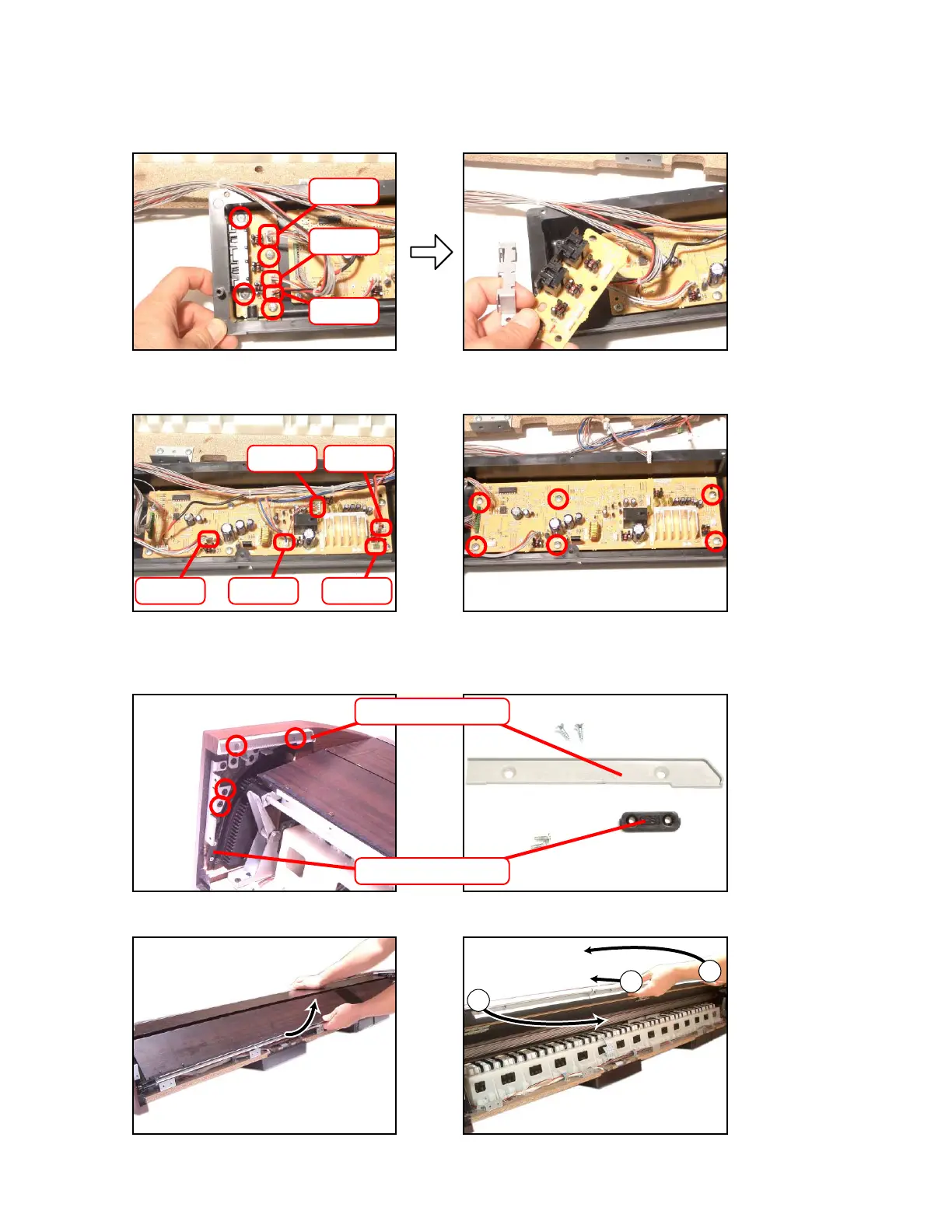

10. Remove 3 connectors and 4 screws.
11. Remove the console PCB (M406-CNA4).
12. Remove 5 connectors and 6 screws.
13. Remove the sub PCB (M404-PSA1).
CN405
CN407
CN408
CN206CN212
CN207 CN203
CN201
Removing the key cover.
14. Remove 2 screws and then both sides of the stoppers.
15. Remove 2 screws and then both sides of the TOP-DECORs.
TOP-DECOR
Stopper
16. Remove the key cover.
1
2
2
