DISASSEMBLY
■
To remove main body and speaker box.
*The screws come with the cap.
*Do not forget to attach the screw caps when assembling.

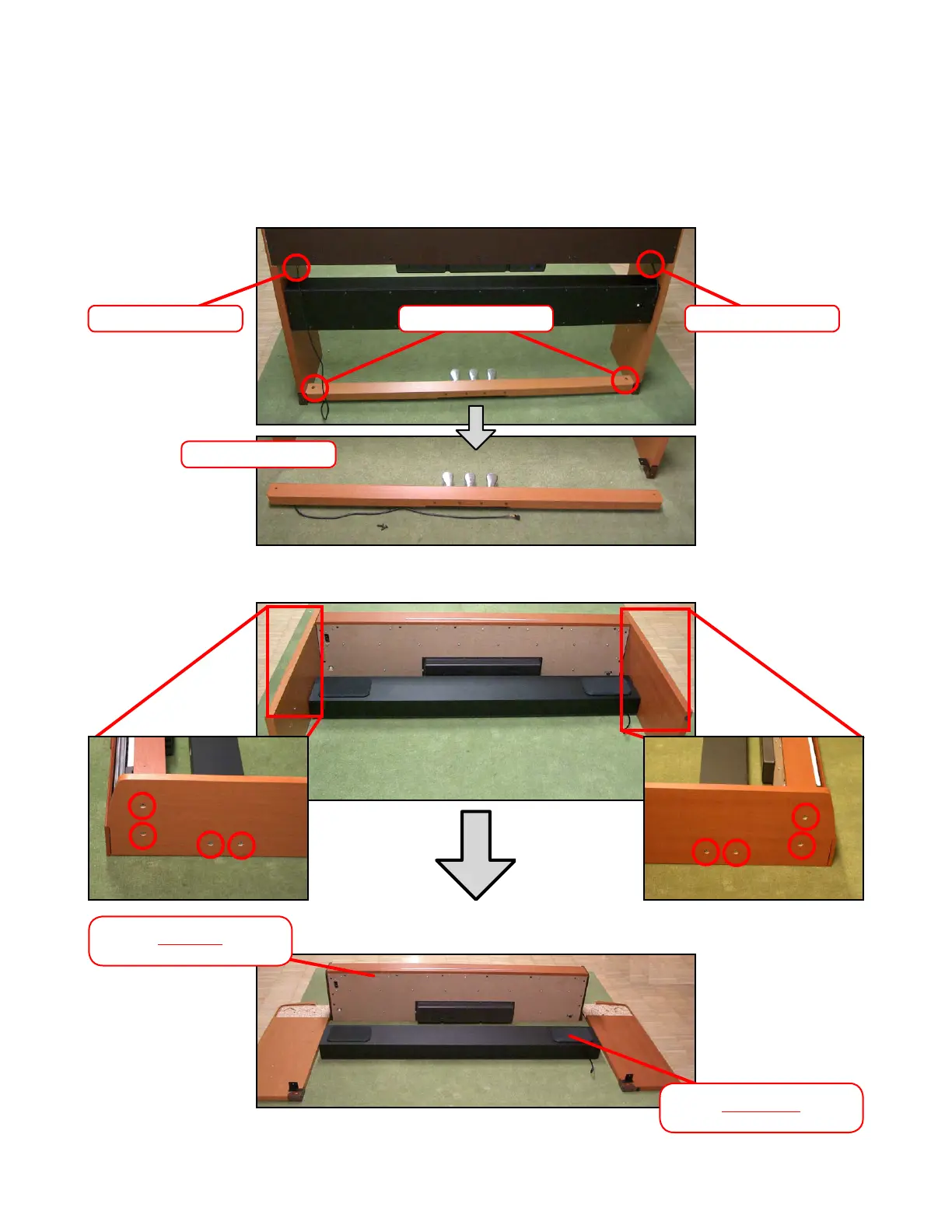

1. Remove the Connector and Pedal cord.
2. Remove 2 screws and then the Pedal unit
3. To damage neither the floor nor the main body, the main body is put on the mat or the blanket, etc.
4. Remove 8 screws and take off the left and right outer side covers.
ConnectorPedal cord Screws
Pedal unit
Main body
Speaker box
To Next Page
