– 11 –

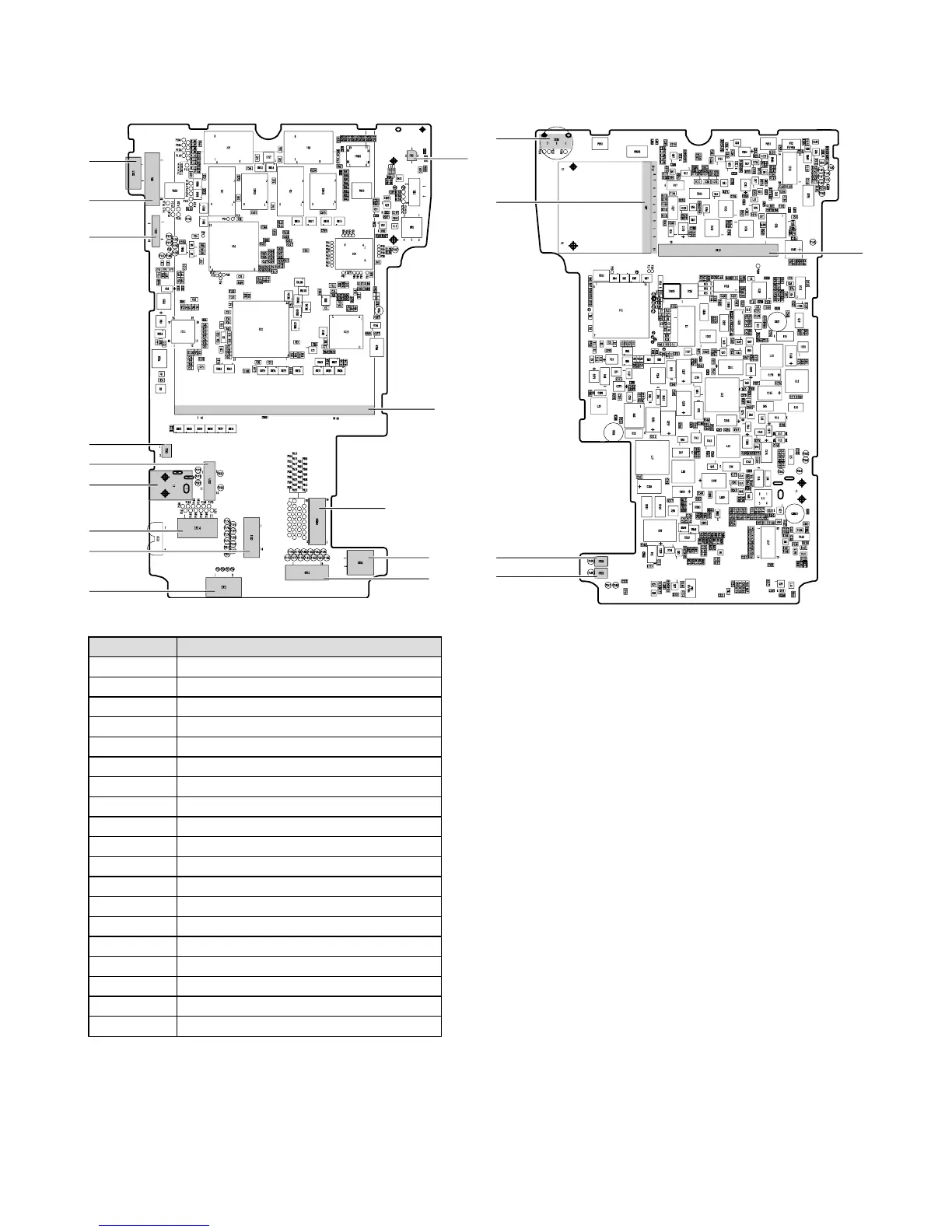

3-3. MAIN PCB VIEW
Symbol Description
CN2 ToBluetoothAntenna
CN3 FromTouchPanel
CN6 To2DScanner
CN7 SDCardSlot
CN11 FromPWPCB
CN12 To14pinI/F
CN13 To8pinI/F
CN14 ToMCR
CN15 FromTrigger,PowerFPC
CN16 FromKEYPCB
CN19 ToPrinter
CN20 ToPaperSensor
CN22 ToBackupbattery
CN24 ToSupperCapacitor
CN28 TobatteryTerminal(Red)
CN29 TobatteryTerminal(White)
CN800 ToLCD
CN801 PCMCIA SLOT
J1 DCJack
CN20
CN7
CN19
CN28
CN29
CN6
CN11
CN22
CN14
CN12
CN3
CN15
J1
CN13
CN2
CN801
CN24
CN16
CN800
