— 11 —
■ POWER UNIT

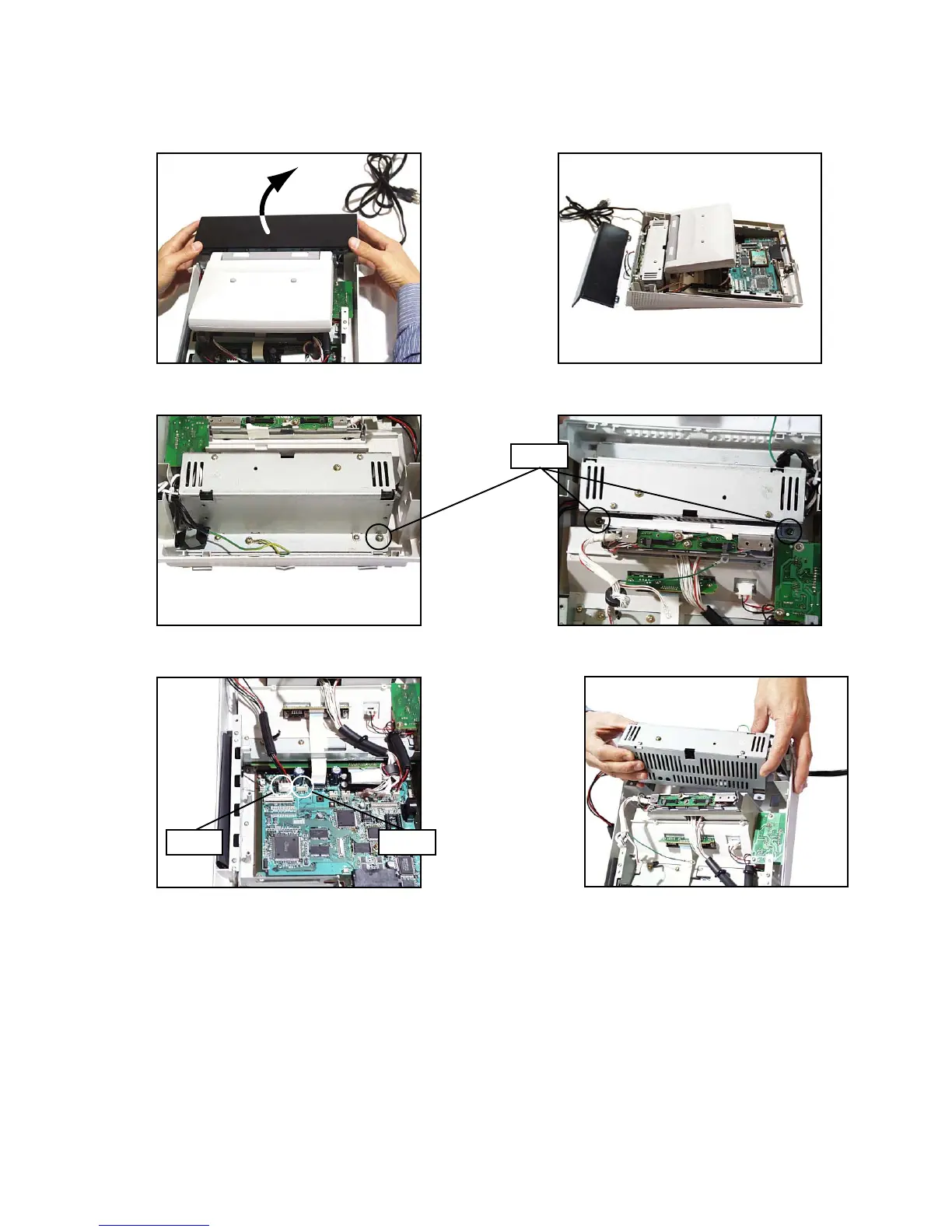

1. Remove the upper cover as shown in steps 1 to 3 of page 9.
2. Remove the rear cover.
3. Remove the three screws for the power unit.
4. Remove the two connectors (CN14, CN15) and the power unit.
Screws
CN14 CN15
