[ 24 ] COM (RS232C) Batch Test
[Function]
Performs a loop back batch test on RS232C port.
When performing this test, attach the loop back connecters to all COM ports.
Please see below for how to wire.
[Operation]
Operation : 4 0 ST
Baud rate: COM1: 115 kbps, COM2-6: 19.2 kbps
Number of test: once (fixed)
[LCD]
COM BATCH 40
.
.
.
END 40
Refer to the previous paragraph "COM Test."
T x D
R x D
C T S
R T
S
D TR
DSR
C D
C I
T x D
R x D
C T
S
R T
S
D TR
DSR
COM1 COM2~COM6
∗ ∗
∗
∗
: output “1” � “0” from the output terminal and checks the input terminal.
∗

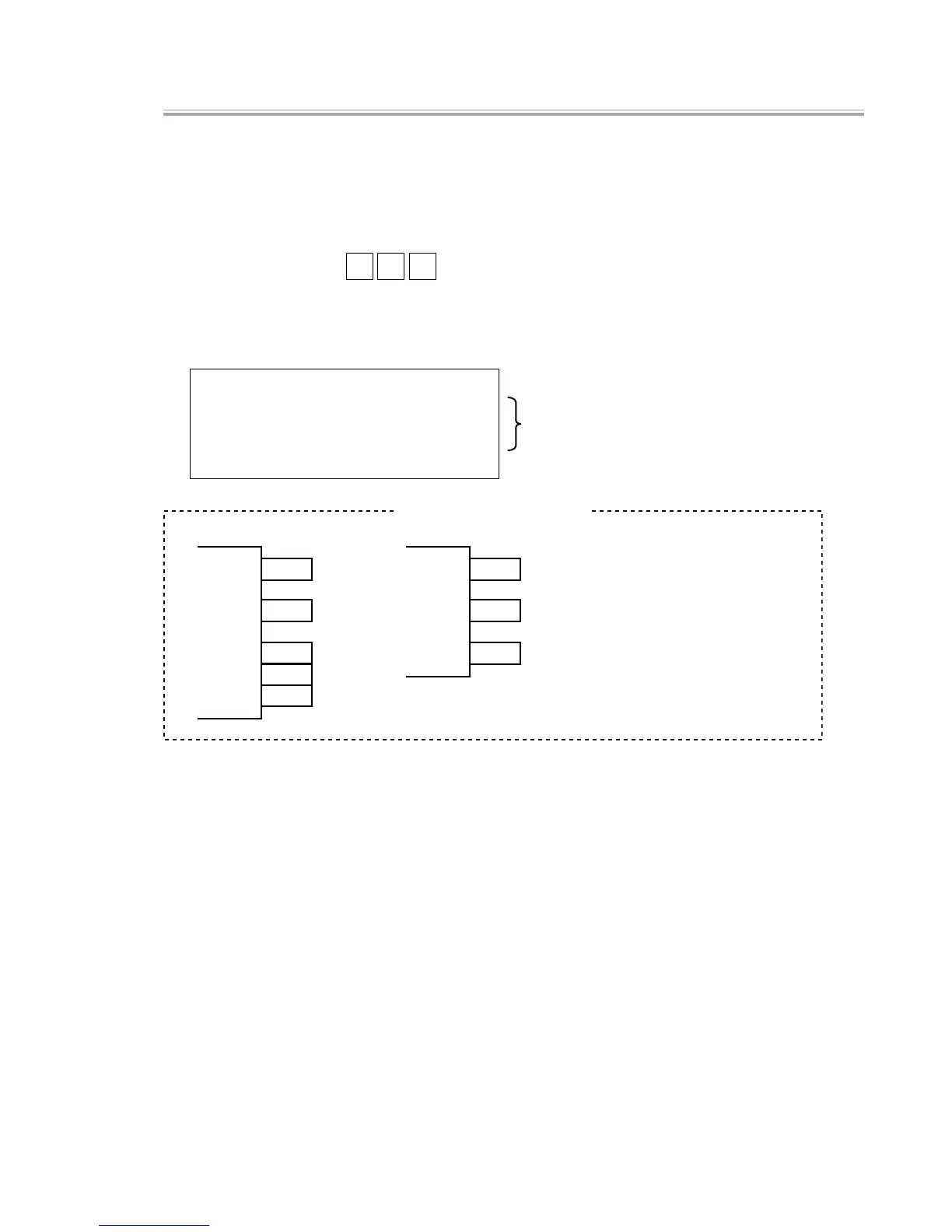

Figure : RS232C port connection
