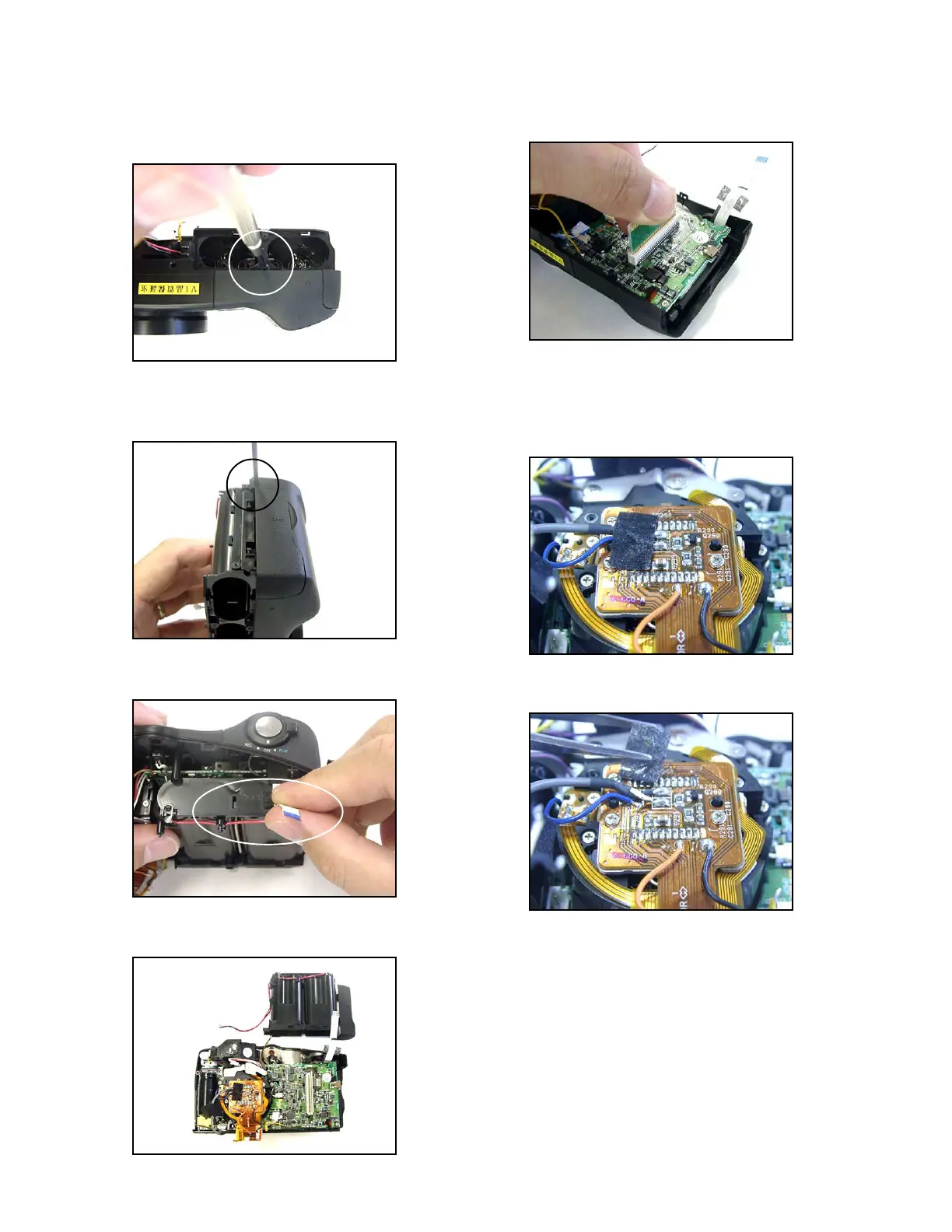

26. Remove one screw (BT3 panhead 1.4 x 3.5 Black)
from Battery frame.
27. Remove one screw (BT3 flathead 1.7 x 4.0 Black)
from side body.
28. Peel the cloth tape that affix the cable.
29. Remove Battery Frame.
30. Displace BB PCB.
31-1. Peel cloth tape from CCD block.
Caution:
When you assemble, set the lead wires and cloth
tape as shown on the figure below.
31-2. After the cloth tape is peeled off.
