Casio QV-3500EX Service Manual & Parts Catalogue

— 36 —

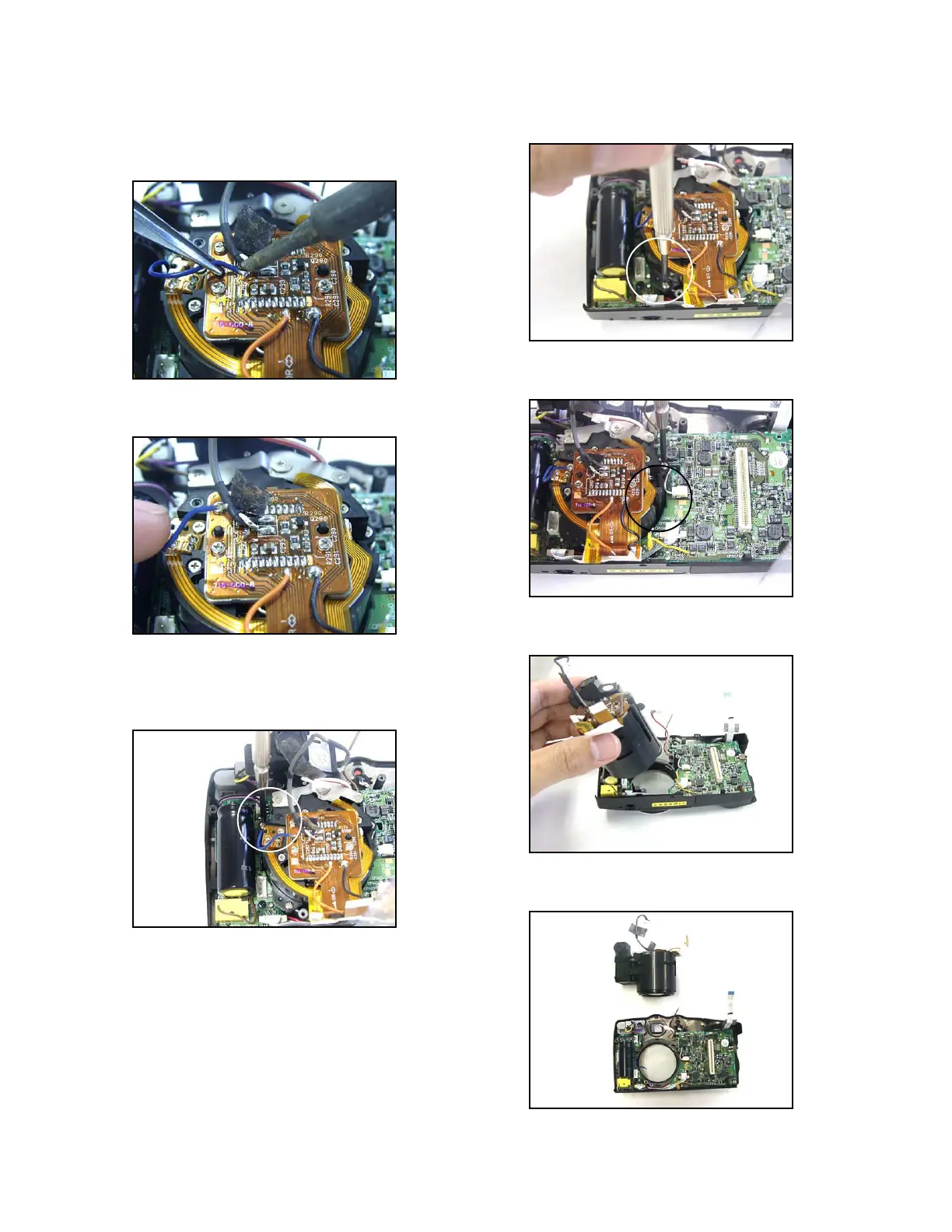

32-1. Disconnect the lead wire from CCD PCB.
Caution:
Leave the other wires.
32-2. After the lead wire is removed.
33-1. Remove three screws (BT3 panhead 1.7 x 5.0 Ni)
which affix CL unit.
First screw
33-2. Second screw
33-3. Third screw
34. Remove CL unit.
35. After removal of CL unit.
