Casio QV-3500EX Service Manual & Parts Catalogue

— 37 —

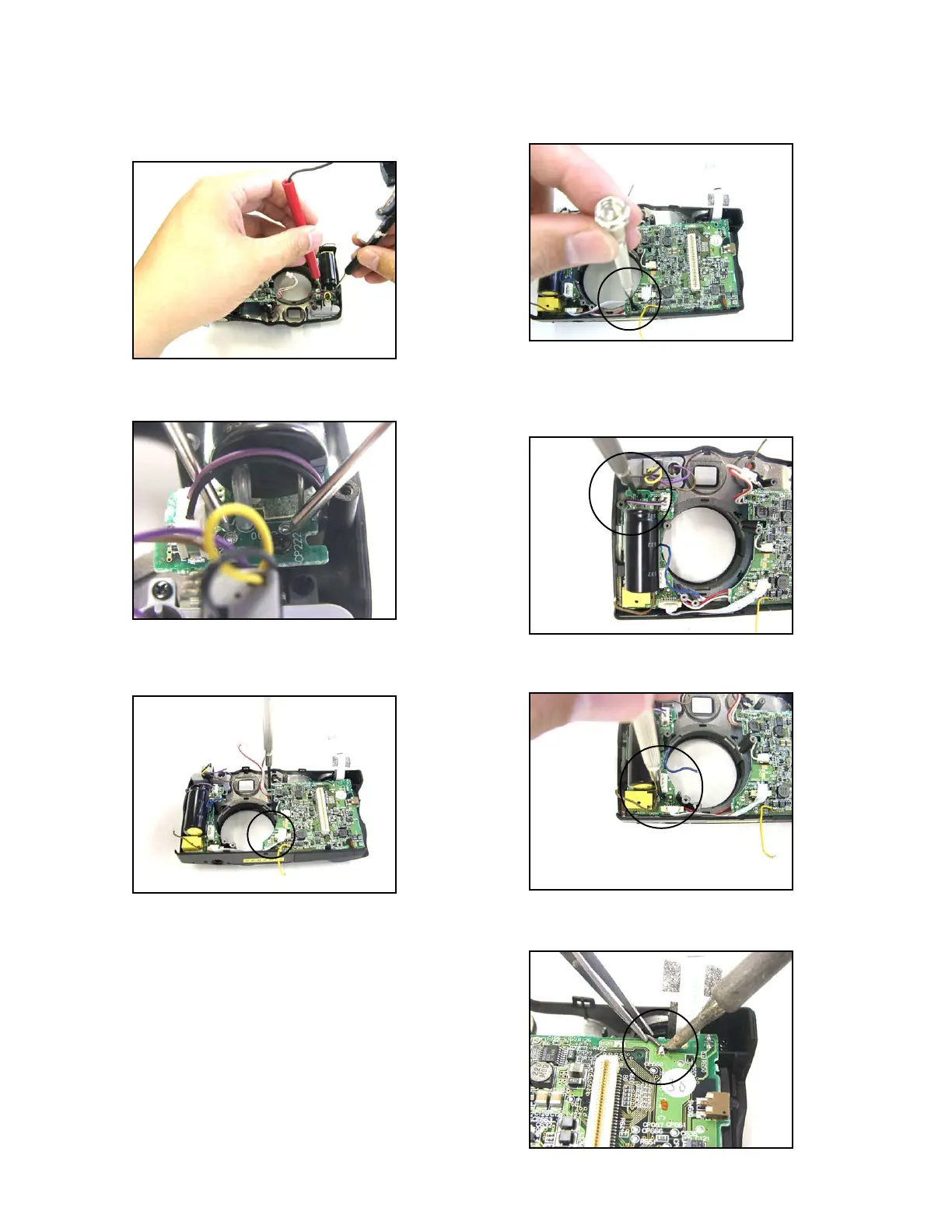

36-1. Discharge the capacitor for the flash via 1.5kohm,
5W resistor.
36-2. Connect the discharging jig between negative lead
of the capacitor and check pad CP220.
37-1. Remove two screws (BT3 panhead 1.7 x 3.5
black) affixing PW PCB.
First screw
37-2. Second screw
38-1. Remove two screws (BT3 panhead 1.7 x 3.5
black) from SJ PCB.
First screw
38-2. Second screw
39. Remove the gray lead wire from PW PCB.
