Casio QV-3500EX Service Manual & Parts Catalogue

— 42 —

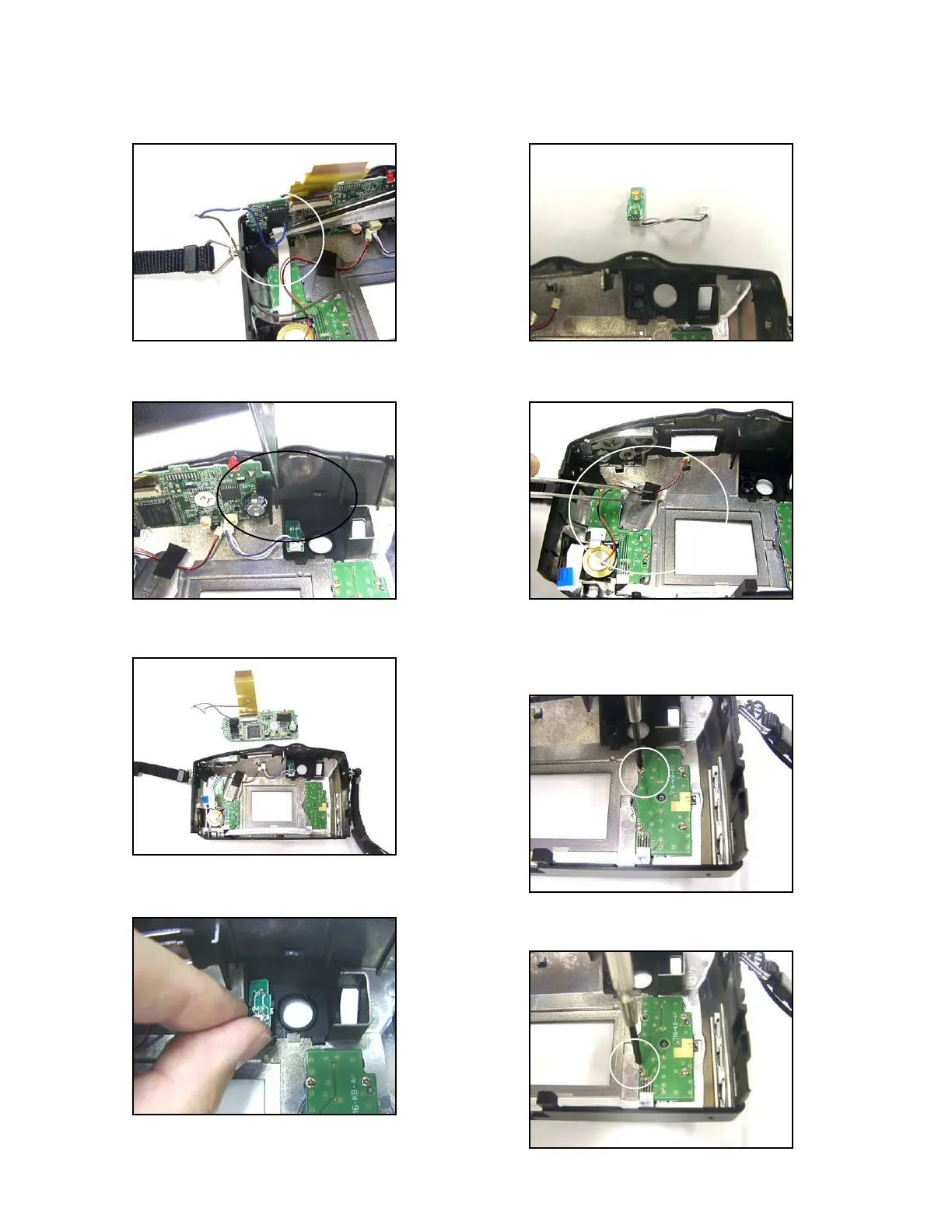

60. Disconnect cable from CN451 on SUB PCB.
61. Peel the cloth tape.
62. Displace SUB PCB.
63-1. Remove LED PCB by unhooking tow hooks.
63-2. LED PCB outer wire
64. Peel cloth tape from buzzer lead wire.
65-1. Remove four screws (BT3 panhead 1.7 x 3 Ni)
which affix KB PCB.
First screw
65-2. Second screw
