Casio QV-3500EX Service Manual & Parts Catalogue

— 41 —

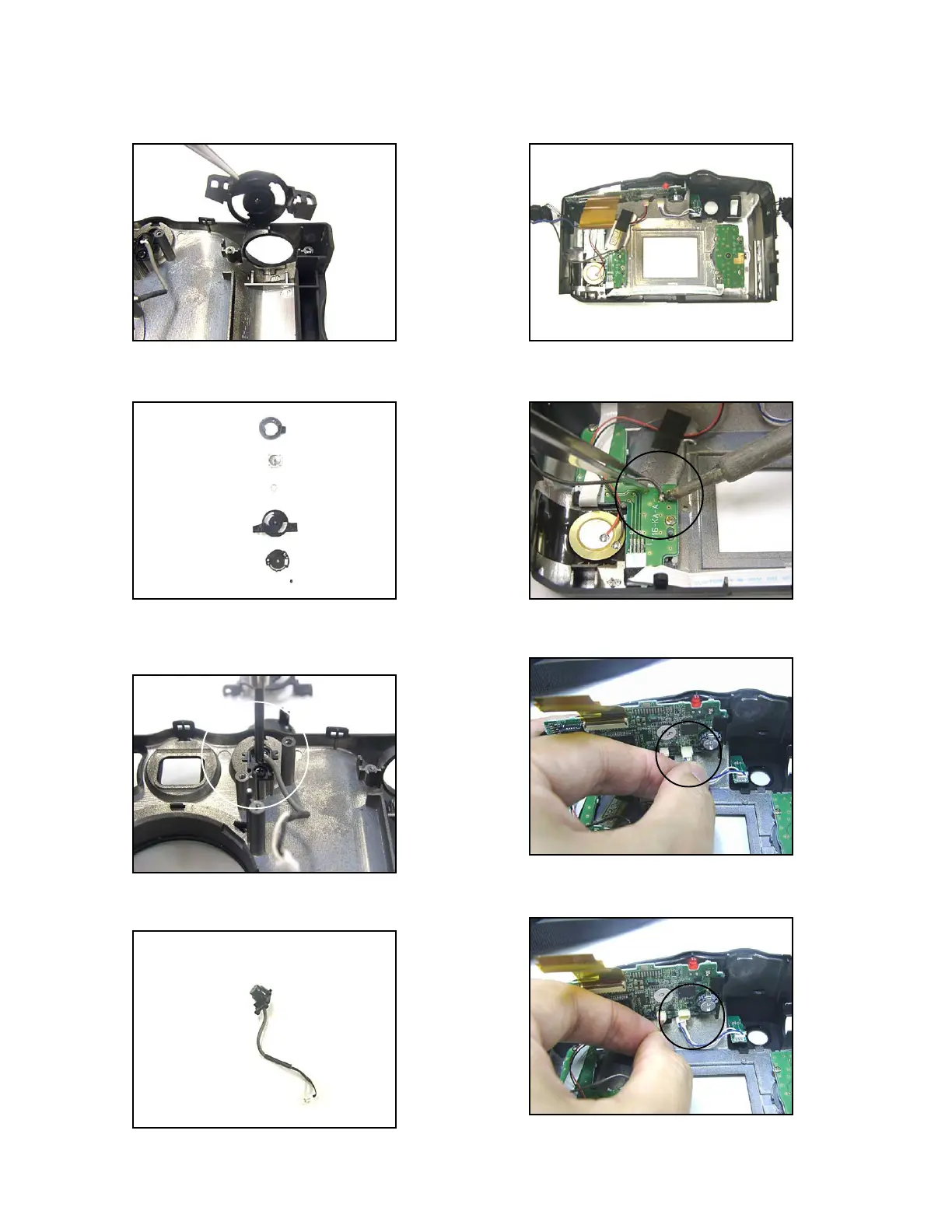

52. Remove shutter base.
53. Shutter block parts
54. Remove one screw (BT3 panhead 1.7 x 3.5 Black)
which affixes ST sensor unit.
55. Remove ST sensor unit.
56. Upper case ass'y
57. Disconnect gray lead wire from KA PCB.
58. Disconnect cable from CN461 on SUB PCB.
59. Disconnect cable from CN460 on SUB PCB.
