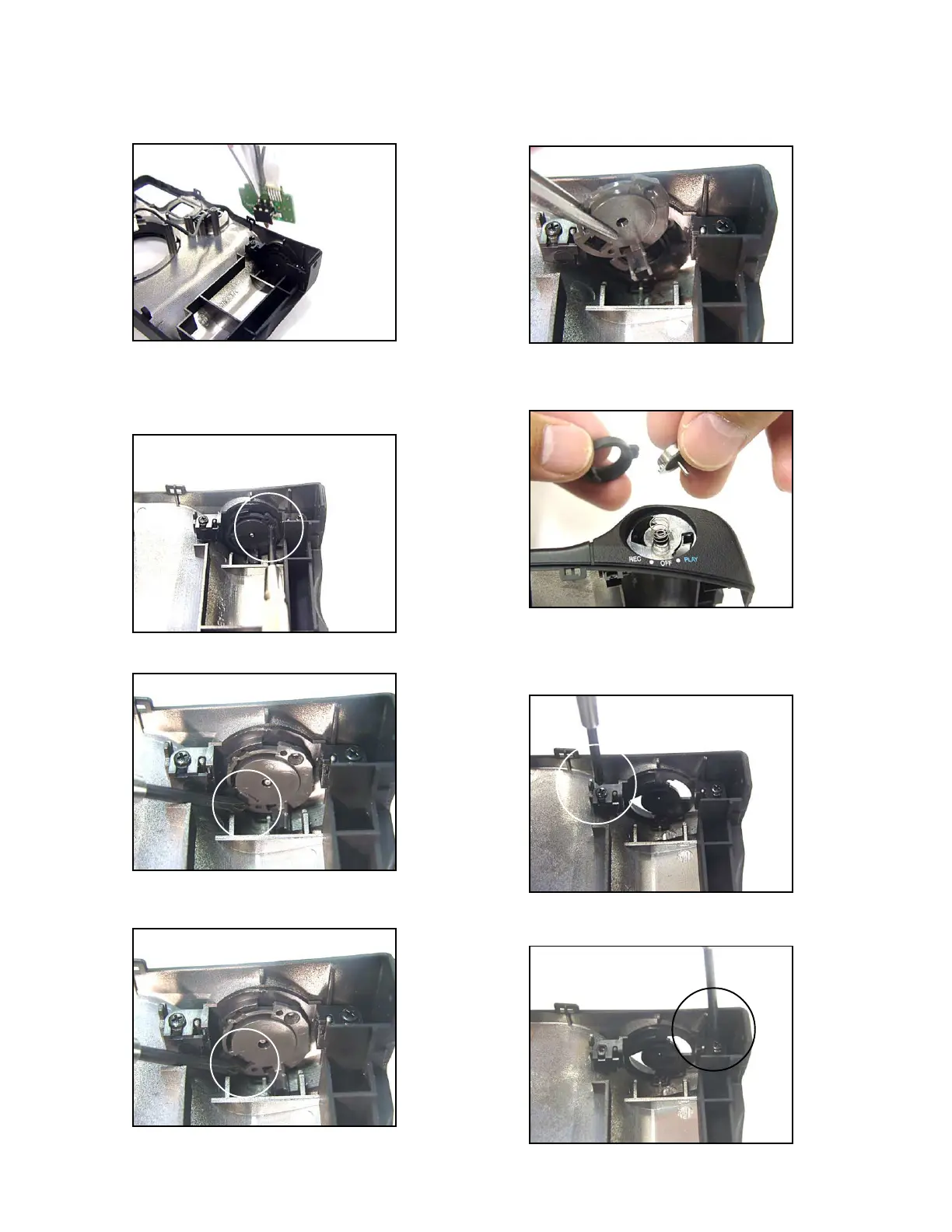

46-2. After removal of SW PCB.
47. Remove one screw (BT3 flathead 1.4 x 4.0 Black)
from Shutter block.
48-1. Remove the hook.
48-2. After removal of the hook.
49. Pull click gear off.
50. Remove REC knob, shutter button, and shutter
spring
51-1. Remove two screws (BT3 panhead 1.7 x 3.5
Black) which affixing shutter base.
First screw
51-2. Second screw
