Casio QV-3500EX Service Manual & Parts Catalogue

— 39 —

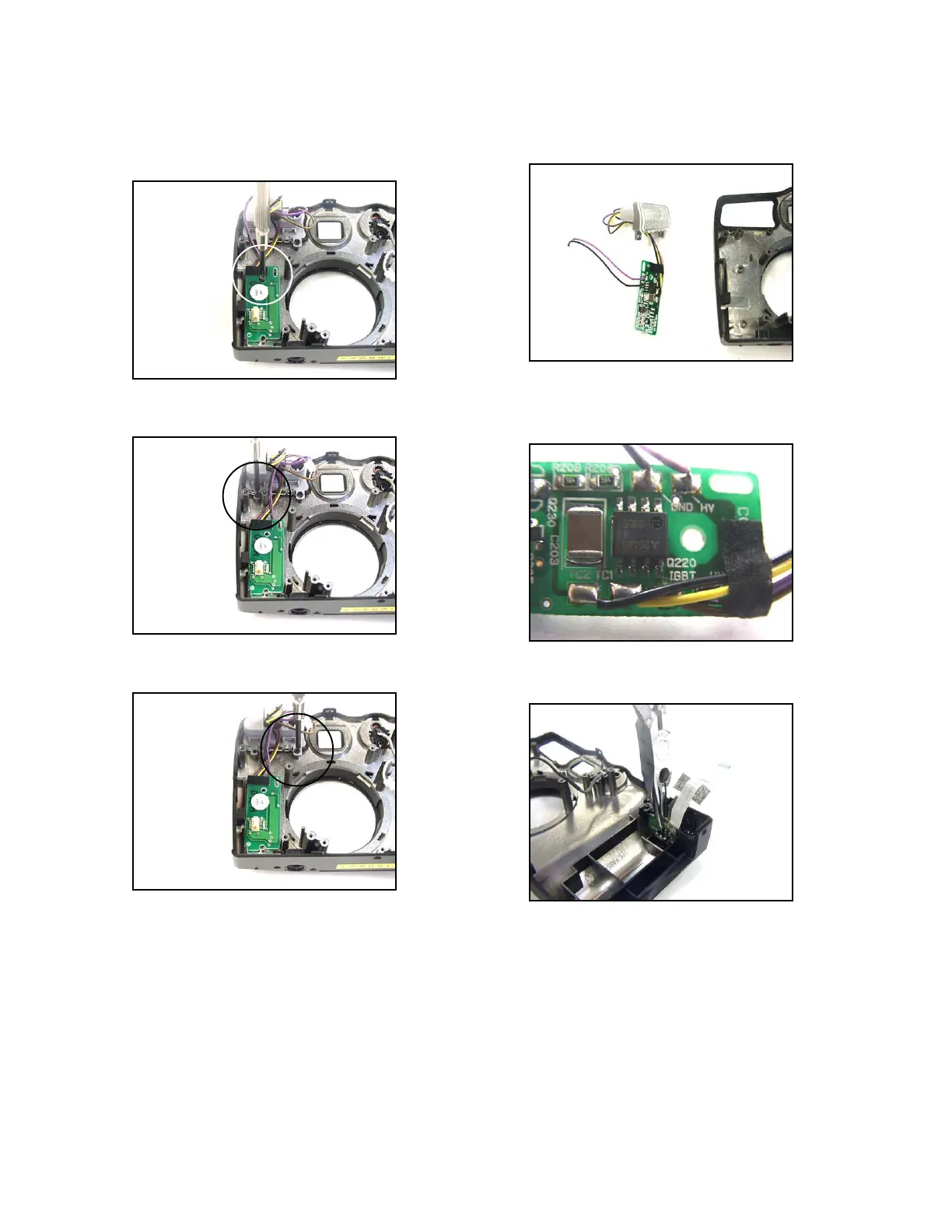

43-1. Remove three screws (BT3 panhead 1.7 x 3.5
Black) which affix Flash unit.
First screw
43-2. Second screw
43-3. Third screw
44. Remove Flash unit.
The 2-pin cable is not included in Flash unit.
45. If this IGBT (Q220) is faulty, flash may light with
full emission or light only once on red-eye mode.
46-1. Remove SW PCB pulling with pliers.
