Casio VL-Tone VL-1 - Connecting External Equipment; LINE OUT Jack Usage; Connection Diagram; Amplifier Connection Advice

— 27 —
Before connecting the unit please read the operation manual of
the equipment to be connected.
* The VL-TONE is provided with a LINE OUT (output) jack
which allows connection of an external equipment (such
as stereo amp., radio cassette recorder or tape-recorded) for
more dynamic performance or for direct recording.
* LINE OUT jack of the VL-TONE is made to the mini-plug
specications.
* When an external amplier is connected, the volume level can be
controlled freely by the volume control on the VL-TONE.
* When using an external amplier is connected, set the volume control
to its minimum level then increase it gradually to the desired level.
11.ConnectingWithOtherEquipment

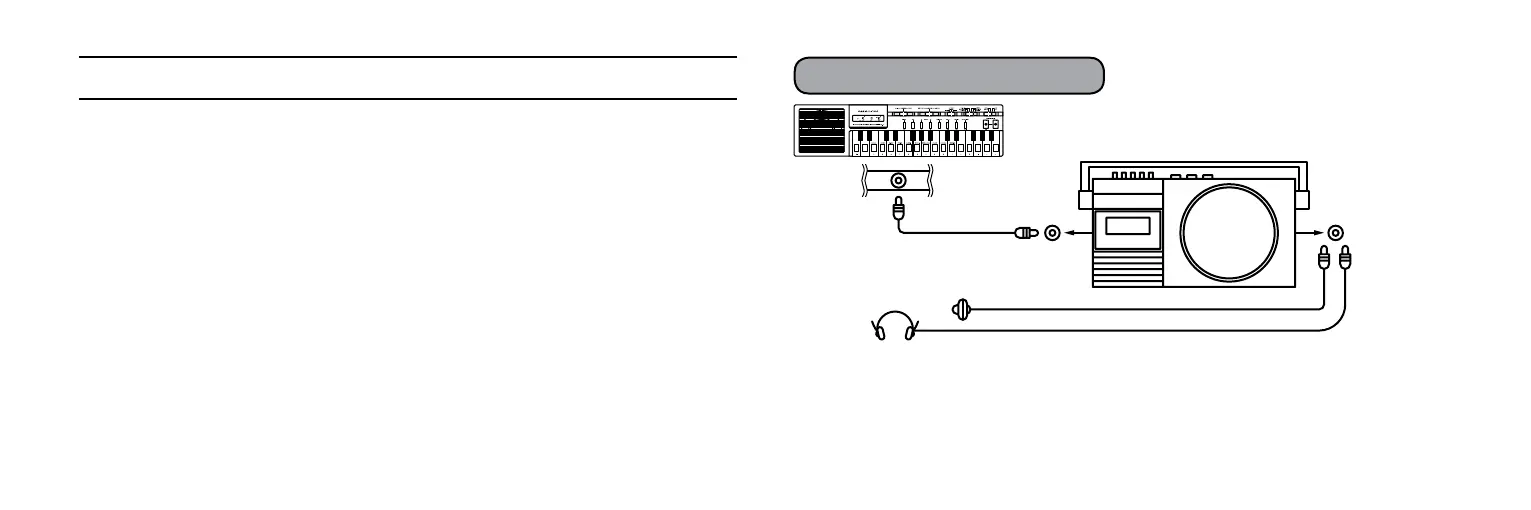

CONNECTIONDIAGRAM
Headphone
Earphone
Earphone or
headphone jack
External equipment
LINE IN or
AUX IN jack
LINE OUT
VL-TONE
