DISASSEMBLY
Y
About Repair
• The fi gures in this chapter show a prototype, so the appearance of parts may slightly differ from the
actual parts.
• To avoid damages to the instrument and fl oor, lay the instrument on a mattress or blanket before
starting disassembling.
• There are several kinds of screws. Be sure to use the correct type of screws when assembling.

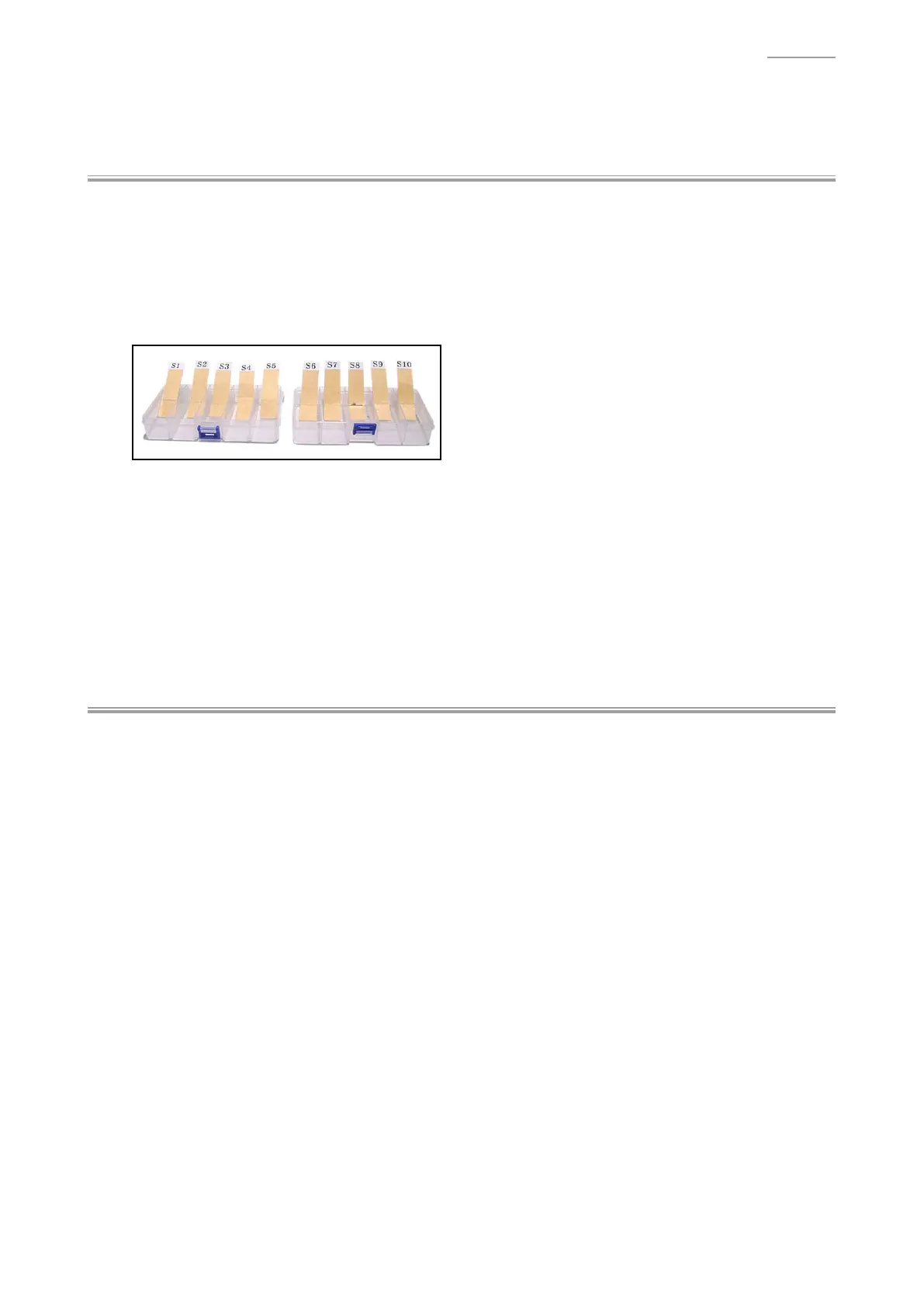

It is advisable to sort the screws as shown below after removing them.
• If a screw cap is attached to the screw, remove it.
When assembling, reattach the screw cap.
• Check how cables are wired before removing cables.
When assembling, wire the cables in the same manner as they were before disassembly.
• If a cable is bound by cable tie, tape or similar item, remove it as necessary.
When assembling, bind the cable as it was before disassembly.
Y
Before Starting Repair or Servicing
• Remove the AC adaptor, AC cord or batteries.
• Remove accessories such as the music stand.

Casio WK-240 Specifications

General

Control type	Buttons
MIDI-keyboard number of keys	76 keys
Metronome	Yes
Product color	Black, Silver
Sound effects	Chorus, Reverberation
Sound effects quantity	180
Maximum polyphony (notes)	48
Music memory capacity (songs)	10
Interface	USB
Headphone outputs	1
Display type	LCD
Power source type	AC, Battery, DC
Number of batteries supported	6

Weight and Dimensions

Depth	385 mm
Width	1161 mm
Height	134 mm
Weight	6900 g
