ASSEMBLY
—
BASE ASSEMBLY
—
BASE
Figure A
It is HIGHLY recommended to use two people for the installation of
this product. To assemble, please perform the following steps:

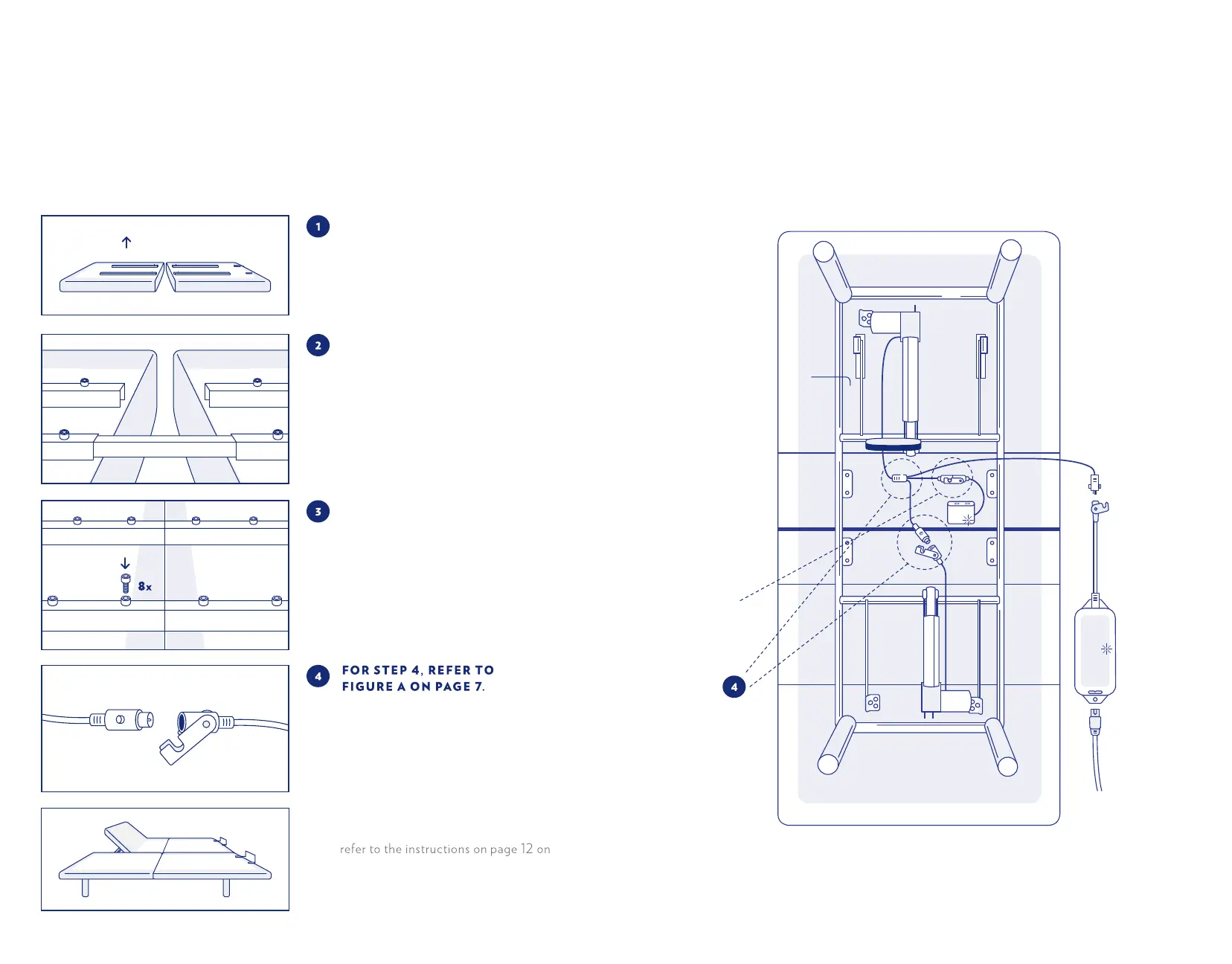

Please refer to diagram when assembling the adjustable bed.
Carefully lift both base pieces from
the shipping carton, keeping the unit’s
topside down. Remove the plastic
wrapping from the bottom to access
the beds.
Connect the Foot motor connector cable
to the Head motor connector cable.
NOTE: The Head and Foot motors
are labeled on the respective motor.
NOTE: Make sure the wire connected to the power supply is routed UNDER the main
metal frame and lifting mechanism. Routing wires on top of the metal frame is likely to
result in damage to the base which may void the warranty.
Motor-to-
Control
Lead Wire
Motor-to-
DC Cable
DC Power
Cord
Power
Supply
To
AC
Outlet
Foot and
Head Motor
Connector
Cables
When setting up a split Cal King or
two Twin XL beds to form a King,
how to link your remote.
THIS WAY UP
Insert the connecting rods into one of
the base pieces and then slide the
other bed piece onto the connecting
rods as shown.
Secure the base pieces to each other
using the eight hex bolts (four hex
bolts for each connecting rod),
making sure to hand tighten each and
then tighten
1
⁄
4
turn more, as over-
tightening could cause damage to the
frame or connecting rod.
