REPLACEMENT OF BATTERY
OF WEDGE-FULLY-INSERTED INDICATOR
Remove the cable of the foot pedal from hook M (Fig. F, page 3).
With a 5mm Allen key (supplied in the accessory box), undo and remove the 4 screws A-B-

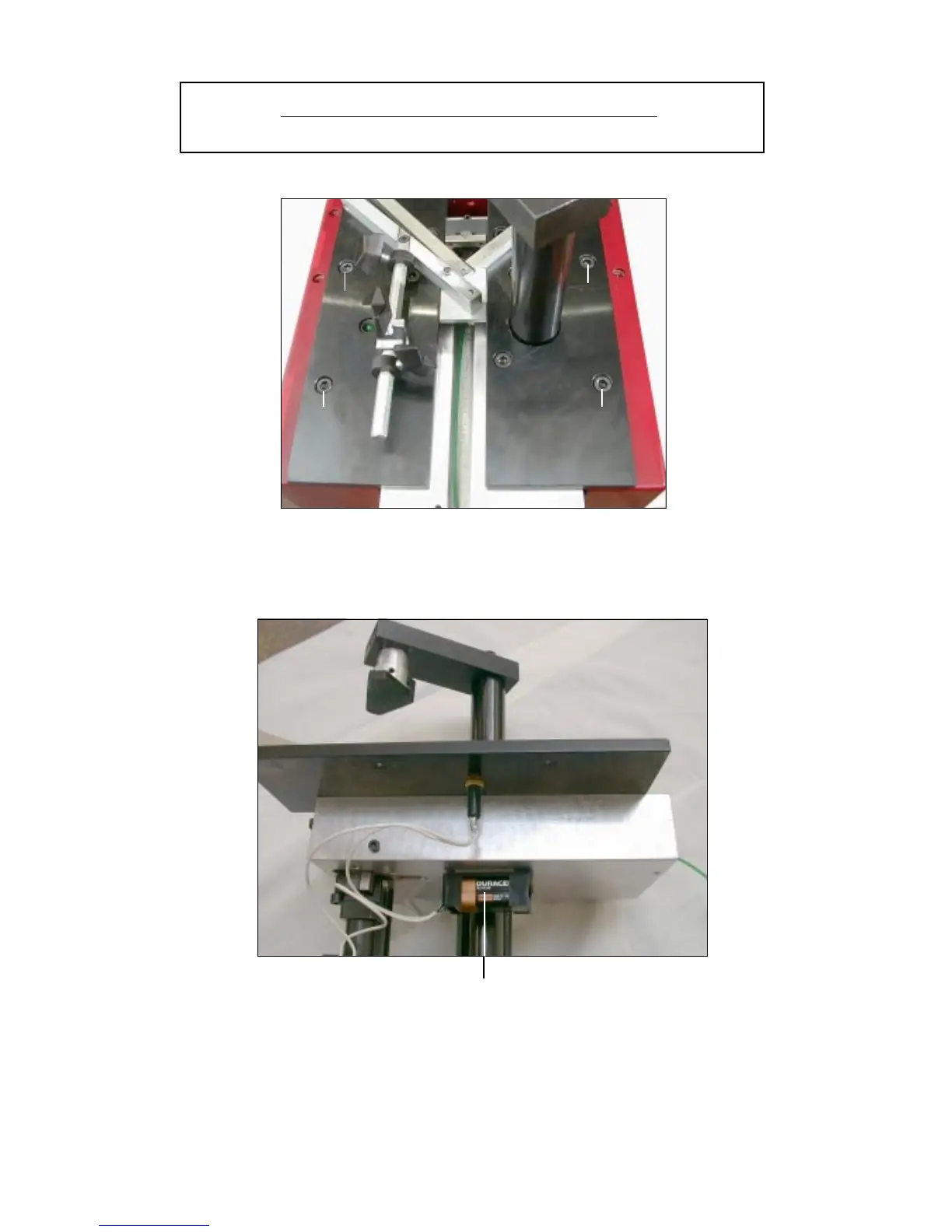

C-D that fix the mechanism of the machine to the upper cabinet. See picture above.
Battery 9 V
A
B
C
D
11
Now, you can remove the mechanism out of the cabinet and access to the battery that is
a standard 9 V one. See picture above. Please replace the empty battery.
