The triangle top pressers with their extra long
support that are included with your CS 79 gives
you the capacity to work mouldings up to 35 mm
(1
3
/
8
”) high. For taller mouldings there are other top
pressers available from your regular source of Cassese
products. See on page 2, the list of other top pressers
for your CS 79 and the capacity in height of moulding
they would allow you to join.
If the corner is open towards outside, unscrew (turn anti-clockwise) the angle adjustment
screw AS (see Fig 1 page 1) a little to correct the fault and check again.
ADJUSTMENT OF THE ASSEMBLY ANGLE
If several cutting machines are being used in your production or if you receive your mould-
ings already cut by your suppliers (chop service), the angles of the mouldings will be slightly
different from one cutting machine to the other. The joining angle of your CS 79 can be
adapted to find precisely the cutting angle of your cutting machine.
If the corner is open towards inside, screw in (turn clock-wise) the angle adjustment screw
AS (Fig 1 page 1) to correct the fault.
If you get this result, check your cutting angle, which is wrong
in this case because it is less than 45°.
Carry out the adjustment of the angle of your cutting
machine.
IT IS IMPOSSIBLE TO MAKE A RECTANGLE
FRAME WITH ANGLES SMALLER THAN 90°.
Outside
Inside
7
Fixing in holder
with a 2.5 mm Allen key

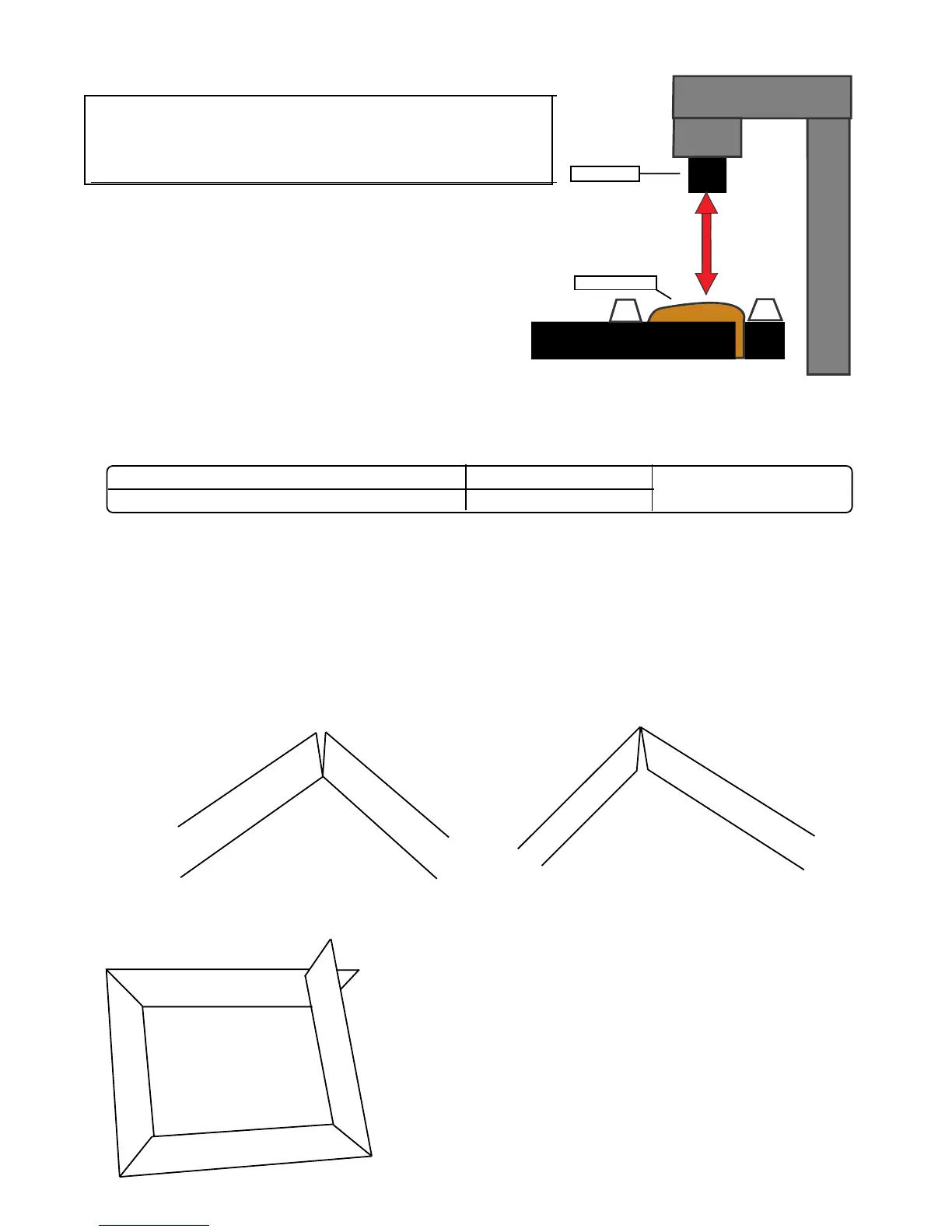

Make sure that the distance between the moulding’s top and
the presser’s bottom is not more than 30 mm (1 ¼”).
If the distance is bigger than this, use another (longer) top
presser to reduce the distance.
BLACK TRIANGLE PRESSER HARD WOOD
WHITE TRIANGLE PRESSER SOFT WOOD
PRESSER
MOULDING
30 mm (1 1/4’’)
MAXIMUM
SELECTION OF A TOP PRESSER END (See page 12 : NEW VERSION TOP PRESSER)
Triangle top pressers are good for flat mouldings or for mouldings presenting a flat or horizontal
area to come down on. The green or orange rubber ends are good for complicated forms (uphill,
downhill or reverse mouldings).
