4
TABLE
SCREWS
VT

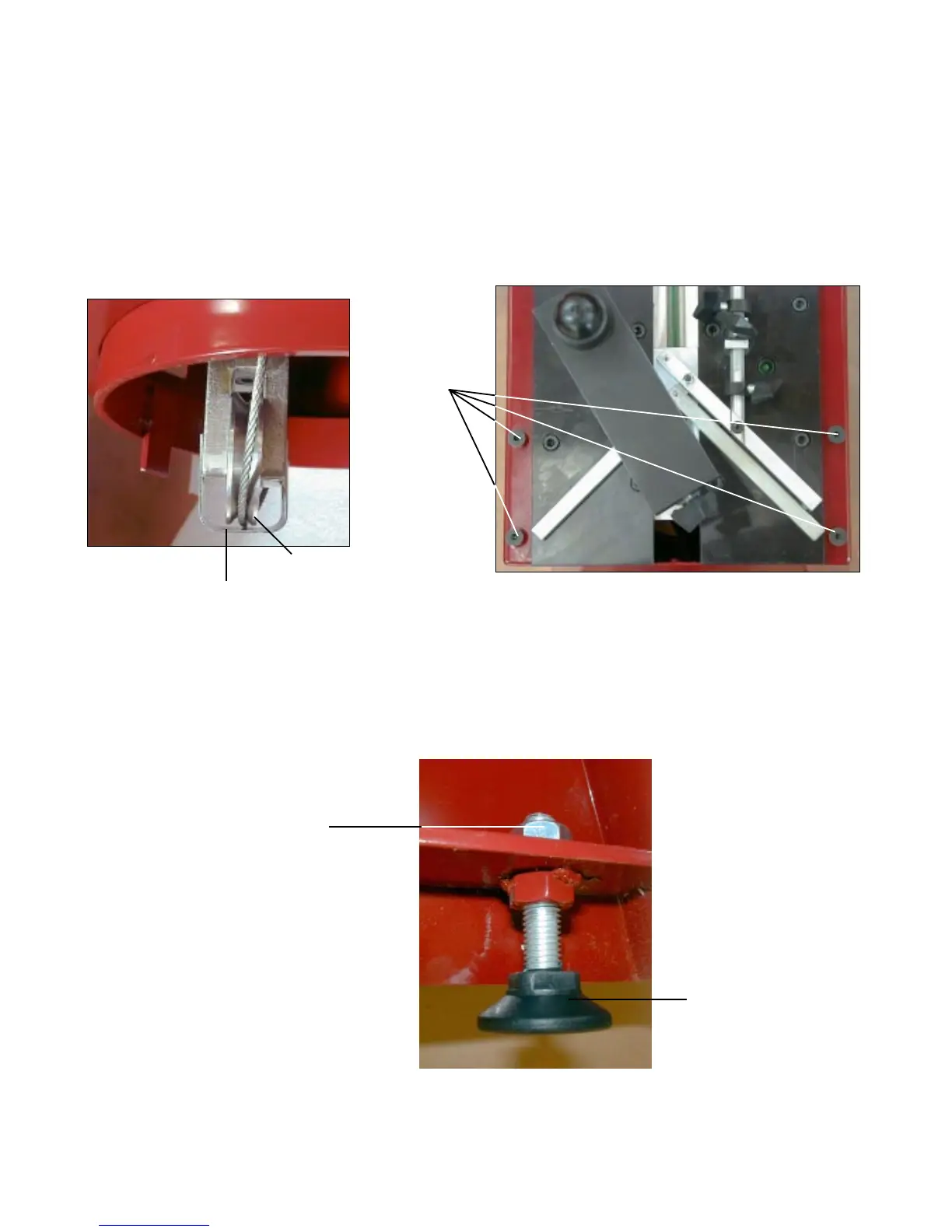

Fig I
DEVICE HOLDING CABLE IN PLACE
Fig J
BOTTOM PULLEY
- Lay down the machine gently with the pedal opening on top (see Fig.F).
- (Fig.F) Assemble the foot pedal; the hook M must be on top. Fix the ends of axle AX on
supports S1 & S2 starting with S1 (See Fig.E).
Then screw to S2 with the 20mm (approx. ¾” long) screw + washer supplied in the accessory
box. You need for this a 17mm wrench.
- Check that the cable is engaged on the two pulleys (see Fig.G, H and I)
- Then engage the cable CP to the hook M (see Fig.E).
- Try the pedal by hand to make sure that - the cable remains on pulleys and everything is
moving smoothly.
Nut H,M12.
(19mm wrench needed ).
Fig K
- Now put the machine CS 79 up on its feet;
- Fix the extension table Ta with the 4 screws VT (see Fig.J).
- Adjust the level of the machine with its 4 feet so that it is stable during operation.
In the accessory box, you will find one nut that is for the foot of the machine which you removed
initially and which was therefore without nut. (See Fig K)
Foot
