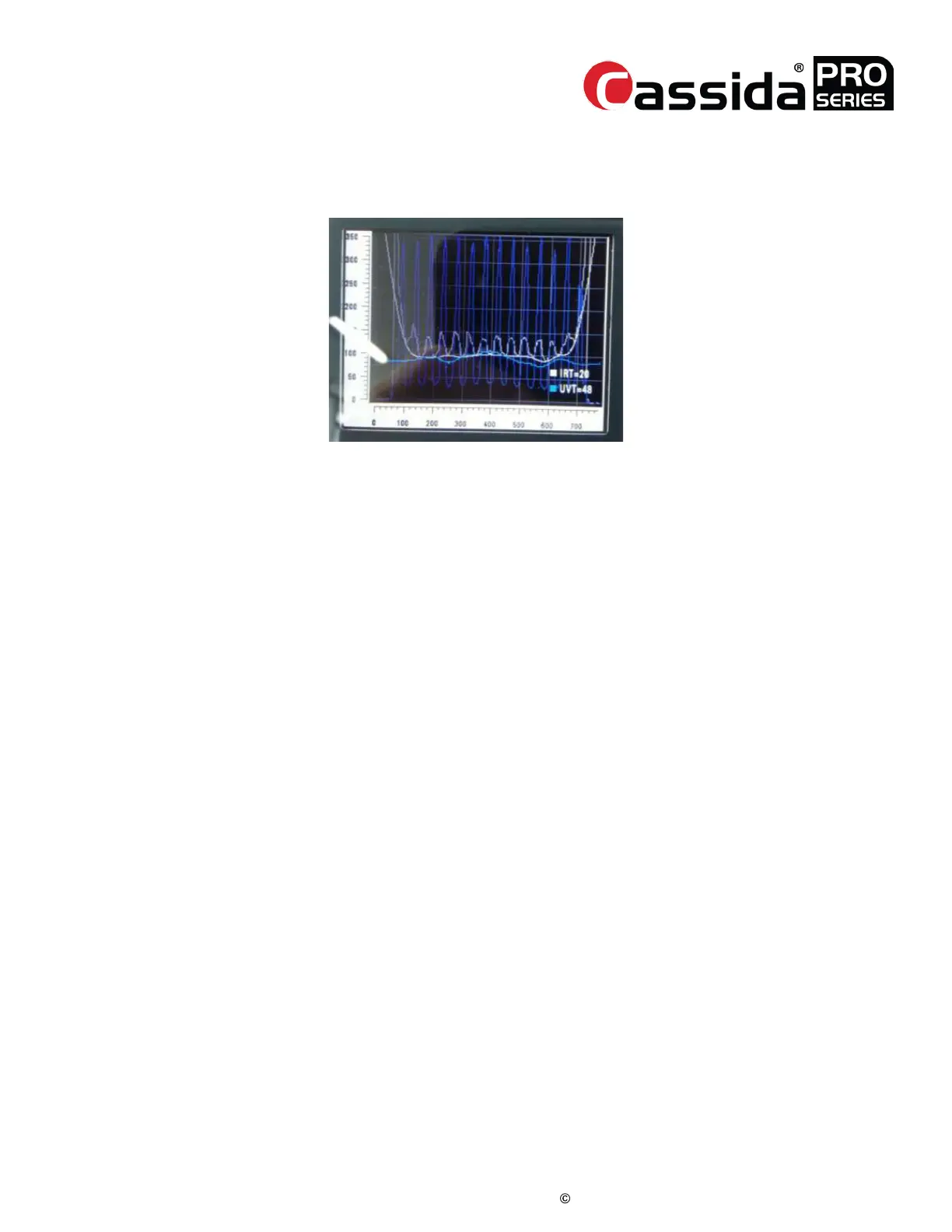

If you press the [5] key again,the shading waveform of UV & IR transmitted illumination will
be displayed as shown below for a passing sensor:
CURRENCY AND FUNCTION CHECKS 2.3.
If the waveform doesn’t look similar to Fig. 10, clean the IR/UV bar and attempt a
calibration. If discontinuities are still present, replace the IR/UV bar.
