CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/

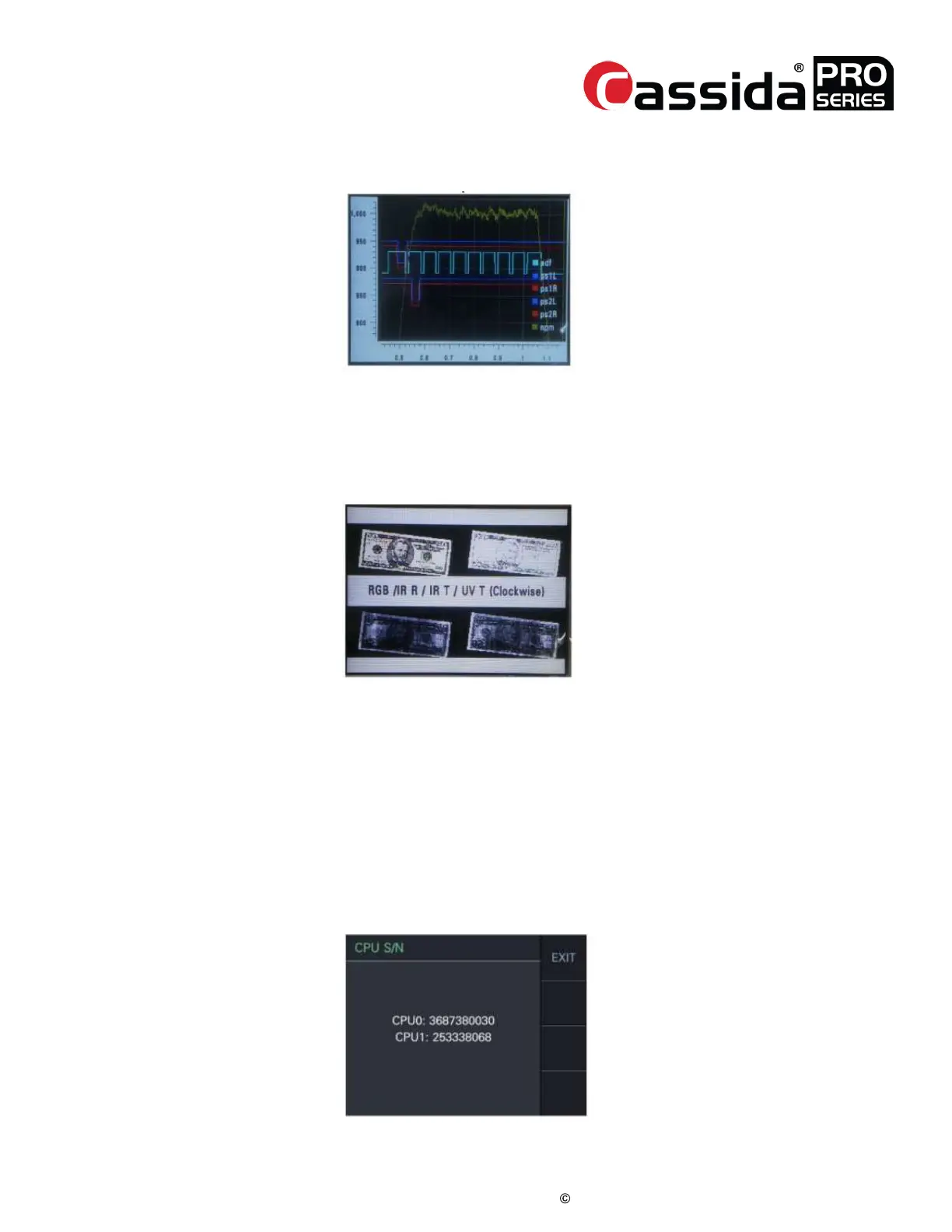

3. Position Sensor Output
4. Scanned Image
• You can check 4 different images; Color (RGB), Reflective IR, Transmissive IR and
Transmissive UV. To check images one-by-one, repeatedly press the [4] key.
5. CIS shading waveforms
• To see the CIS shading waveforms, press the [5] key. The graph is toggled between the
waveform of RGB and the waveform of IR and UV whenever the [5] key is pressed
RGB Waveforms IR&UV Waveforms
NOTE: To exit from these graph windows, press the [F1] key (marked in the photo at the
left) or press [C] to exit completely from the test menu.
1-6 CPU S/N
• This function reports CPU serial numbers. This may be required for specific software
updates or upgrades.
SOFTWARE VERSION 6.10.
