4.3 Pocket Web Adjustment
The offset distance from the end of the pocket to the edge of the work piece is called the “Web.”

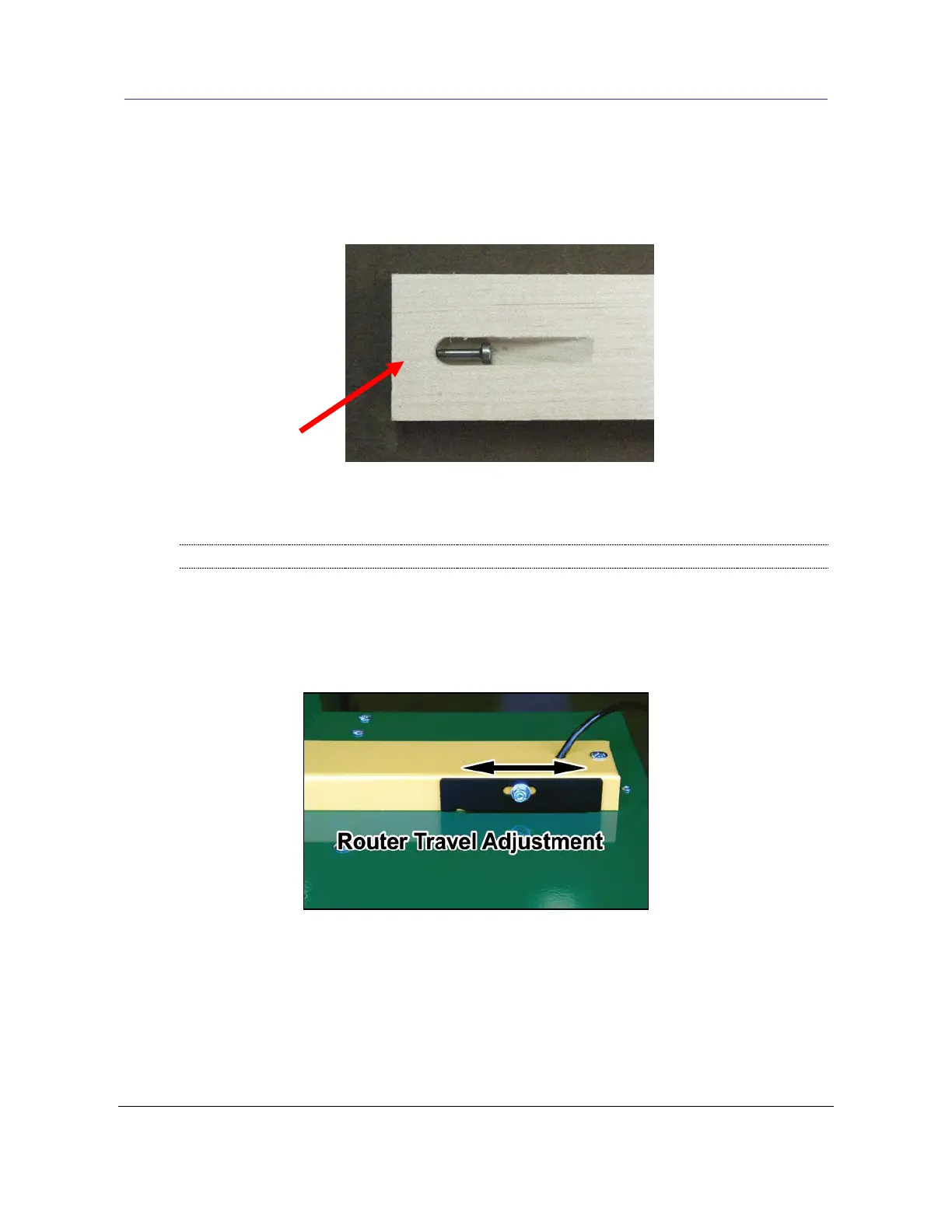

(Fig 9) It has been factory set at approximately
7
/
8
” to accommodate 1 ½” screws.
Fig 9
If you are using 1¼” screws you may choose to shorten the Web to
5
/
8
”.
Note: The minimum recommended Web under any circumstance is
5
/
8
”.
The Web is adjusted by shortening or lengthening the travel of the router’s cutting stroke.
• Locate the Router Stop Plate nut on the right side of the yellow Clamp Guard on top of the
machine. (Fig 10)
Fig 10
• Loosen the nylon locking nut.
• To shorten the Web, slide the black Stop Plate toward the rear of the machine slightly.
• To lengthen the Web, slide the plate toward the front of the machine slightly.
Web
