CASTLE TSM-21 - Pocket Depth Adjustment

CASTLE, INC TSM-21 Bosch Motor Carriage Install Page 15 of 25
Note: When the desired position has achieved, tighten the nylon locking nut secure-
ly to prevent shifting during operation. Subsequent adjustment of the Router Stop
Switch may also be necessary (Page 31).
4.4 Pocket Depth Adjustment
The router bit for cutting the pocket is inserted into the router collet at the factory for a distance
of 1
1
/
8
” from the tip of the bit to the collet. This setting cuts at an optimal depth of approximately
3
/
8
” for material between
5
/
8
” and
7
/
8
” thickness.
To cut a shallower pocket (in ½” material for example):
• Place a shim with a known thickness on the work top and place your work piece over it.
To cut a shallower pocket:
• Remove the router motor as described in the section for “Tool Changes”.
• Loosen the motor collet and slide the bit to the desired exposure. (If the bit does not move
easily, try gently tapping on the bit near the collet with a wrench.)
• Secure the collet and reinstall the router motor.

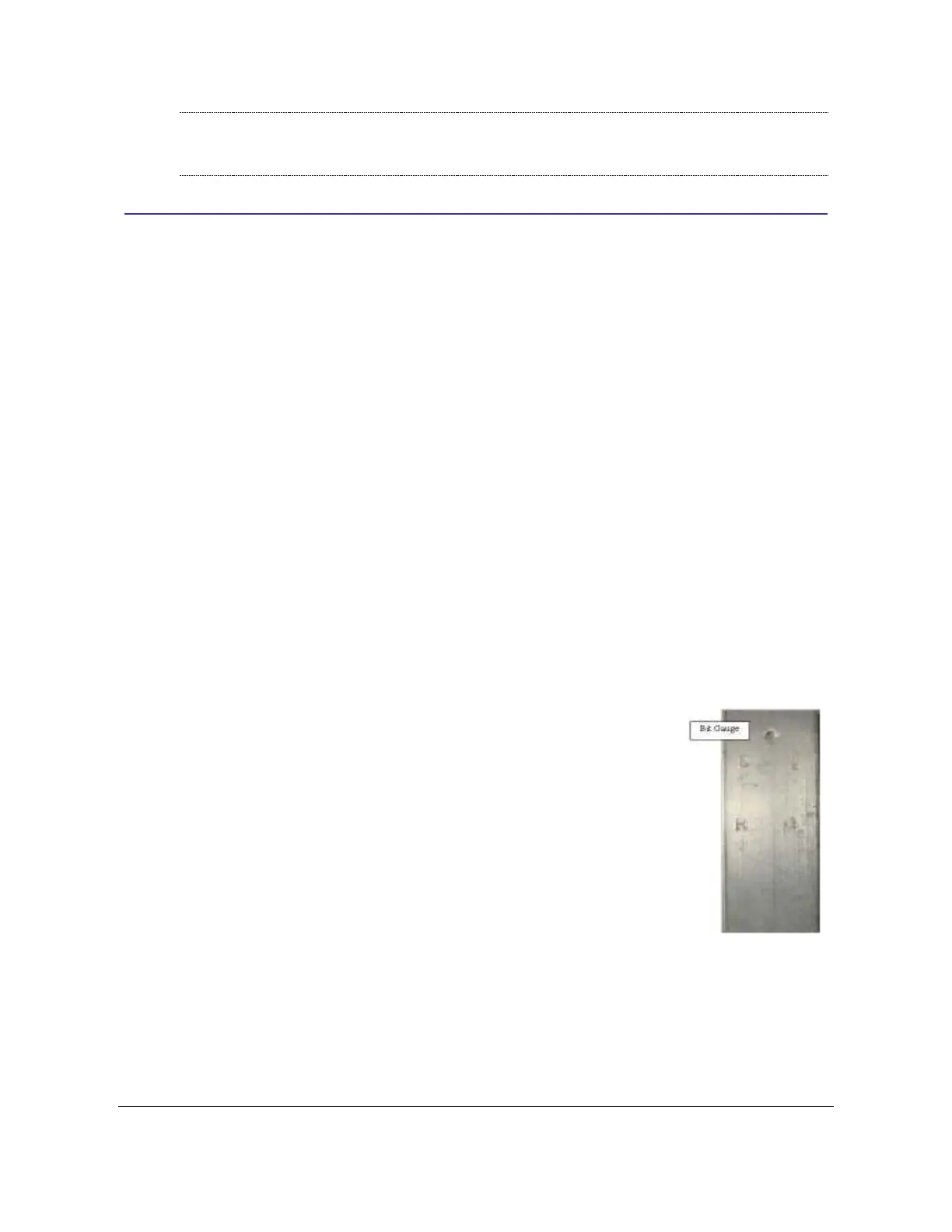

For your convenience, a blank Bit Gauge (Fig 11) is included with your
machine so that you may scribe a mark to record the depth that is most
suitable for your purposes. Refer to the “Pilot Drill Depth Adjustment” for
this procedure.
Fig 11
