Cateye Ergociser EC-5000 Service Manual
56
Replacing the Caster
MS-16
Replacing the Caster
MS-16

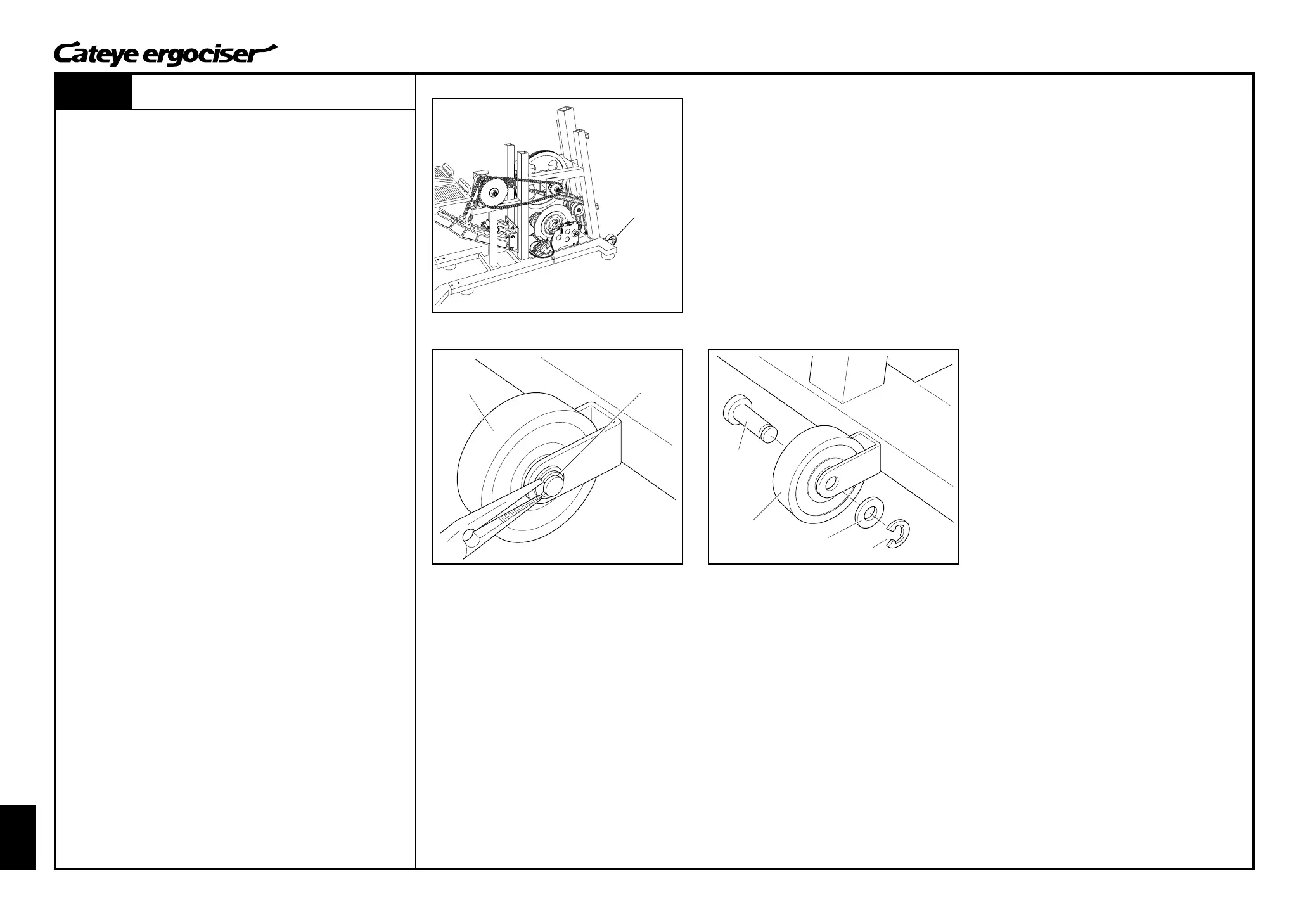

General Figure
Caster E-ring
Caster
 REMOVAL
1. Detach the frame cover.
(See [D-1: Removing the Frame Covers].)
2. Press a plier onto the E-ring, and detach it by pushing the plier.
(Fig. 1)
3. Detach the wheel shaft and detach the caster.
 ASSEMBLE
1. Pass the wheel shaft through the caster hole on the frame.
(Fig. 2)
2. Put a plain washer onto the wheel shaft, and insert the E-ring
at the groove on the wheel shaft. (Fig. 2)
3. Mount the frame cover.
(See [D-2: Mounting the Frame Covers].)
Caster
Wheel Shaft
Plane Washer
E-ring
Fig.1 Fig.2
