Cateye Ergociser EC-5000 Service Manual
57
MS-17
Replacing the Rubber Stopper
MS-17
Replacing the Rubber Stopper

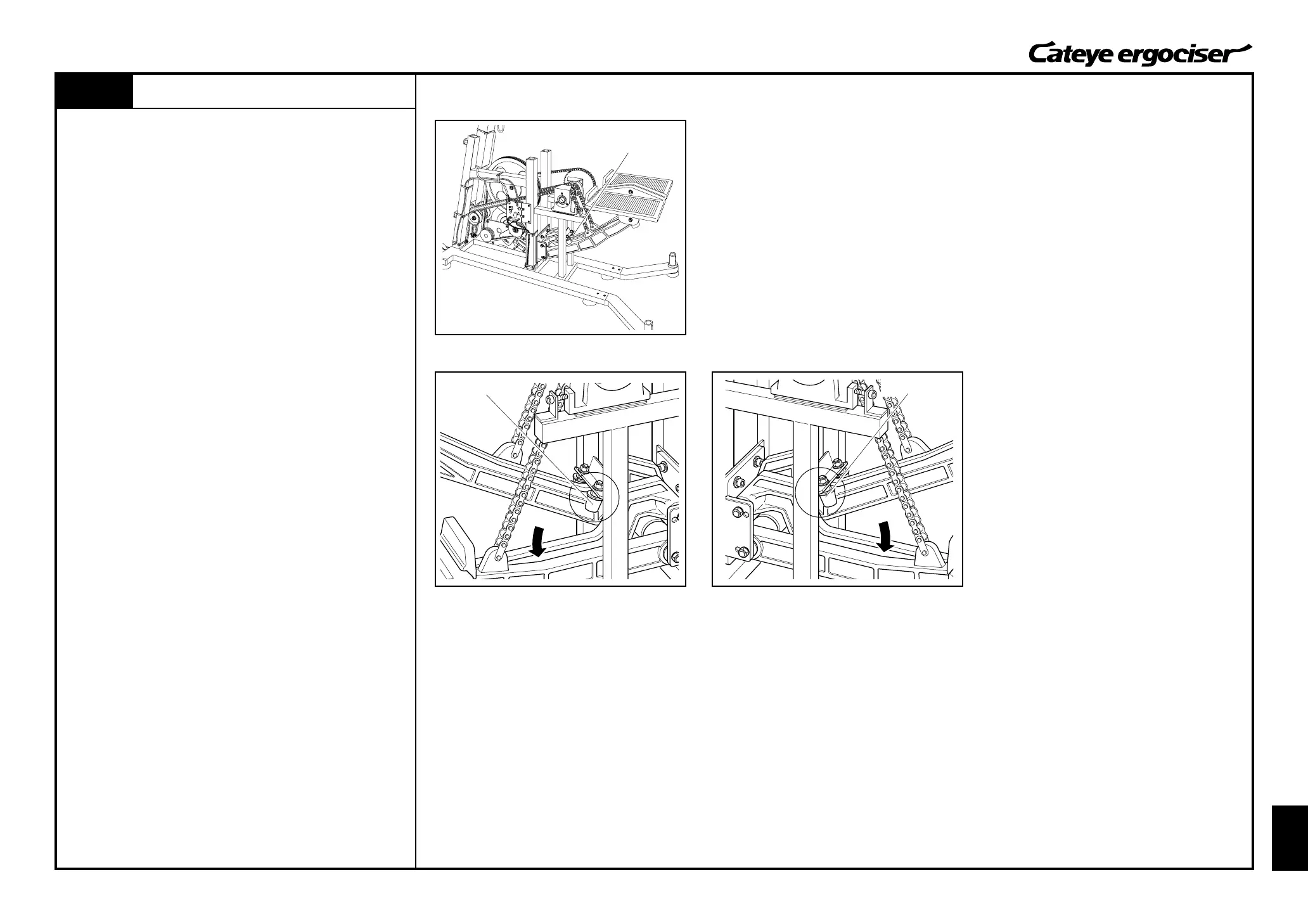

General Figure
Rubber Stopper
In the case of replacing the rubber stopper, be sure to change both
of the two rubber stopper.
1. Detach the frame cover.
(See [D-1: Removing the Frame Covers].)
2. Lower the right side pedal to the lowest position.
3. While maintaining the status as obtained in 2 above, loosen
the hexagon head nut and detach the right side rubber stop-
per. (Fig. 1)
4. Place a new rubber stopper on the frame (right side) and fix it
with the hexagon nut.
After having detached the rubber stopper, restore the pedal to
the original position.
5. Lower the left side pedal to the lowest position.
6. While maintaining the status as obtained in 4 above, loosen
the hexagon head nut and detach the left side rubber stopper.
(Fig. 2)
7. Plase a new rubber stopper on the frame (left side) and fix it
with the hexagon nut.
After having detached the rubber stopper, restore the pedal to
the original position.
8. Mount the frame cover. (See [D-2: Mounting the Frame Cov-
ers].)
Rubber Stopper
Rubber Stopper
Fig.1
Fig.2
