Cayin HA-3A - Connect to Audio Equipment

ZHUHAI SPARK ELECTRONIC EQUIPMENT CO., LTD.
RISK OF ELECTRIC SHOCK
CAUTION
DO NOT OPEN
-HA 3A
HEADPHONE AMPLIFIER
RCA
XLR
SOURCES
FUSE
1:G 2:+ 3 :- 1:G 2 :+ 3 :-
6V6 TUBE
T AL250V1
80
230 50
CS- 100CD
ANALOG OUTPUT DIGITAL OUTPUT
USBCOAXIALOPTICAL
OPTICALCOAXIAL
BALANCEUNBALANCE
RIGHT
LEFT
RIGHT
LEFT
AES/EBU

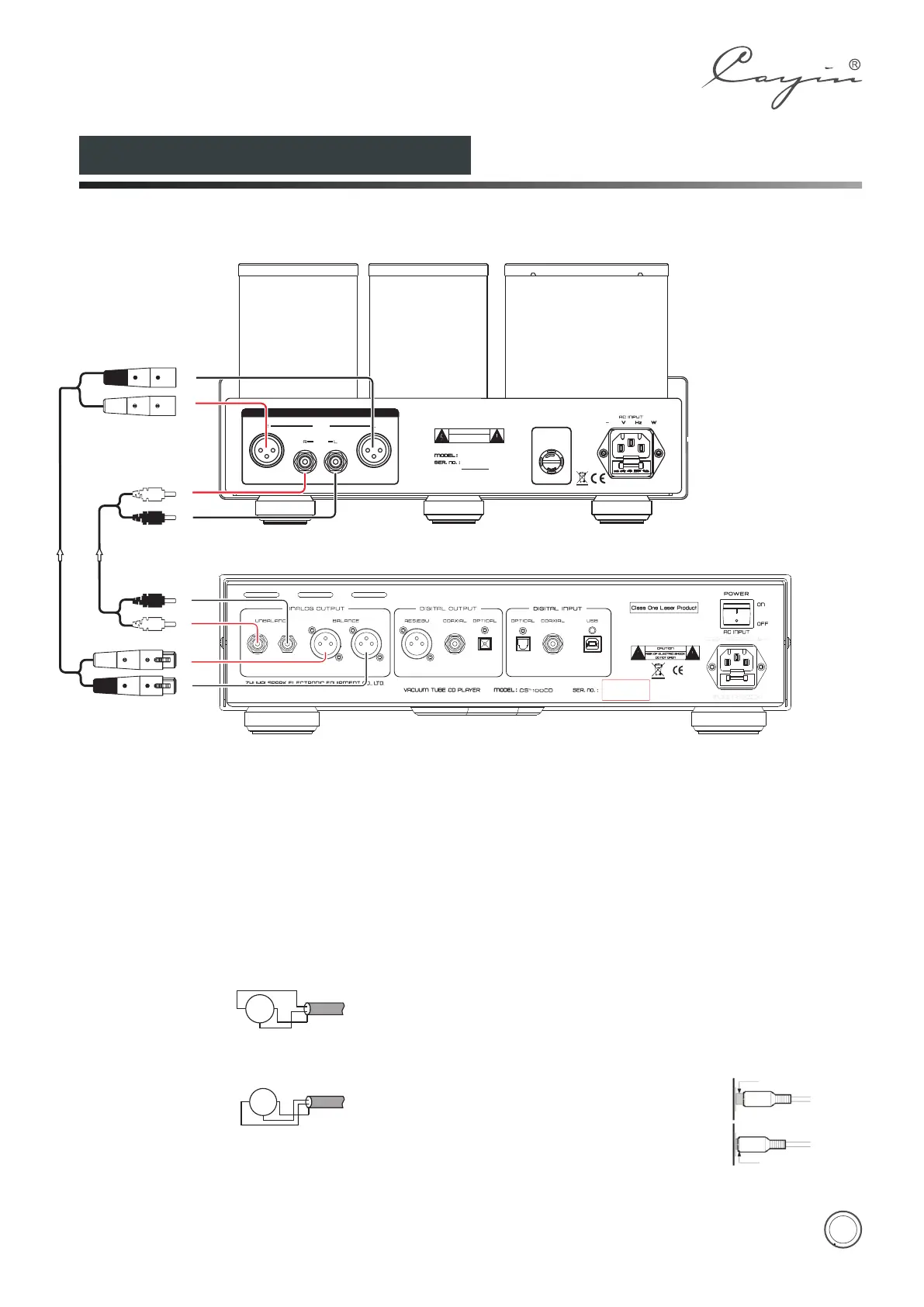

Connect to Audio Equipment
This section will illustrate how to connect audio equipment to the HA-3A amplifier.
Wrong connection
Right connection
Connect to
Audio Output
HA-3A
CS-100CD
BALANCE Socket：
1. The BALANCE socket is with XLR input. The functions are
following:
Music signal is transferred as balance signal without
the outside disturbance.
Professional XLR connectors are used to raise
reliability of connection.
In the following two systems, professional XLR
connectors are used for inside connection.
◆
◆
2.
3. a This amplifier uses the USA System.
If the XLR balance connector is used by European
system, the restored signal of pre-amplifier or main
amplifier will be inverse. Therefore, please setup the
correct phase in advance.
Attention to Audio Connection:
1.Please refer to the manual of associated
equipment whenever necessary.
2.Do not connect the power cord until all
equipment are properly connected
3. “R”indicates the right channel; “L” indicates
left channel.
4.Please make sure all connectors are securely
installed. Bad connection might cause noise
and degrade in audio performance, or even
damaging your equipment.
5.Please do not tie the power cord, audio
interconnects, and speaker cable together or
run them in parallel because
this will produce adverse
effect on audio performance.
Note: Please make sure + and -, left and right are
connected properly.
12
L
R
R
L
L
R
R
L
a. ：①PIN1：GND;②PIN2：HOT;
③PIN3：COLD
USA System
①
②
③
GND
HOT
COLD
b. ：①PIN1：GND; ②PIN2：COLD;
③PIN3：HOT
European System
①
②
③
GNDCOLD
HOT
