OPERATING INSTRUCTIONS
tild VP v2.0EN
4.2. Coupled / uncoupled auxiliary output
The auxiliary output can be coupled to the filtering or not.
In Treatment, Heating or Booster mode, the output is coupled
and users have no operations to carry out: neither in the appli-
cation, nor electrically in the control box.
In Auxiliary mode (connection of exterior lighting or an ap-
pliance not directly linked to the pool for example), users can
configure the auxiliary as UNCOUPLED. In that case the ap-
plication parameters need to be changed as does the control
box (terminals on the right of the contacts, on the lower rail).

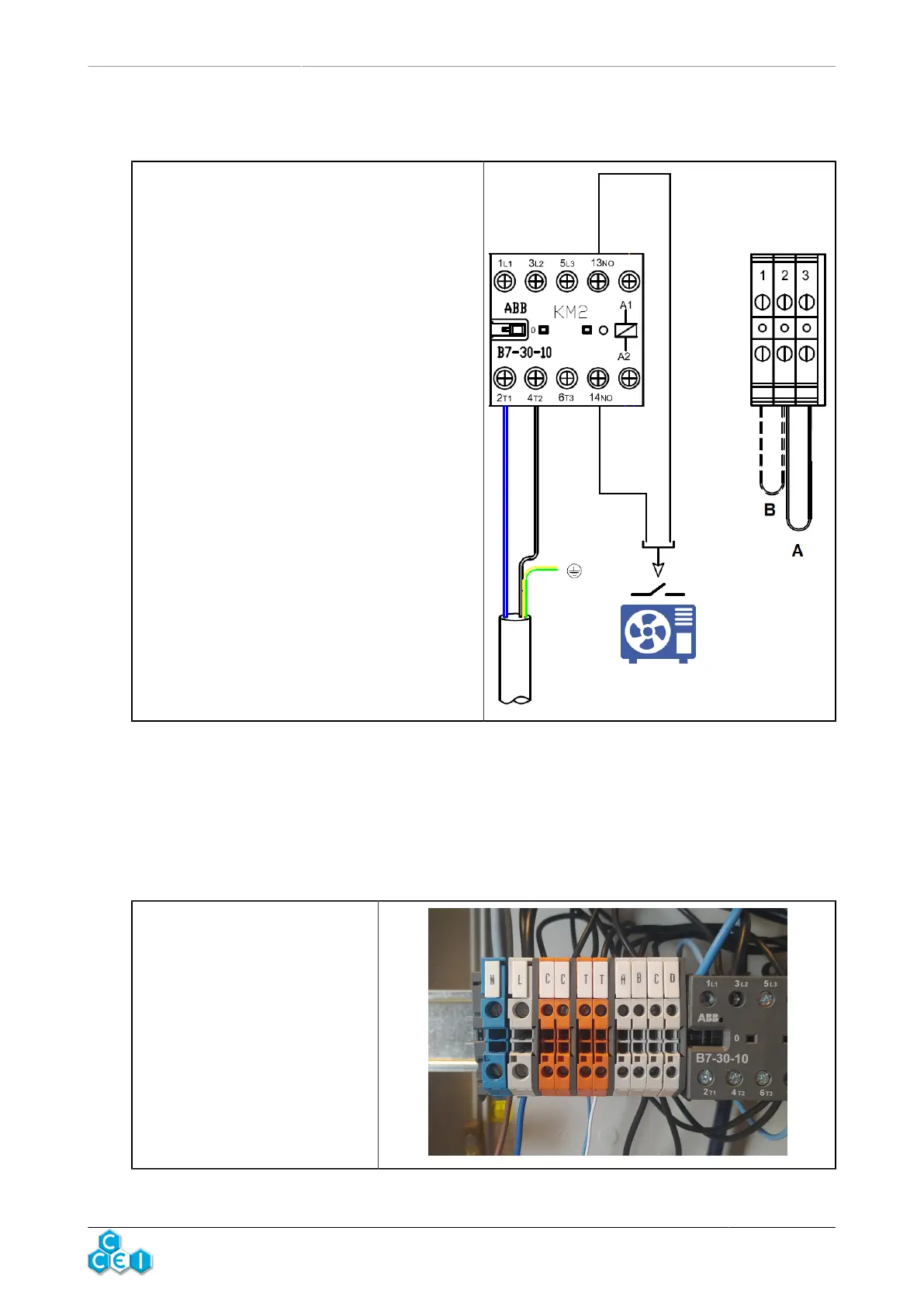

For the electric configuration, just switch the coupled bridge
(terminals 2 and 3 - position A on the diagram opposite)
to the uncoupled position (terminals 1 and 2 - position B on
the diagram opposite).
4.3. Pump prohibited / forced operation / T°C / Pool cover
When a level regulation is to be coupled to the tild VP, you can use the Forced operation (MF) and Pump prohibited (IP)
inputs. The MF input will force filtering to start regardless of the scheduled times (for example: to empty a buffer tank when
its level is too high).
The IP input will force filtering to stop during filling or when the level is too low for example. To connect to the 2 IP terminals,
first remove the bridge.
• Forced operation (terminals A and B)
• Pump prohibited (terminals C and D
• Cover (dry contact) (CC terminals)
• Temperature sensor (TT terminals)
5
