Fig. 6 Fig. 7

Figu re 2 - Mar k wal l as required (see tabl e 1)

Fig. 8 Fig. 9

Figu re 3 - Drill holes

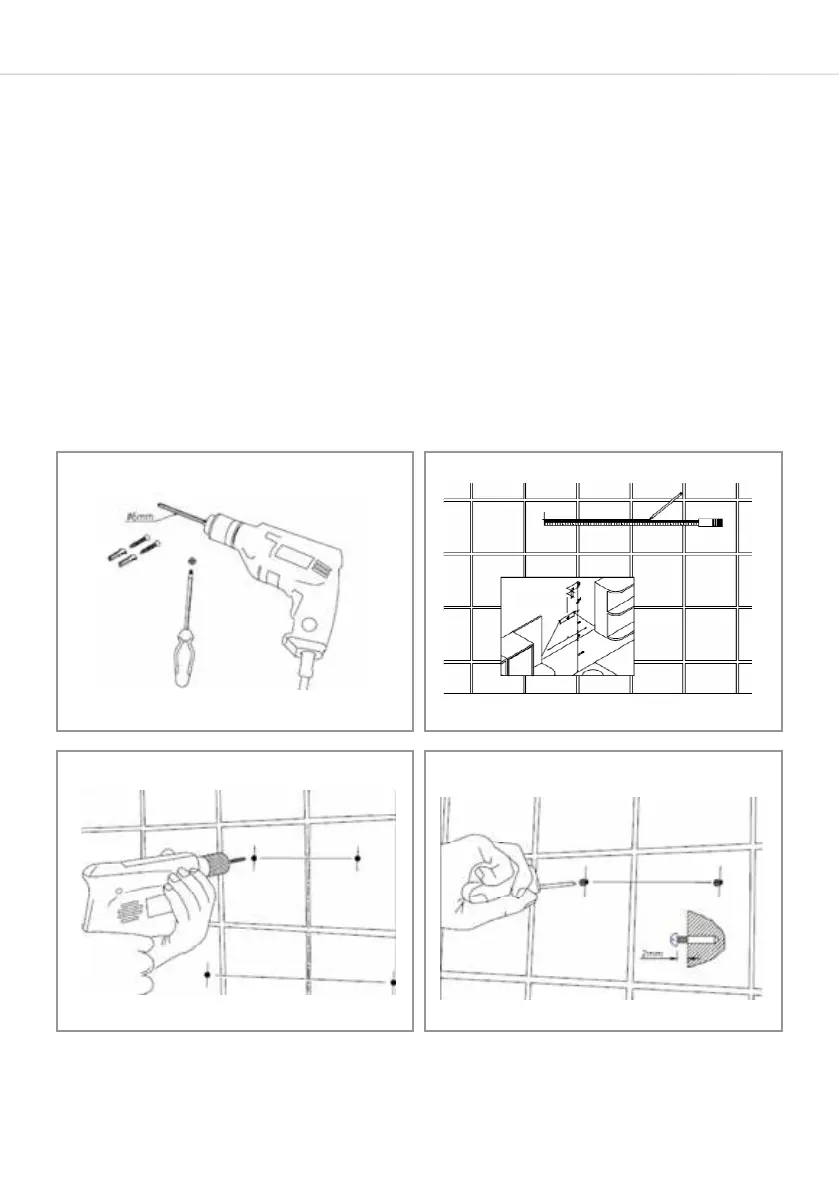

Tools required Mark wall as required (see table on page 12)

Drill holes Fit wall ﬁxings and top screws - Ensure that any ﬁxings

you use are appropriate for the wall type.

IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE

GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND

EXTRACTOR MUST BE AT LEAST 760mm.

The width of any hob must not be greater than the width of the

extractor installed above it.

Installation
