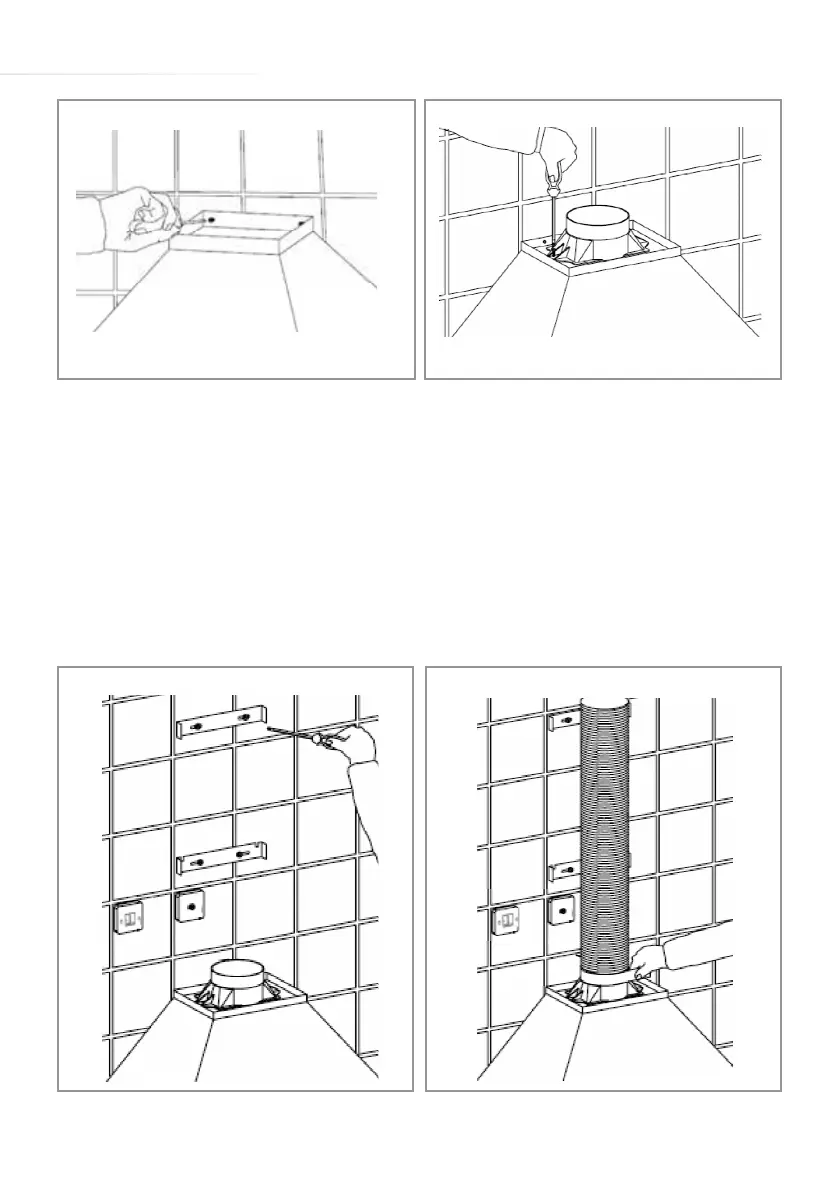

Fig. 10

Figu re 5 - Secure hoo d (tigh ten all screws)

Secure hood (tighten all screws)

Fig. 11

Figu re 6 - Fi t ductin g adap tor

Fit ducting adaptor

IMPORTANT SAFETY WARNING: ONLY USE THE

SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT

THE DUCTING ADAPTOR. THE USE OF LONGER

SCREWS MAY CAUSE DAMAGE TO THE INTERNAL

WIRING WHICH WILL NOT BE COVERED BY THE

GUARANTEE.

Fig. 13

Mount chimney brackets Fix ducting (seal joint)

Figu re 7 - Mo unt ch imney brackets

Figu re 8 - Fix ducting (s ea l join t)

Fig. 12
