Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING
VIA A DOUBLE POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE.
We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations.
The wires in the mains lead of this appliance are coloured in accordance with the
following code:
BLUE = NEUTRAL, BROWN = LIVE, GREEN+YELLOW = EARTH
As the colours of the wires in the mains lead for the appliance may not
correspond with the coloured markings identifying the terminals connecting to
the fused spur, proceed as follows:
• The wire which is coloured blue must be connected to the terminal marked N
(Neutral), or coloured black.
• The wire which is coloured brown must be connected to the terminal marked
L (Live), or coloured red.
• The wire which is coloured green and yellow must be connected to the
terminal marked E (Earth) or coloured green or green and yellow.
NOTE: USE A 3A FUSE
Assembly and electrical connection should be carried out by competent personnel.
When installing this product we recommend you seek the help of another individual.
Do not mount the isolation switch behind the chimney section. It is a requirement that you must be able to isolate the extractor
from the mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical supply by means of an isolation switch and fused spur and is
intended to be protected by a 3A fuse. The use of a 13A fuse can cause damage to the internal wiring in the event of a fault, and
may also invalidate the warranty.
Electrical Information
Mains electrical voltage: 230 – 240Vac.
Total rated power consumption: ECHK90: 200W
ECPK90: 240W
Troubleshooting
If your extractor is not working:
1. Check that the mains supply has not been switched off.
2. Check that the fuse in the spur has not blown.
Contact CDA Customer Care
A : Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu

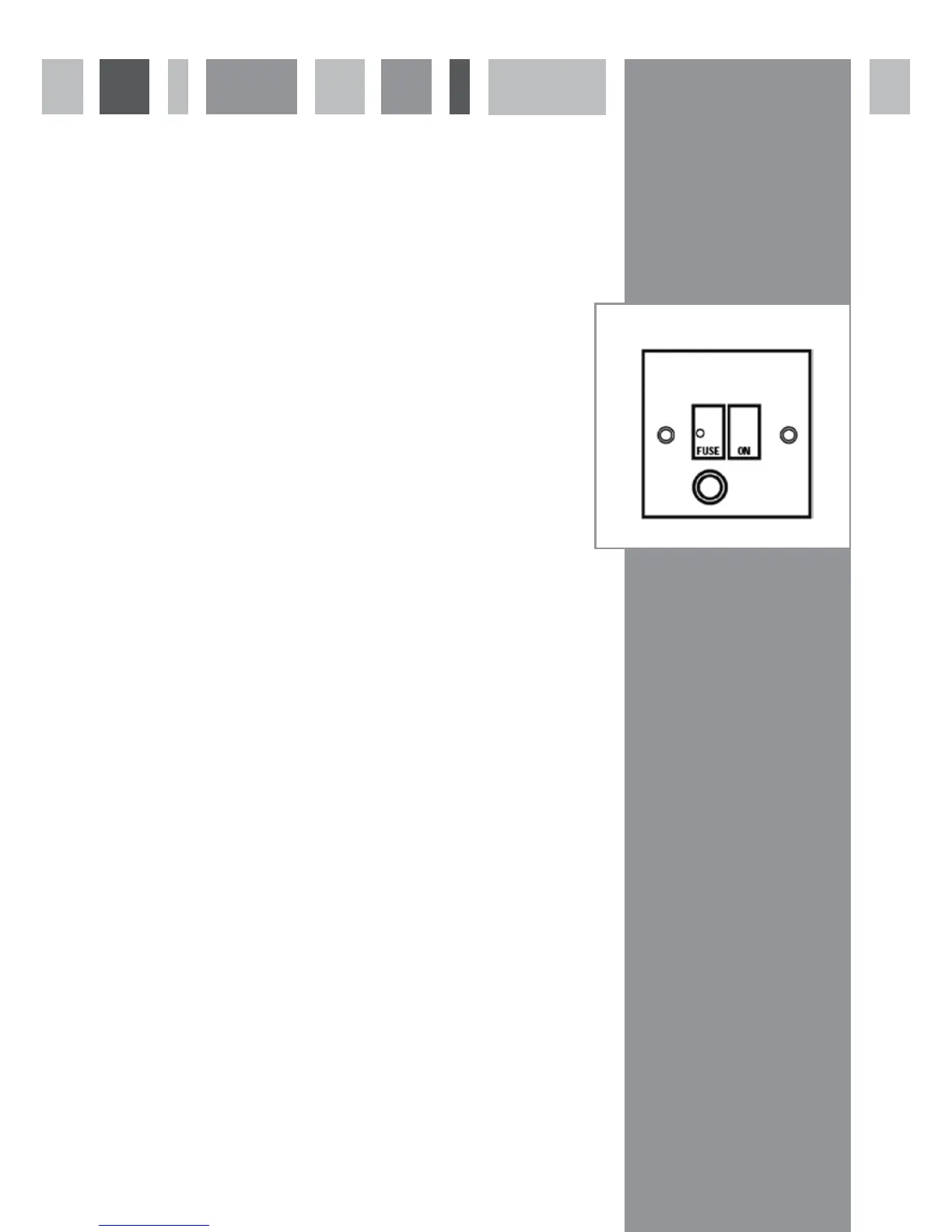

DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
