19

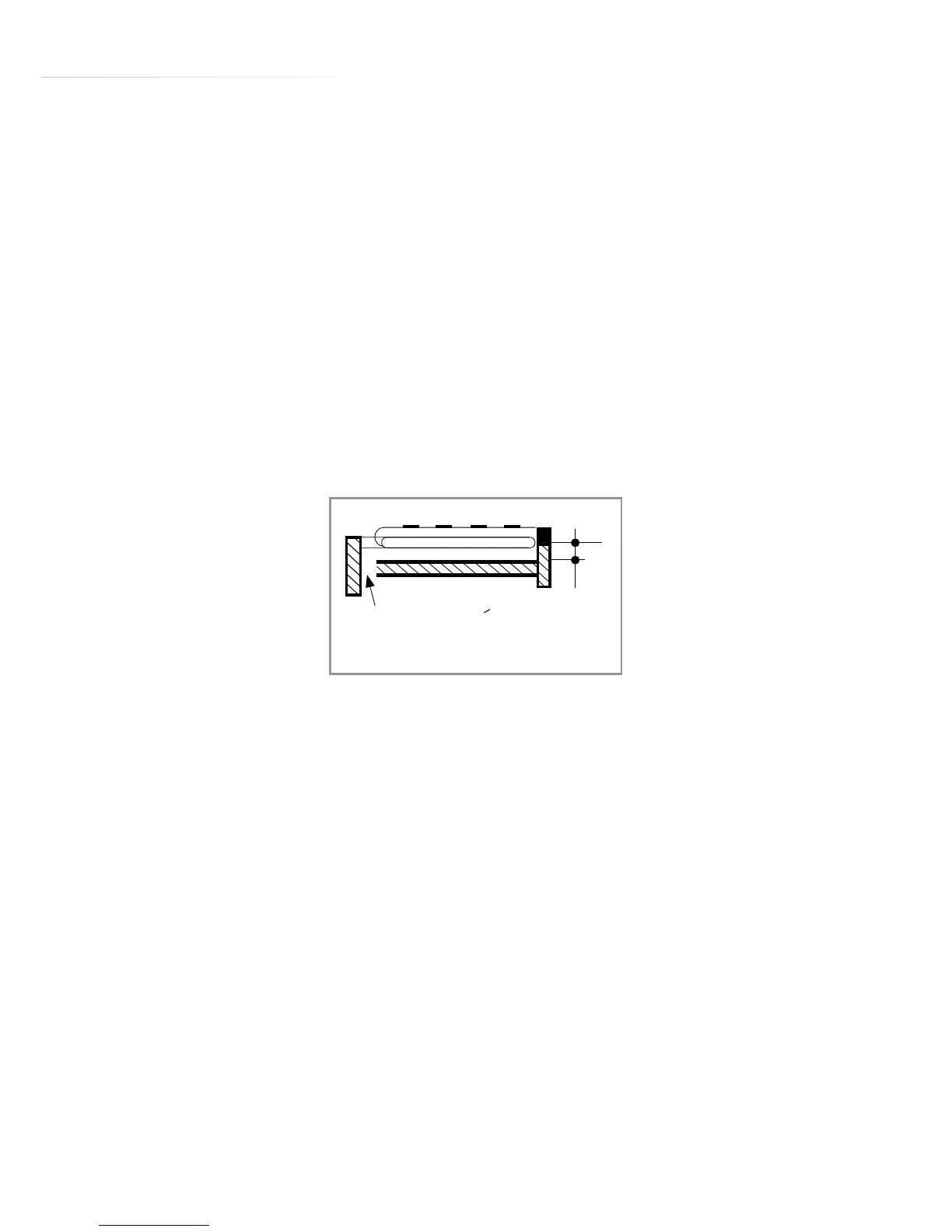

Fig. 11
15mm
Ventilation slot > 30mm
withstanding temperatures 65°C above ambient or greater (typically
80-90°C).
• If there is no oven to be built in below the hob it is recommended
that, an isolation shelf should be fitted to protect the user from high
temperatures. If the hob is to be installed above a working drawer,
then a partition should be fitted to protect the contents and user from
the heat generated during use. This should be fitted at least 15mm
below the hob. This panel should have a ventilation space at the rear
of greater than 30mm as shown in Fig. 11.
• Never place perishable foods in the cupboard below the appliance.
How to Install the Hob
How to install the hob:
Overall dimensions of the hob: Width: 580mm Depth: 500mm
Worktop cut-out dimensions: Width: 557mm Depth: 477mm
1. Make the required hole in the worktop. Note that before doing this,
check the instructions supplied with any cooker hood to ensure that
you will have the required clearance. The cut-out (Fig. 12) shows a
61.5mm gap from the wall to the cut-out edge. The distance for
the hob, when fitted, to the back wall is 50mm.
