28

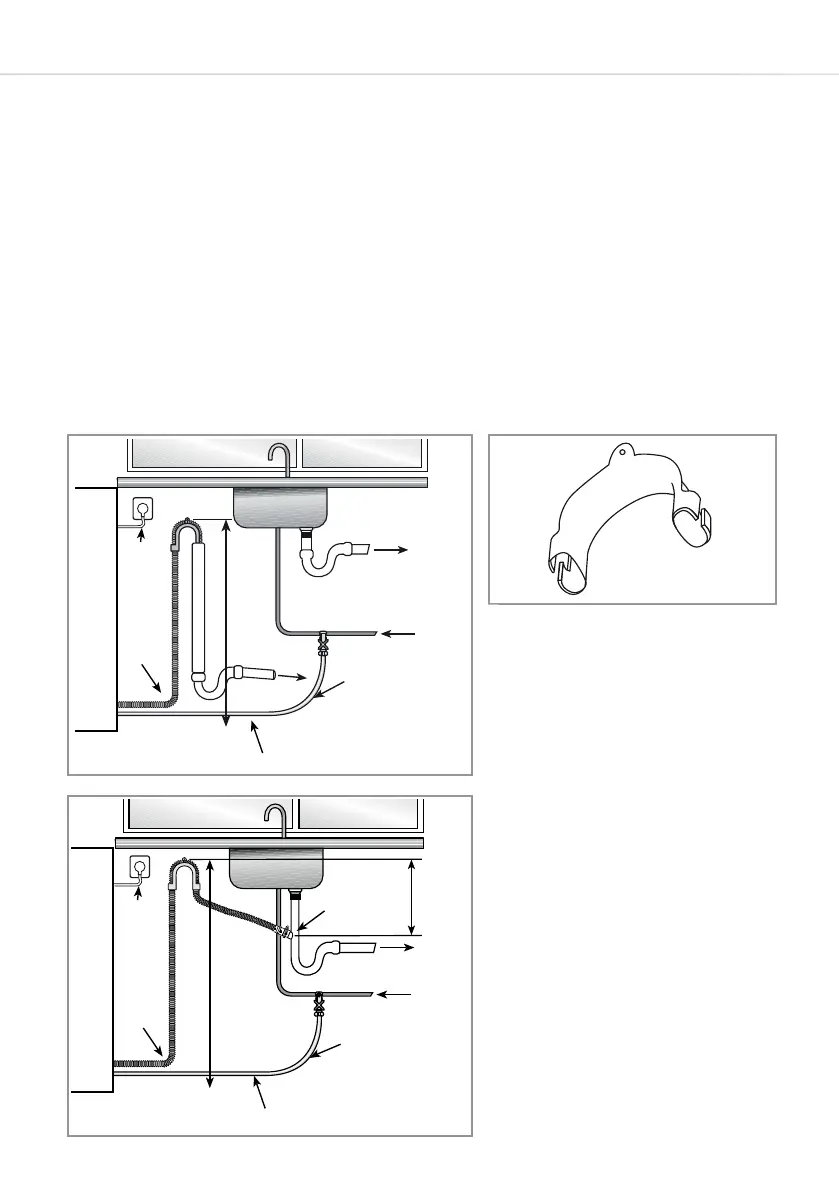

600mm - 1100mm
Power
outlet
Waste
Waste
200mm minimum
bend radius from
valve. Ensure the
inlet hose is free
from kinks.
Water
supply
Valve
Cut/open
spigot
Waste
Water
supply
Valve
200mm minimum
bend radius from
valve. Ensure the
inlet hose is free
from kinks.
150mm min.
600mm - 1100mm
Dishwasher
Dishwasher
Fig. 1
Fig. 2
Drain
Inlet hose
Inlet hose
hose
Drain
hose
Power
outlet
Fig. 3
Fig. 14
Fig. 15
Fig. 16
Use the additional fitting template and kit supplied with the appli-
ance to fit the appliance into the cabinetry, secure it and fit and
secure the decor door.
Adjust the dishwasher door hinge tension as necessary to ensure
the appliance door opens and closes properly and safely with the
decor door attached. There are labels on the dishwasher door to
advise you. An improperly fitted (or adjusted) decor door will pre-
vent the appliance door from opening and closing as normal and
could cause issues with operation such as leaks.
