INPUTS
The A22 can monitor the state of up to 6 devices (12 using zone doubling) such as magnetic contacts, motion
detectors, temperature sensors, or other devices. The following are examples of the type of inputs that can be
monitored:
Magnetic Door Contact:
Permits supervision of door “status” (opened, closed, opened too long, forced open). Inputs “Door
Contact 1” and “Door Contact 2” are assigned by default as the door contact for Door 1 and Door 2
respectively. When using the default system settings, you can easily swap terminals to troubleshoot
the installation.
Request to Exit (REX):
The device used can be a push button, vertical-view motion detector or oor mat sensor. The door can
then be programmed to unlock on a REX detection. When a magnetic door contact is installed, the
system can dierentiate between a door forced open and an authorized exit. Inputs “REX 1” and “REX
2” are assigned by default for Door 1 and Door 2 REX inputs respectively.

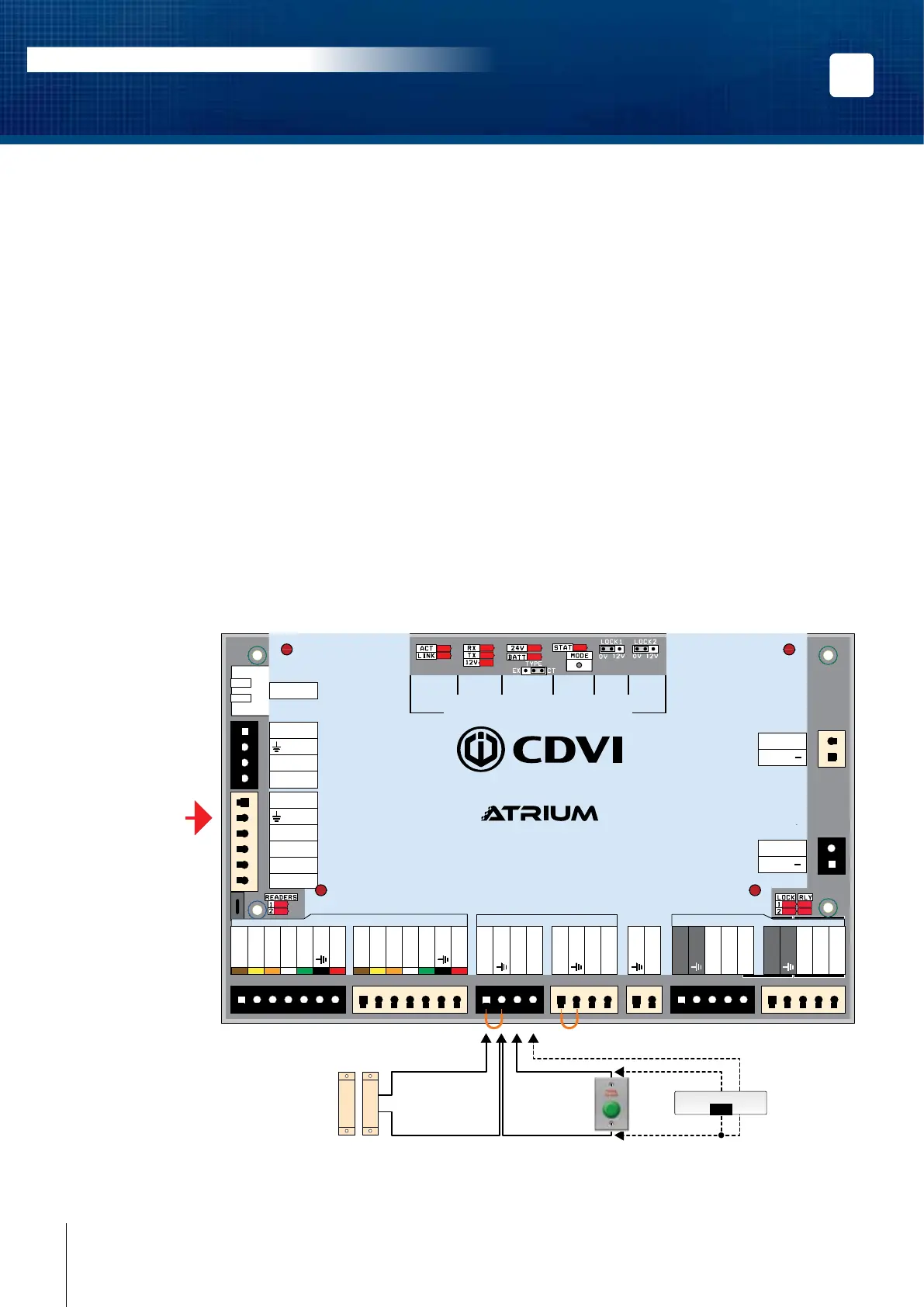

Door 1
Factory Default Input Settings
(same settings for door 2)
N.C. Door Contact
(Remove the jumper
before installing
the door contact)
N.C. REX1
+12VdcN.C.
Com.
-
INPUTS/
OUTPUTS
RS485
LOCAL
BUS
BATTERY
(12V DC)
INPUT
POWER
SUPPLY
ETHERNET
LOCAL
BUS
STATUS
LOCK 1
SETTING
LOCK 2
SETTING
READERS INPUTS
LOCKS
A22
2-Door Web-Based IP Module
DOOR 1
DOOR 1
DOOR 2
DOOR 2
DOOR 1 DOOR 2
DATA 1 Red LED 1 Green LED 1 Buzzer 1 DATA 0 +12V DC DATA 1 Red LED 2 Green LED 2 Buzzer 2 DATA 0 +12V DC
Com. Relay 1 N.O. Relay 1 N.C. Relay 1 Lock output 1
Com. Relay 2 N.O. Relay 2 N.C. Relay 2 Lock output 2 Door Contact 1 REX 1 +12V DC Door Contact 2 REX 2 +12V DC Tamper Switch
+24V DC
-
+12V DC
-
+12V DC
A+
B
-
Input 1
Input 2
Output 1
+12 V DC
Output 2
ETHERNET
24V DC INPUT
BATTERY
MODULE TYPE
SYSTEM STATUS
Two Extra Inputs
(4 using zone
doubling)
See “Recommended Wiring” section for more information on wiring type, size, and maximum length.
