ETHERNET

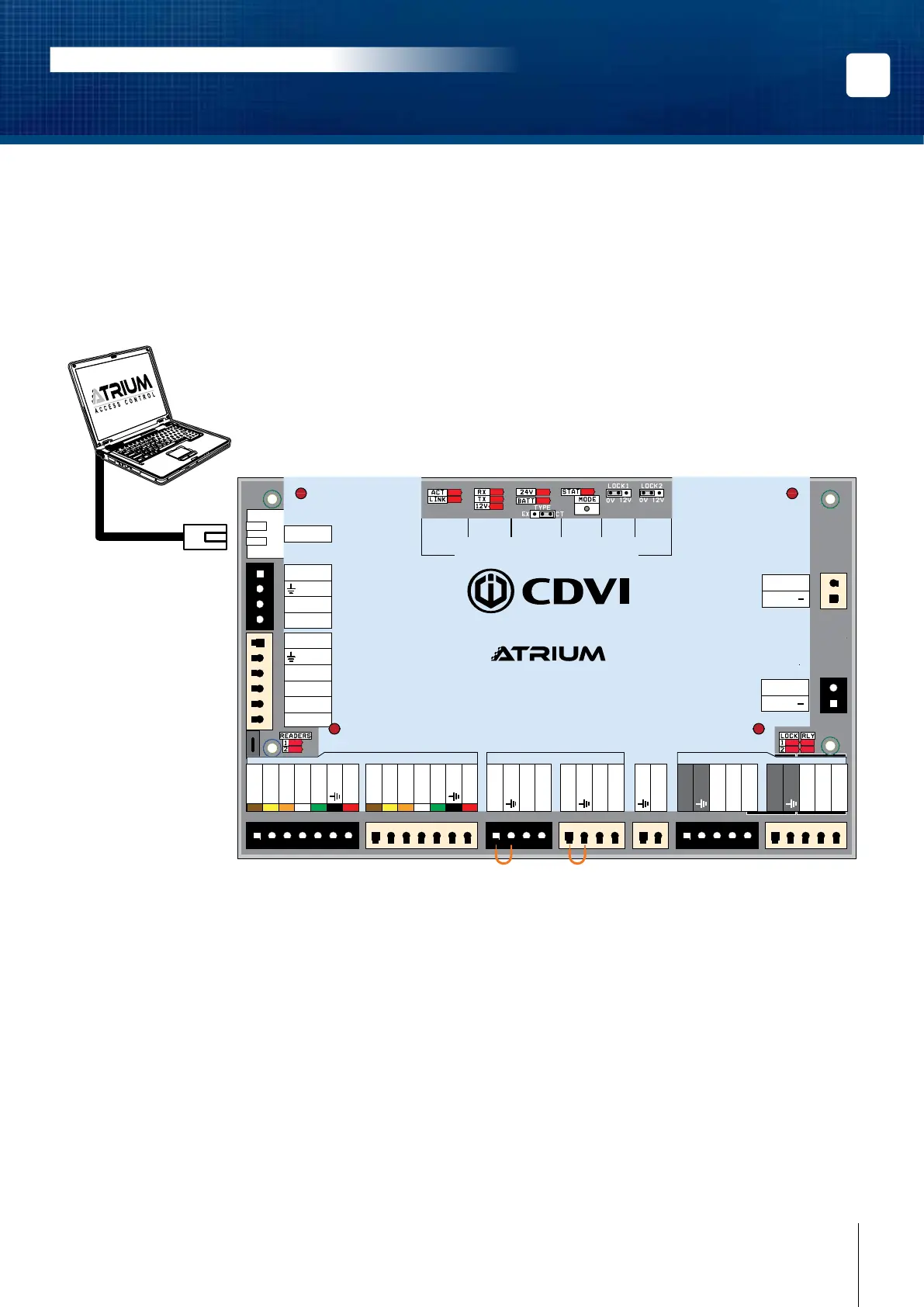

The ATRIUM A22 provides a 10/100Mbps Ethernet port to allow direct connection from a local PC or
interconnect to an existing LAN/WAN. Connect the Ethernet 10/100 Mbps port of the ATRIUM A22 to a LAN or
WAN network using an UTP cable (maximum 100m (300ft)).
Ethernet @ 10/100 Mbps
Maximum 100m (300ft.)
INPUTS/
OUTPUTS
RS485
LOCAL
BUS
BATTERY
(12V DC)
INPUT
POWER
SUPPLY
ETHERNET
LOCAL
BUS
STATUS
LOCK 1
SETTING
LOCK 2
SETTING
READERS INPUTS
LOCKS
A22
2-Door Web-Based IP Module
DOOR 1
DOOR 1
DOOR 2
DOOR 2
DOOR 1 DOOR 2
DATA 1 Red LED 1 Green LED 1 Buzzer 1 DATA 0 +12V DC DATA 1 Red LED 2 Green LED 2 Buzzer 2 DATA 0 +12V DC
Com. Relay 1 N.O. Relay 1 N.C. Relay 1 Lock output 1
Com. Relay 2 N.O. Relay 2 N.C. Relay 2 Lock output 2 Door Contact 1 REX 1 +12V DC Door Contact 2 REX 2 +12V DC Tamper Switch
+24V DC
-
+12V DC
-
+12V DC
A+
B
-
Input 1
Input 2
Output 1
+12 V DC
Output 2
ETHERNET
24V DC INPUT
BATTERY
MODULE TYPE
SYSTEM STATUS
