CDV-DDP-F, CDV-DDP-RH
2EASY 2-wire Video Door Station with Built-in Reader

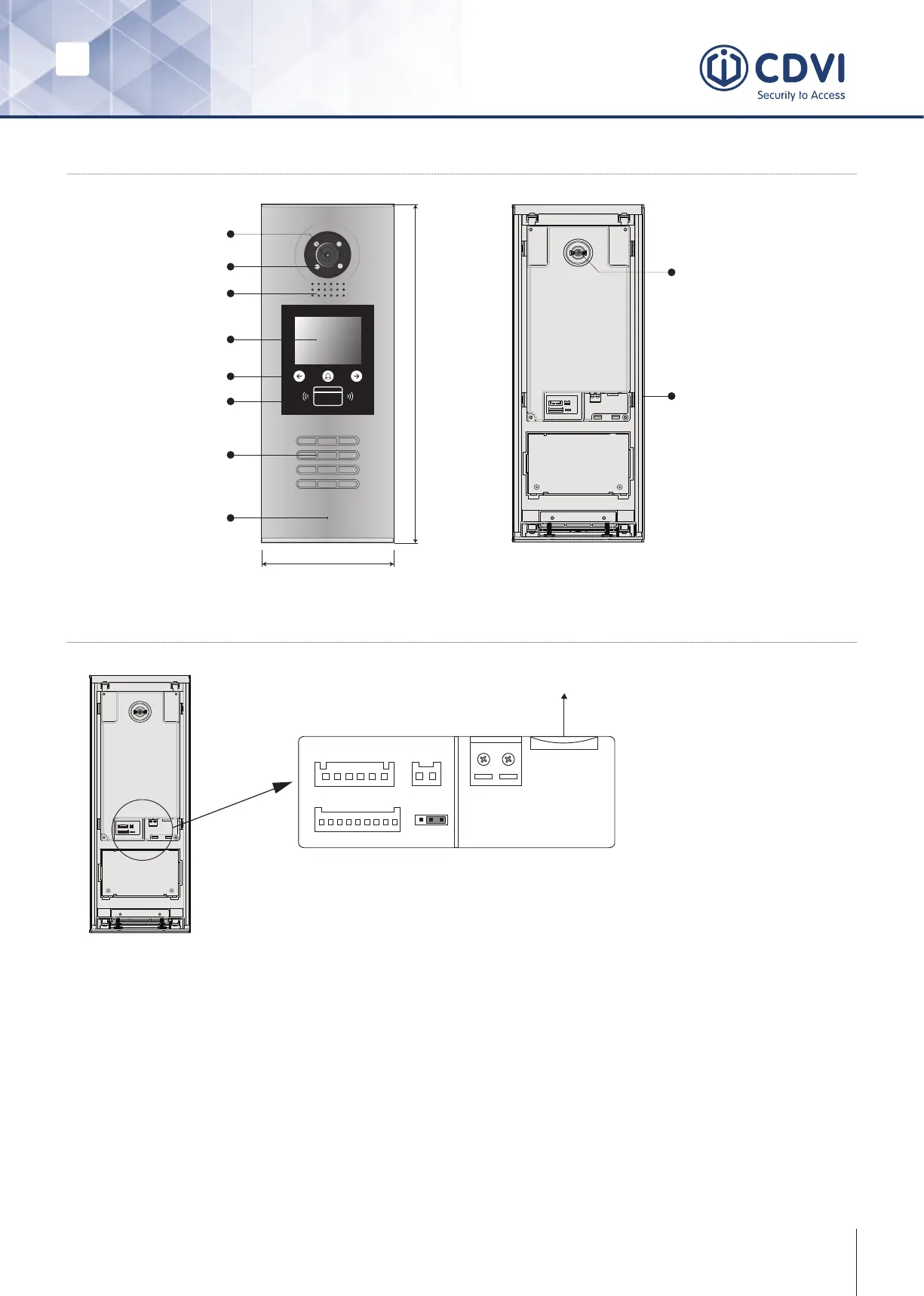

2] PARTS AND FUNCTIONS
3] TERMINAL DESCRIPTIONS
Camera Lens
Night View LED
Speaker
Adjustable Camera
Connectiong Port
With rainy cover
350 mm
128 mm
1 2 3
654
7 8 9
#0
*
LCD Screen
ID Card Window
Digital Keypad
Microphone
12
3
Touch Key
RF CARD
L1
T/R -
CN-LK
T/R+
J/KMB JP-LK
Bus
SD Card Slot
EB+ EB- N.O LK+ LK-
+12V
L2
12
3
12
3
• 12V: +12Vdc power output.
• LK-(GND): Power ground.
• LK+(COM): Common contact of the relay.
• NO: Normally open contact of the relay.
• EB+/EB-: Exit button connection port.
• JP-LK: For electric lock safety type setting.
• T/R-: USB-RS485 communication terminal negative.
• T/R+: USB-RS485 communication terminal negative.
• BUS (L1,L2): No polarity BUS line.
Connecting Port
