CDV-DDP-F, CDV-DDP-RH
2EASY 2-wire Video Door Station with Built-in Reader
5] ELECTRIC LOCK CONNECTION
1. The rated power of the lock must be less than 12Vdc 300mA when using internal
power supply mode.
2. The GND must connect to the negative of the lock, and the COM connect to the
positive.
3. Jumper set to 1-2 position for Power-off-to-Unlock Fail Safe type (Normally closed);
Jumper set to position 2 & 3 for Power-on-to-Unlock Fail Secure type (Normally
open).
4. If different unlocking time is required, change the Unlock Timing on the door station.
(See Debug State p. 8 / Press [1#] --> [1] Installer Set up --> [2] Unlocking time.)
1 2 3
4
7
5 6

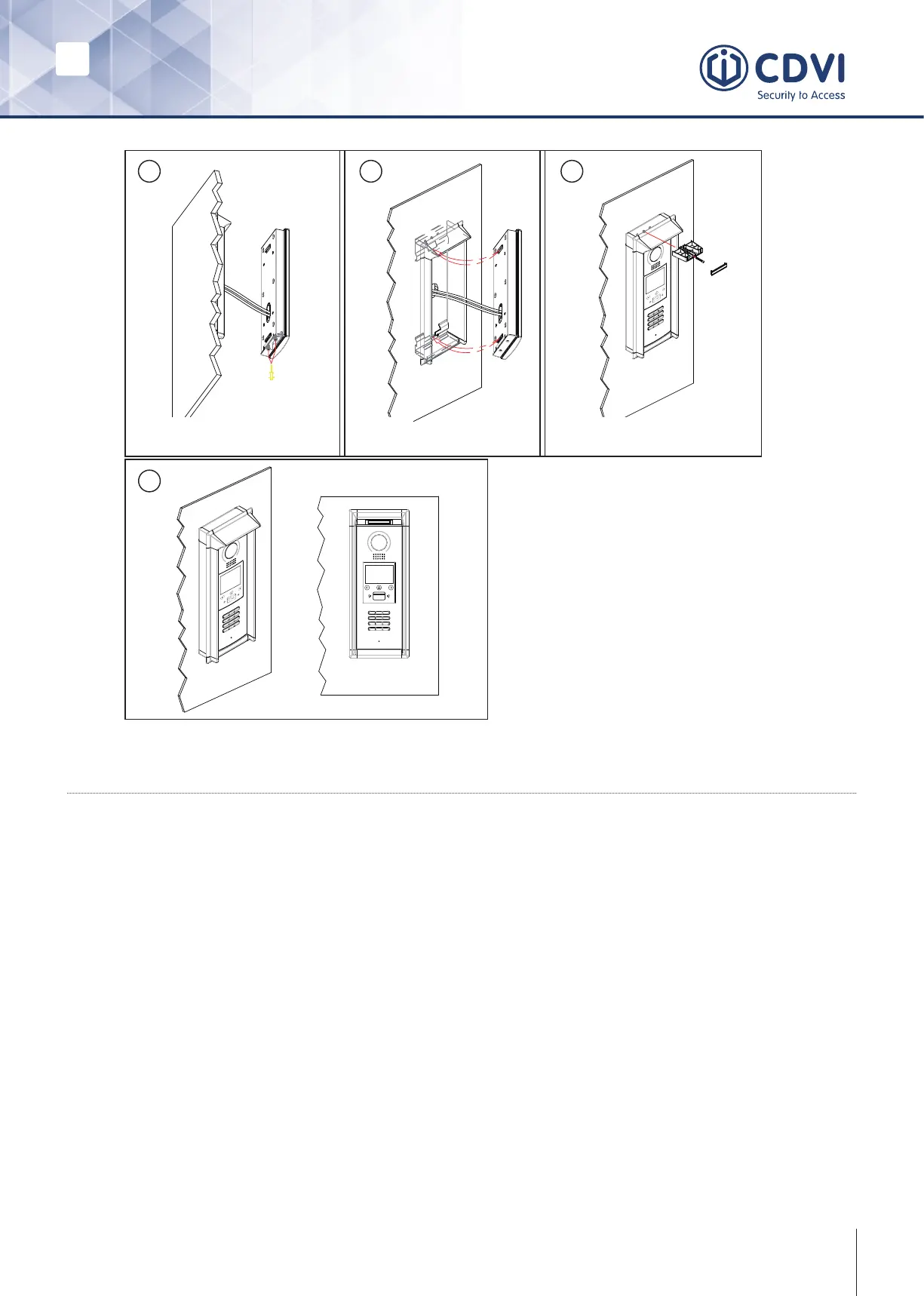

Drill a hole and attach the
rainy cover to it
Attach screws to fix the
metal box
Attach the unit to the rainy
cover correctlly
Attach the baffle to protect
the unit from droping
The last view for all mounting
The view for rainy
cover after mounted
Adjust the camera angle and attach the
metal to the panel and wire correctly.
Camera
angle
1
47
m
m
3
95
m
m
4
2mm
RF CARD
1 2 3
4
7
5 6
Drill a hole and attach the
rainy cover to it
Attach screws to fix the
metal box
Attach the unit to the rainy
cover correctlly
Attach the baffle to protect
the unit from droping
The last view for all mounting
The view for rainy
cover after mounted
Adjust the camera angle and attach the
metal to the panel and wire correctly.
Camera
angle
1
47
m
m
3
95
m
m
4
2mm
RF CARD
Attach the unit to the surface housing
correctly.
Screw the back box to the panel.
Attach the bafe to protect the unit
from lifting.
Door Lock Controlled with Internal Power
Using the power of the system, the electric lock can be connected directly to the door
station without an additional power supply.
Note: The door station can only output 12Vdc at 300mA, therefore limiting the types
of lock that can be connected.

CDVI CDV-DDP-F Specifications

General

Brand	CDVI
Model	CDV-DDP-F
Category	Intercom System
Language	English
