CDVI CDV-DDP-F User Manual

EN EN
6
CDV-DDP-F, CDV-DDP-RH
2EASY 2-wire Video Door Station with Built-in Reader

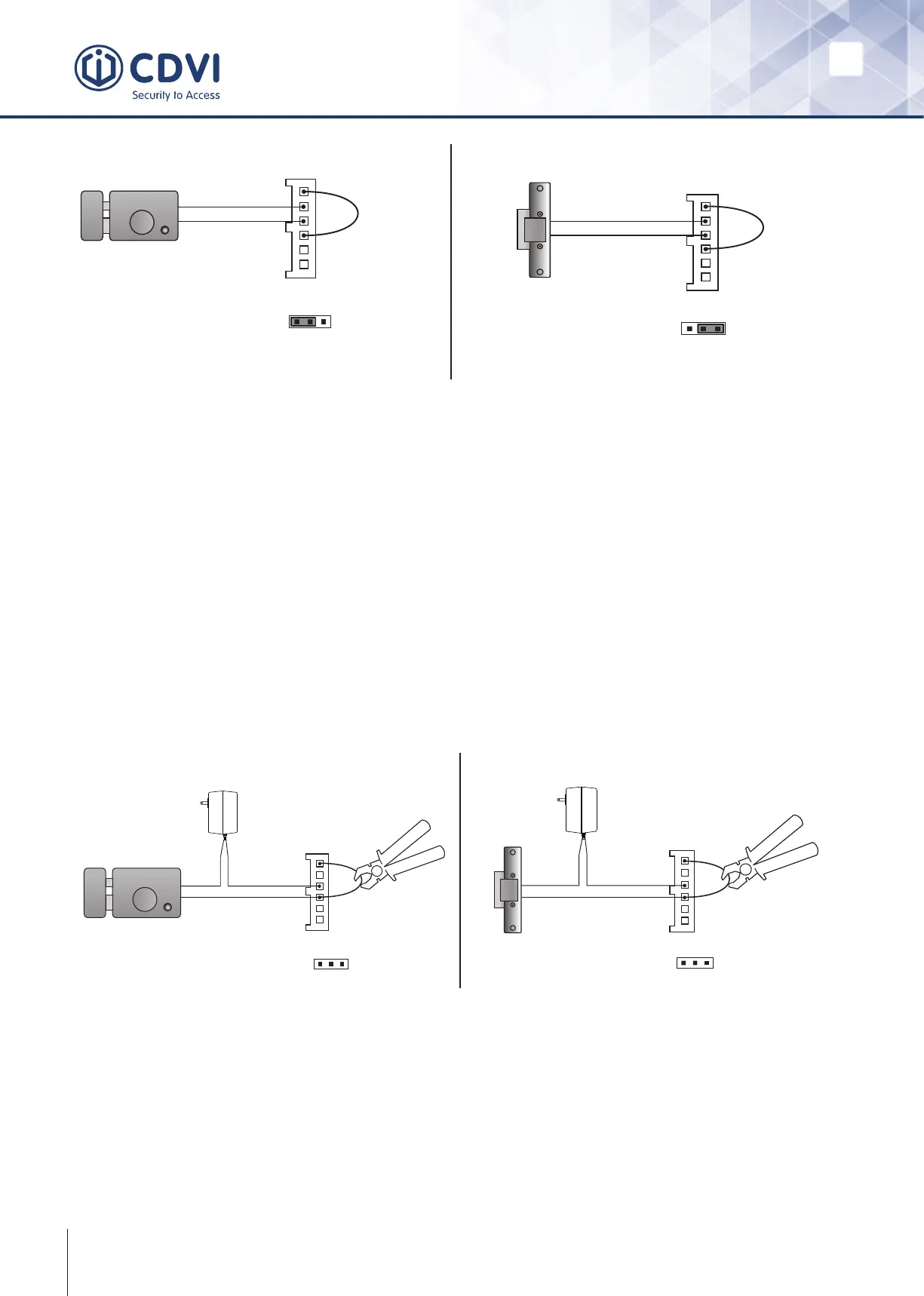

FAIL SAFE Lock FAIL SECURE Lock
JP_LK
12V 300mA
Jumper set to 2-3 position
+
-
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
1 2 3
set to Normally open on the
Unlock Relay mode
12V 300mA
Jumper set to 1-2 position
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
+
-
set to Normally Closed on the
Unlock Relay mode
JP_LK
1 2 3
Door Lock Controlled with External Power
Note: When the electric lock is over 12 Vdc or higher than 300mA, an additional power
supply for the lock is required.
1. The power supply for the lock must be less than 48Vdc 1.5A.
2. The Jumper must be removed when using external power supply.
3. The default setting is:
• Power-on-to-Unlock Fail Secure type (Normally open)
• If using Power-off-to-Unlock (Fail Safe), change the Unlock Relay mode to
Normally closed.
4. If a different unlock time is required, change the unlock time at the door station.
(See Debug State p. 8 / Press [1#] --> [1] Installer Set up --> [2] Unlocking time.)
FAIL SAFE Lock
FAIL SECURE Lock
+
+
-
-
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
Remove the Jumper
set to Normally Open on the
Unlock Relay mode (default)
JP_LK
1 2 3
Note: Cut off this line when
using external power supply
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
Remove the Jumper
set to Normally Closed on the
Unlock Relay mode
+
+
-
-
JP_LK
1 2 3
Note: Cut off this line when
using external power supply
