CDVI Digicode KCIN User Manual

7
D - 693 : Remote electronics
P3 jumper allows
to the user to modify
its own Pin code.
To enable this feature
put the jumper on.
(see Programming
section in the
instruction manual)
P2 jumper resets the key-
pad to factory default
values. Remove the power
from the keypad then put
the jumper.
(see Programming section
in the instruction manual)

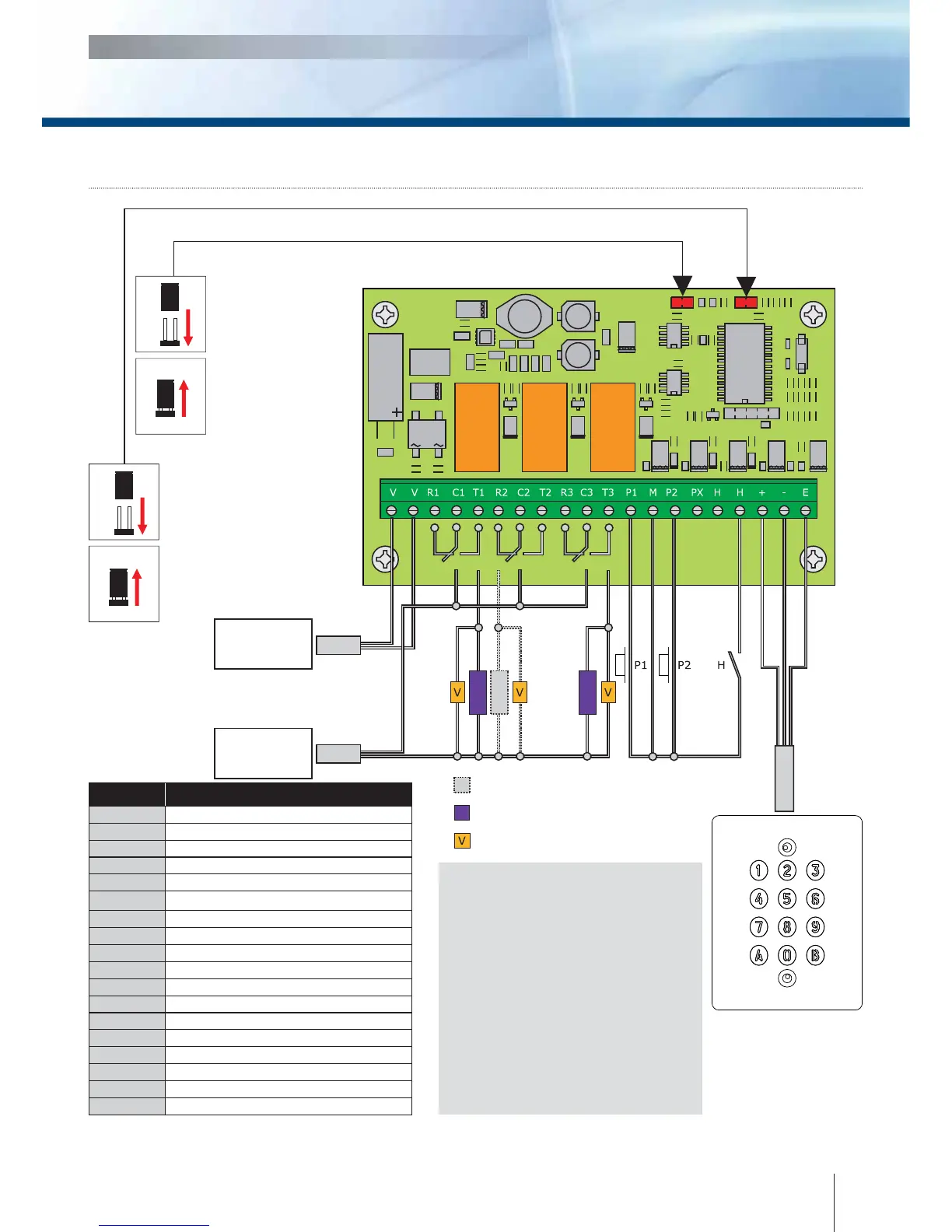

7] WIRING DIAGRAM KCIN 3-RELAY OUTPUTS
Request-to-Exit inputs
P1 request-to-exit input activates relay 1.
P2 request-to-exit input activates relay 2.
Latch or toggled output.
H input can be used with
a timer to enable free access
by pressing on any digit key
on the keypad.
When the contact is open
then the request-to-enter is disabled.
When the contact is closed then press
any key on the keypad to enter.
KCIN
Illuminated weatherproof Keypad with Remote Electronics 1, 2 or 3 relays
INSTALLATION MANUAL
Power supply
12 to 24VAC
or 12 to 48VDC
H (Open)
KCIN Keypad mode
H (Closed)
KCIN Request-to-
Enter mode
Power supply
According to lock
specifi cations
White
Brown
Green or blue
Varistor
P2
P3
Relay
1
Relay
2
Relay
3
Outputs Description
V
Input voltage 12V to 24VAC or 12V to 48VDC
V
Input voltage 12V to 24VAC or 12V to 48VDC
R1
N/C contact relay 1
C1
Common relay 1
T1
N/O contact relay 1
R2
N/C contact relay 2
C2
Common relay 2
T2
N/O contact relay 2
R3
N/C contact relay 3
C3
Common relay 3
T3
N/O contact relay 3
P1
Request-to-exit input relay 1
M
Common of inputs
P2
Request-to-exit input relay 2
H
Timer Contact
+
White wire from keypad
-
Brown wire from keypad
E
Green or Blue wire (illumination)
7
cdvi.com
cdvigroup.com
Fail safe lock
Fail secure lock
