2
HIGH RESISTANCE
TO VANDALISM
IP52
CE certication
PROFIL100EC
Illuminated Mullion Weatherproof Keypad with Remote Electronics
INSTALLATION MANUAL
Remote electronics, supplied
with the PROFIL100EC keypad
IP64
-25°C to +70°C
-25°C to +70°C
CE certication
Environmental tests:
vibrations
WEEE & RoHS
Mounting plate
for remote
electronics box
Wiring
sealed cap
Varistor
(M5x8
Diax
®
screw)
T20 Diax
®
Spanner
Plastic
anchors
(M4x30)
mounting
screws
Remote electronics
1 2 - - - 2 2
PROFIL100EC
- - 1 1 1 2 2

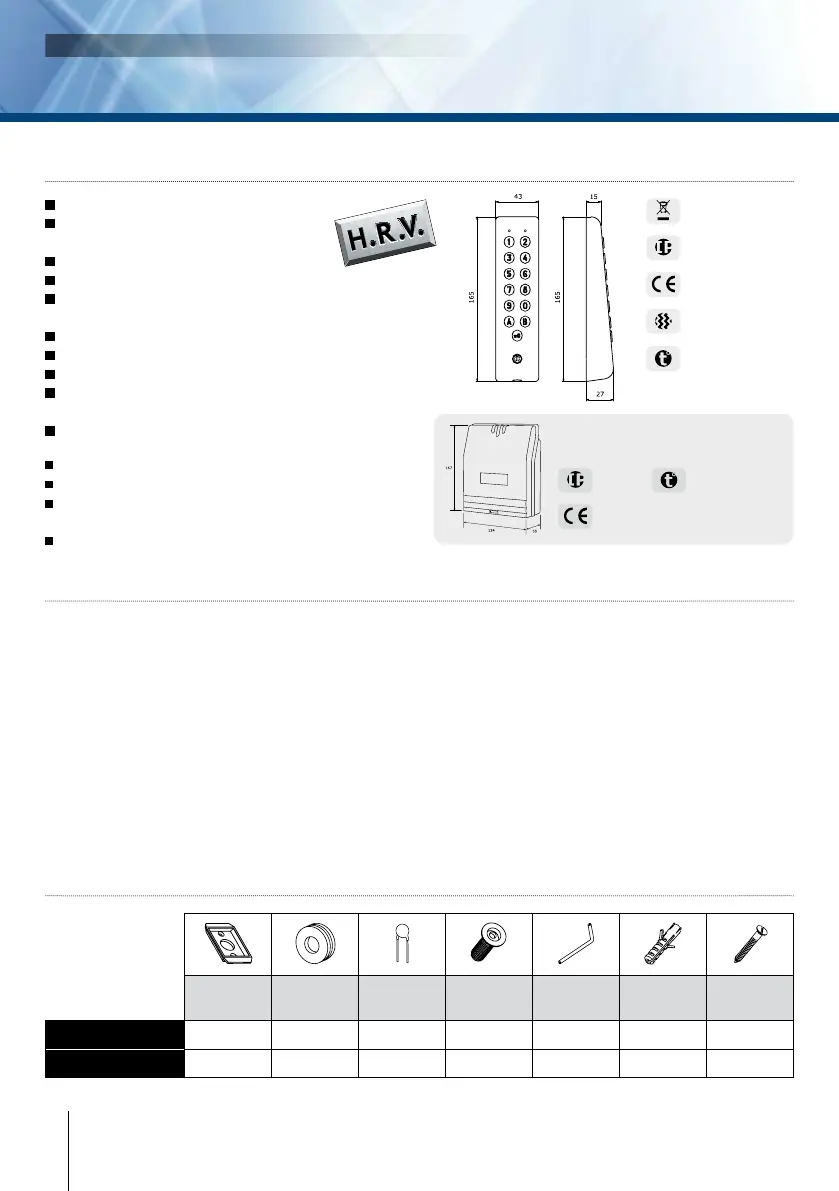

1] PRODUCT PRESENTATION
Stainless steel.
Narrow: Ideal for installation
on an aluminium section.
Backlit.
2 relays.
Recommended for activating
and deactivating your alarm system.
Surface-mount.
Free voltage.
Installation with Diax
®
screws.
PCB of remote electronics
protected with a varnish coating.
100 user codes.
Audible and visual feedback.
Dimensions (L x W x D): 165 x 43 x 27mm.
Power supplies:
12V to 24V ac or 12V to 48V dc.
Consumptions: 30 to 100mA.
3] MOUNTING KIT
2] NOTES & RECOMMENDATIONS
Cable
- The distance between the PROFIL100EC
and the remote electronic can not exceed
more than 10 meters.
- Make sure that the cable is not near by a high
voltage cables (ex: 230V ac).
- Recommended cable between the PROFIL100EC
and the remote electronics: 2 twisted pairs
(4 wires) SYT1 0.8MM.
Mounting recommendations
Mount the keypad on a at surface to avoid
any vandalism and to insure the best mounting.
Security advice
- For security advice reasons, change
the factory default master code.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).
Installation recommendations
To secure the system from back electromagnetic
elds do not forget to mount the varistor
in parallel on the lock.
Recommended power supplies
suitable for the PROFIL100EC
ARD12 (230V input) or BS60 (230V input).
2
