Dual technology: Proximity reader and/
or Digicode
®
keypad.
Wiegand 26, 30 or 44 bit.
Sensitive touch keypad.
PCB sealed in epoxy.
Audible and visual feedback.
Version available in: white or black.
Technology: 125 Khz.
Multi card protocol reader - Marin/HD.
Input voltage: 12V dc.
Consumption: 150mA.

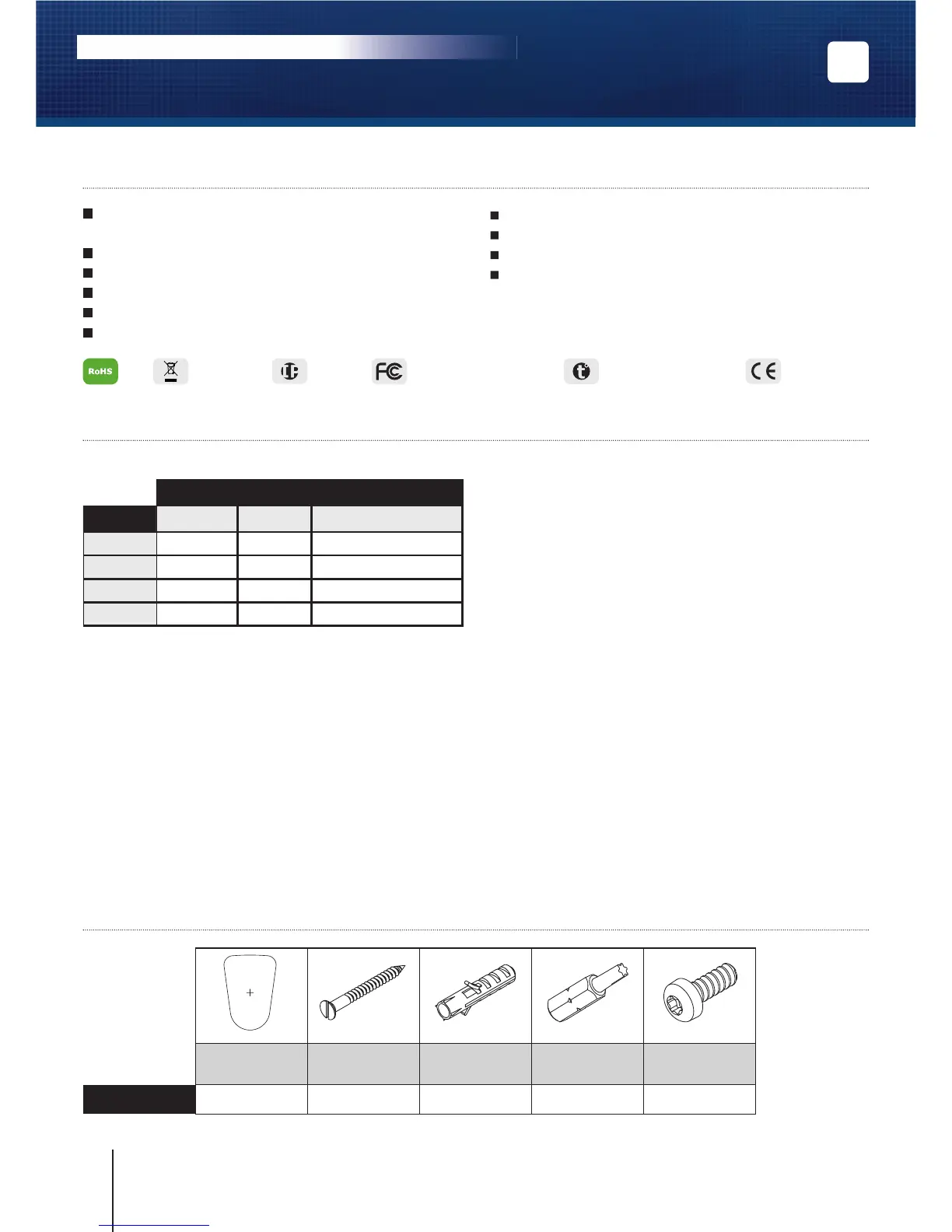

1] PRODUCT PRESENTATION
3] MOUNTING KIT
2] REMINDERS AND RECOMMENDATIONS
Foam seal
3x30
TF screw
S5
Plastic anchor
TORX
®
bit
3x8
TORX
®
screw
SOLARKP RANGE
1 2 2 1 1
CE Certifi cation
Certifi cation FCC CFR 47
part 15 compliance
WEEE IP53 -25°C to +70°C
Operating mode
MODE
SYSTEME KEYPAD PROXIMITY DUAL TECHNOLOGY
TELACCESS
✔ ✔ ✔
TERENA
✔ ✔
-
CENTAUR
✔ ✔ ✔
ATRIUM
✔ ✔
-
Cable
- Programming your installation before installing
products on site.
- The distance between a CENTAUR and ATRIUM
controllers or an INTBUSW reader interface
should not exceed more than 50 meters.
- Make sure that the cable is not near by a high
voltage cables (ex: 230 V AC).
- Recommended cable 2 twisted pairs
SYT1 0.8MM (AWG 20).
Back EMF protection
To secure the system from back electromagnetic
fi elds do not forget to mount the varistor in parallel
on the lock terminals.
Security Advice
- For security reasons, change the factory default
master code.
- When selecting a master code and user code
avoid simple codes (example : 3 4 5 6 7).
Mounting recommendations
Mount the keypad on a fl at surface to avoid
any vandalism and to insure the best mounting.
Recommended power supplies
ARD12 & BS60. These products must be powered
in 12Vdc and the power supply should be
certifi ed EN60950-1:2006/A11:2009 standards
and should be designed to be a low power supply
source.
2
cdvigroup.com
EN
SOLARKPW-SOLARKPB
Dual Technology Digicode
®
/Proximity reader - Wiegand
INSTALLATION MANUAL
