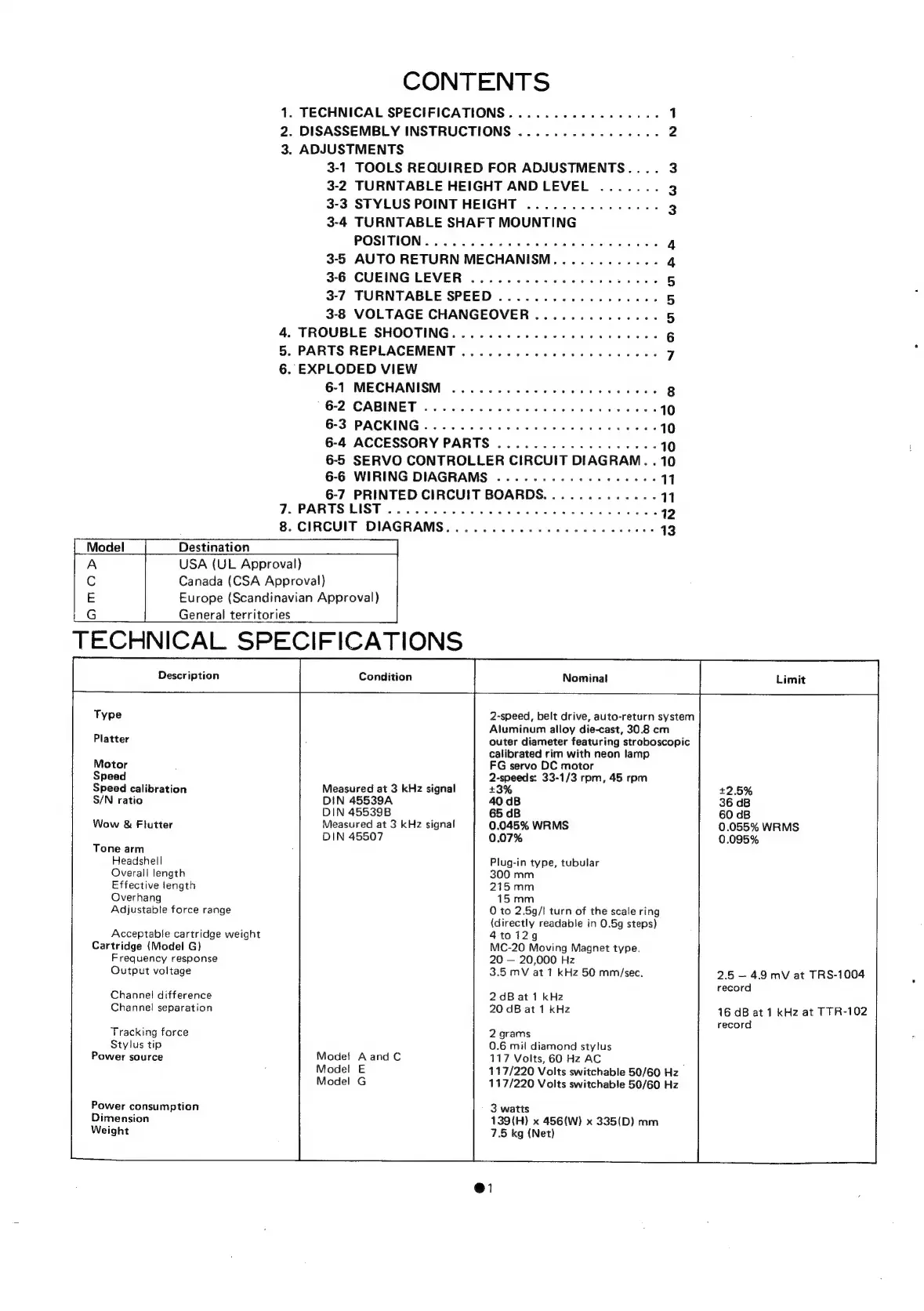

cec BD-5200 - Technical Specifications

CONTENTS
1. TECHNICAL SPECIFICATIONS. ................ 1
2. DISASSEMBLY INSTRUCTIONS ................ 2
3. ADJUSTMENTS
3-1 TOOLS REQUIRED FOR ADJUSTMENTS.... 3
3-2 TURNTABLE HEIGHT ANDLEVEL ....... 3
3-3 STYLUS POINT HEIGHT ............... 3
3-4 TURNTABLE SHAFT MOUNTING
POSITION: icc sts Sein wie ae eaters Ba eS 4
3-5 AUTO RETURN MECHANISM............ 4
3-6 CUEING LEVER ............0 2: eae 5
3-7 TURNTABLE SPEED ................4.. 5
3-8 VOLTAGE CHANGEOVER .............. 5
4. TROUBLE SHOOTING...........-........0-% 6
5. PARTS REPLACEMENT ...............0-22005 7
6. EXPLODED VIEW
6-1 MECHANISM ........-.. 0.020 cee eee 8
“6-2 CABINET... 6 6c cee ee ee et ee ee eee 10
6-3 PACKING .... 2... cece ec eee eee eee 10
6-4 ACCESSORY PARTS .................. 10
6-5 SERVO CONTROLLER CIRCUIT DIAGRAM. . 10
6-6 WIRING DIAGRAMS ............-+++0-- 11
6-7 PRINTED CIRCUIT BOARDS............. 11
To PARTS LIST. ccc escent ee eee Fe eee eles Ae 6 12
8. CIRCUIT DIAGRAMS...............2-0 eee ee 13
Destination
USA (UL Approval)
Canada (CSA Approval)
Europe (Scandinavian Approval)
General territories
2-speed, belt drive, auto-return system
Aluminum alloy die-cast, 30.8 cm
Type
Platter outer diameter featuring stroboscopic
calibrated rim with neon lamp
Motor FG servo DC motor
Speed 2-speeds: 33-1/3 rpm, 45 rpm
Speed calibration Measured at 3 kHz signal +3% +2.5%
S/N
ratio
DIN
45539A
40
dB
36
dB
DIN
45539B
65
dB
60
dB
Wow
&
Flutter
Measured
at
3
kHz
signal
0.045%
WRMS
0.055%
WRMS
DIN
45507
0.07%
0.095%
Tone arm
Headshell
Plug-in type, tubular
Overall length 300 mm
Effective length 215mm
Overhang 15mm
Adjustable force range 0 to 2.5g/I turn of the scale ring
(directly readable in 0.5g steps)
4to1i2g
MC-20 Moving Magnet type.
20 — 20,000 Hz
3.5 mV at 1 kHz 50 mm/sec.
Acceptable cartridge weight
Cartridge (Model G)
Frequency response
Output voltage
2.5 —4.9 mV at TRS-1004
record
2 dB at 1 kHz
20 dB at 1 kHz
Channel difference
Channel separation
16 dB at 1 kHz at TTR-102
record
Tracking force
Stylus tip
Power source
2 grams
0.6 mil diamond stylus
117 Volts, 60 Hz AC
117/220 Volts switchable 50/60 Hz
117/220 Volts switchable 50/60 Hz
Model A and C
Model E
Model G
Power consumption
Dimension
Weight
3 watts
139(H) x 456(W) x 335(D) mm
7.5 kg (Net)
@1
