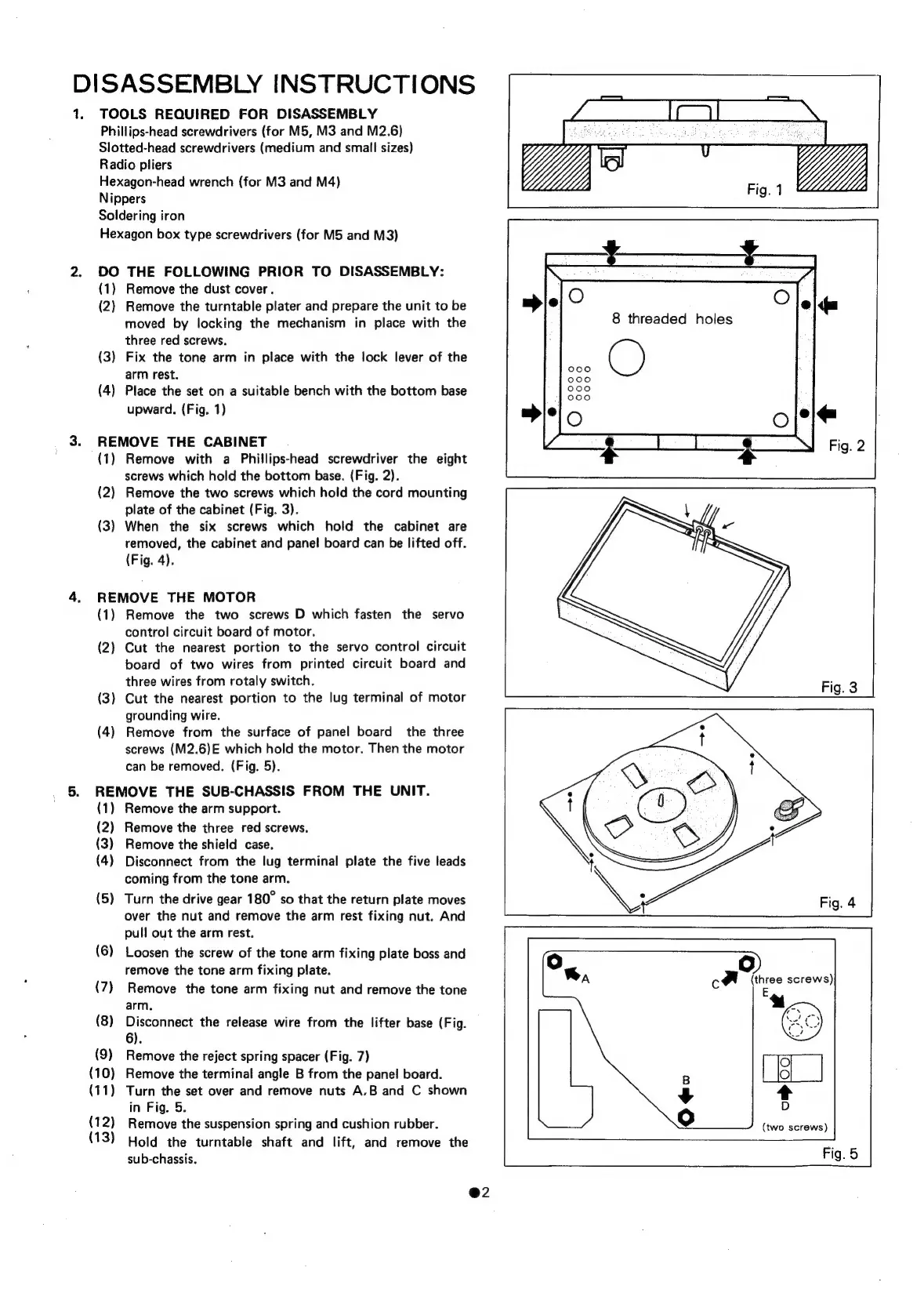

DISASSEMBLY

INSTRUCTIONS

1

TOOLS

REQUIRED

FOR

DISASSEMBLY

Phillips-head

screwdrivers

(for

M5,

M3

and

M2.6)

Slotted-head

screwdrivers

(medium

and

small

sizes)

Radio

pliers

Hexagon-head

wrench

(for

M3

and

M4)

Nippers

Soldering

iron

Hexagon

box

type

screwdrivers

(for

M5

and

M3)

DO

THE

FOLLOWING

PRIOR

TO

DISASSEMBLY:

(1)

Remove

the

dust

cover.

(2)

Remove

the

turntable

plater

and

prepare

the

unit

to

be

moved

by

locking

the

mechanism

in

place

with

the

three

red

screws.

(3)

Fix

the

tone

arm

in

place

with

the

lock

lever

of

the

arm

rest.

(4)

Place

the

set

on

a

suitable

bench

with

the

bottom

base

upward.

(Fig.

1)

REMOVE

THE

CABINET

(1)

Remove

with

a

Phillips-head

screwdriver

the

eight

screws

which

hold

the

bottom

base. (Fig.

2).

(2)

Remove

the

two

screws

which

hold

the

cord

mounting

plate

of

the

cabinet

(Fig.

3).

(3)

When

the

six

screws

which

hold

the

cabinet

are

removed,

the

cabinet

and

panel

board

can

be

lifted

off.

(Fig.

4).

REMOVE

THE

MOTOR

(1)

Remove

the

two

screws

D

which

fasten

the

servo

control

circuit

board

of

motor.

(2)

Cut

the

nearest

portion

to

the

servo

control

circuit

board

of

two

wires

from

printed

circuit

board

and

three

wires

from

rotaly

switch.

(3)

Cut

the

nearest

portion

to

the

lug

terminal

of

motor

grounding

wire.

(4)

Remove

from

the

surface

of

panel

board

the

three

screws

(M2.6)E

which

hold

the

motor.

Then

the

motor

can

be

removed.

(Fig.

5).

REMOVE

THE

SUB-CHASSIS

FROM

THE

UNIT.

(1)

Remove

the

arm

support.

(2)

Remove

the

three

red

screws.

(3)

Remove

the

shield

case.

(4)

Disconnect

from

the

lug

terminal

plate

the

five

leads

coming

from

the

tone

arm.

(5)

Turn

the

drive

gear

180°

so

that

the

return

plate

moves

over

the

nut

and

remove

the

arm

rest

fixing

nut.

And

pull

out

the

arm

rest.

(6)

Loosen

the

screw

of

the

tone

arm

fixing

plate

boss

and

remove

the

tone

arm

fixing

plate.

(7)

Remove

the

tone

arm

fixing

nut

and

remove

the

tone

arm.

(8)

Disconnect

the

release

wire

from

the

lifter

base

(Fig.

6).

(9)

Remove

the

reject

spring

spacer

(Fig.

7)

(10)

Remove

the

terminal

angle

B

from

the

panel

board.

(11)

Turn

the

set

over

and

remove

nuts

A,B

and

C

shown

in

Fig.

5.

(12)

Remove

the

suspension

spring

and

cushion

rubber.

(13)

Hold

the

turntable

shaft

and

lift,

and

remove

the

sub-chassis.

@2

t

D

(two

screws)
