13
PUMP WITH STANDARD SEAL CHAMBER PH2111
Part # Part Name
3 Impeller
5 Casing
5A Casing Drain Plug
5D Casing Capscrew*
10 Shaft Sleeve*
10K Sleeve Key
13 Seal Chamber Gland
14 Gland Stud
15 Gland Nut
17 Lantern Ring*
22 Casing Back Cover
22A Back Cover to Bearing
Housing Capscrew*
25 Radial Bearing*
25A Thrust Bearing*
26 Bearing Housing
28 Bearing End Cover*
28A Bearing End Cover Capscrew*
28B End Cover Adjusting Screw*
28C Adjusting Screw Locking Nut*
29 Pump Shaft
75A Tapered Retaining Ring*
75B Large Tapered Retaining Ring*
76 Labyrinth Seal – Front*
76A Labyrinth Seal – Back*
77 Casing Gasket
77A Impeller Gasket*
77B End Cover Gasket*
80 Vent*
83 Motor Support (C Face)
95A Mechanical Seal Stationary
95B Mechanical Seal Rotary
109 Bearing Housing Oil Cooler

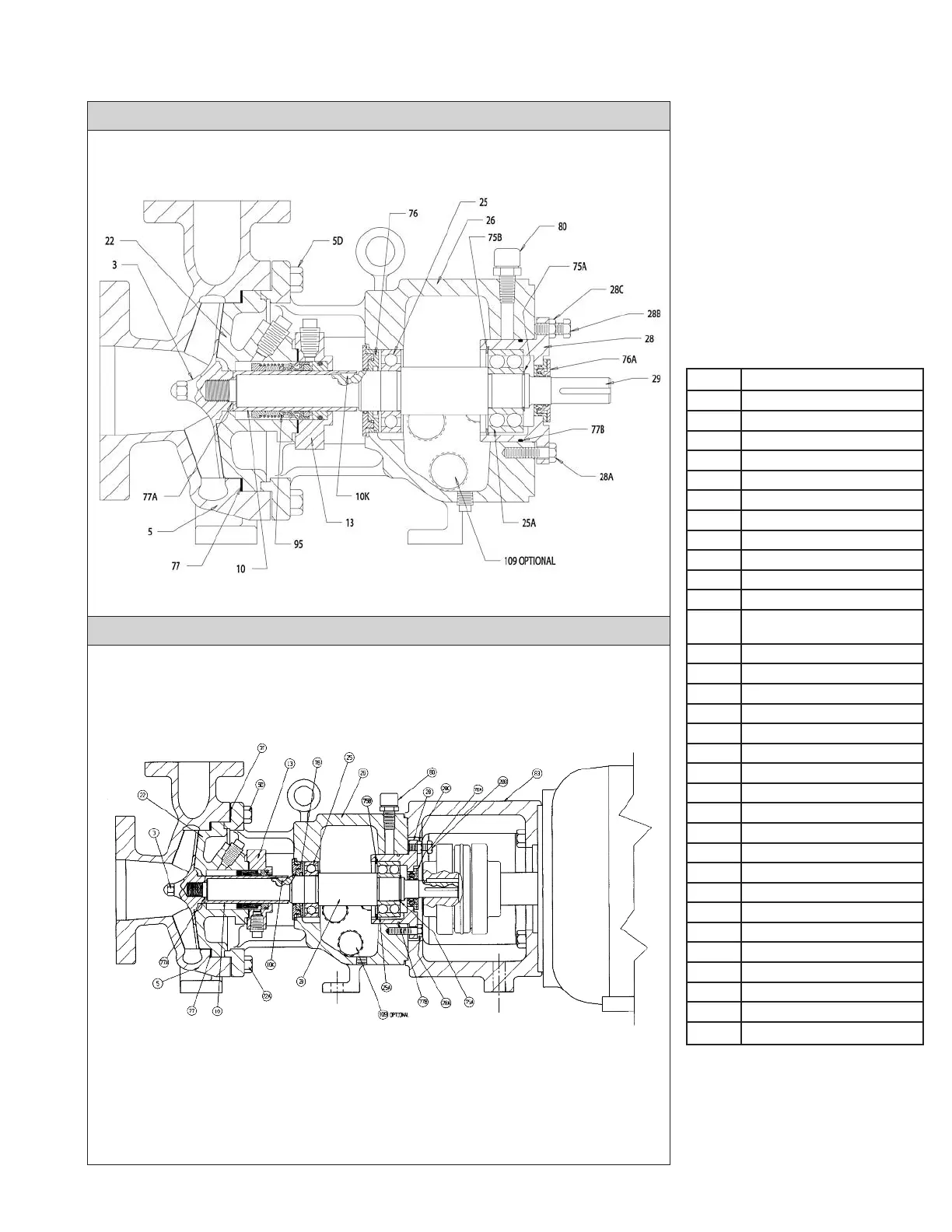

Section Drawing
#01950H
PUMP WITH STANDARD SEAL CHAMBER PH2111 AND OPTIONAL “C” FACE MOTOR SUPPORT
Section Drawing
#01950J
* Denotes parts that are interchangeable in all
pH2110 series pumps.
pH2111 Pump with Standard Seal
Chamber (no jacketing)
pH2112 Pump with Jacketed Seal Chamber
pH2114 Pump with Jacketed Seal Chamber
and Bearing Housing Oil Cooler
pH2116 Pump with Large Bore Seal Chamber
pH2117 Pump with Jacketed Seal Chamber
and Jacketed Casing
pH2118 Pump with Jacketed Seal Chamber,
Jacketed Casing, and Bearing
Housing Oil Cooler
PARTS LIST
PUMP DESIGNATION CODE FOR PH2110
